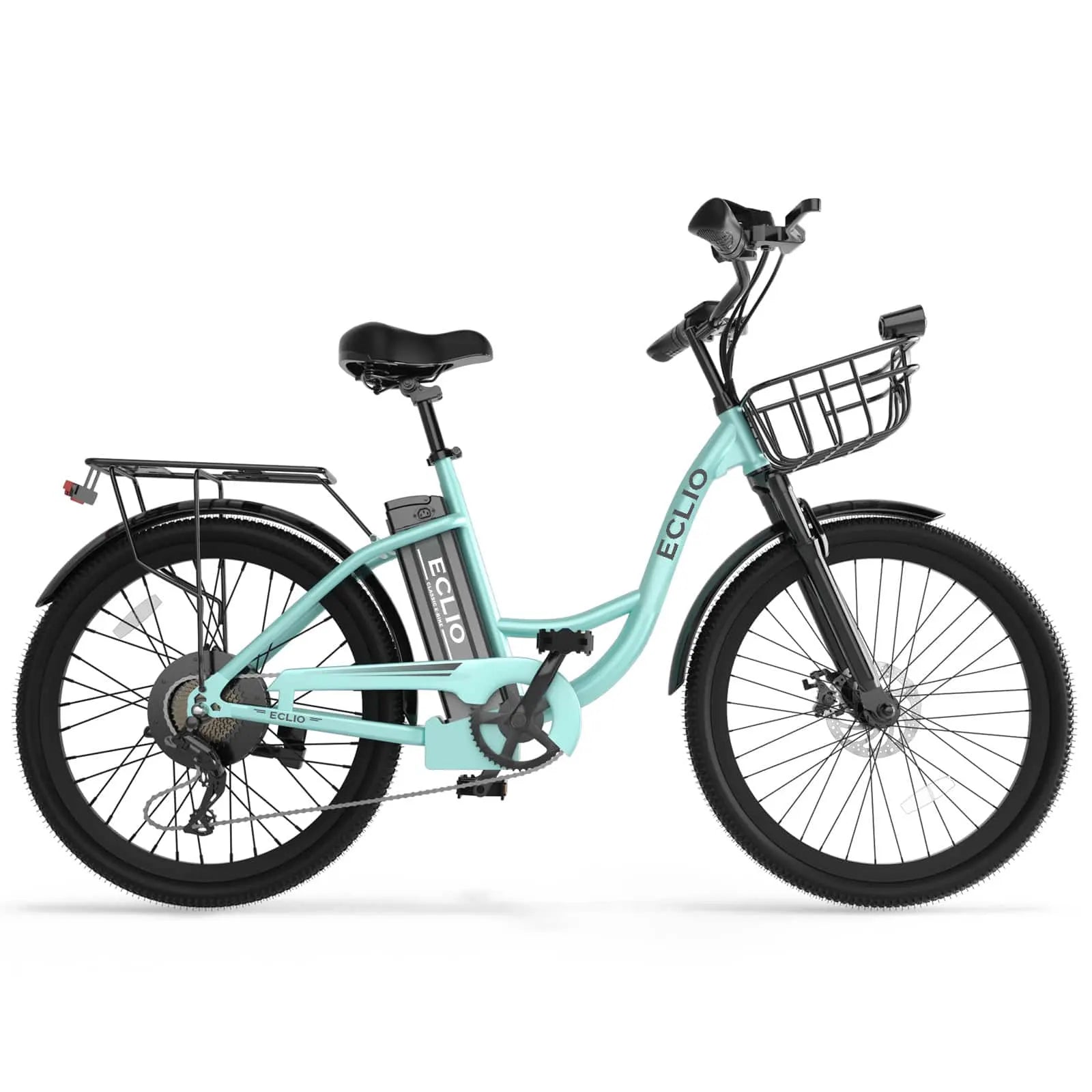

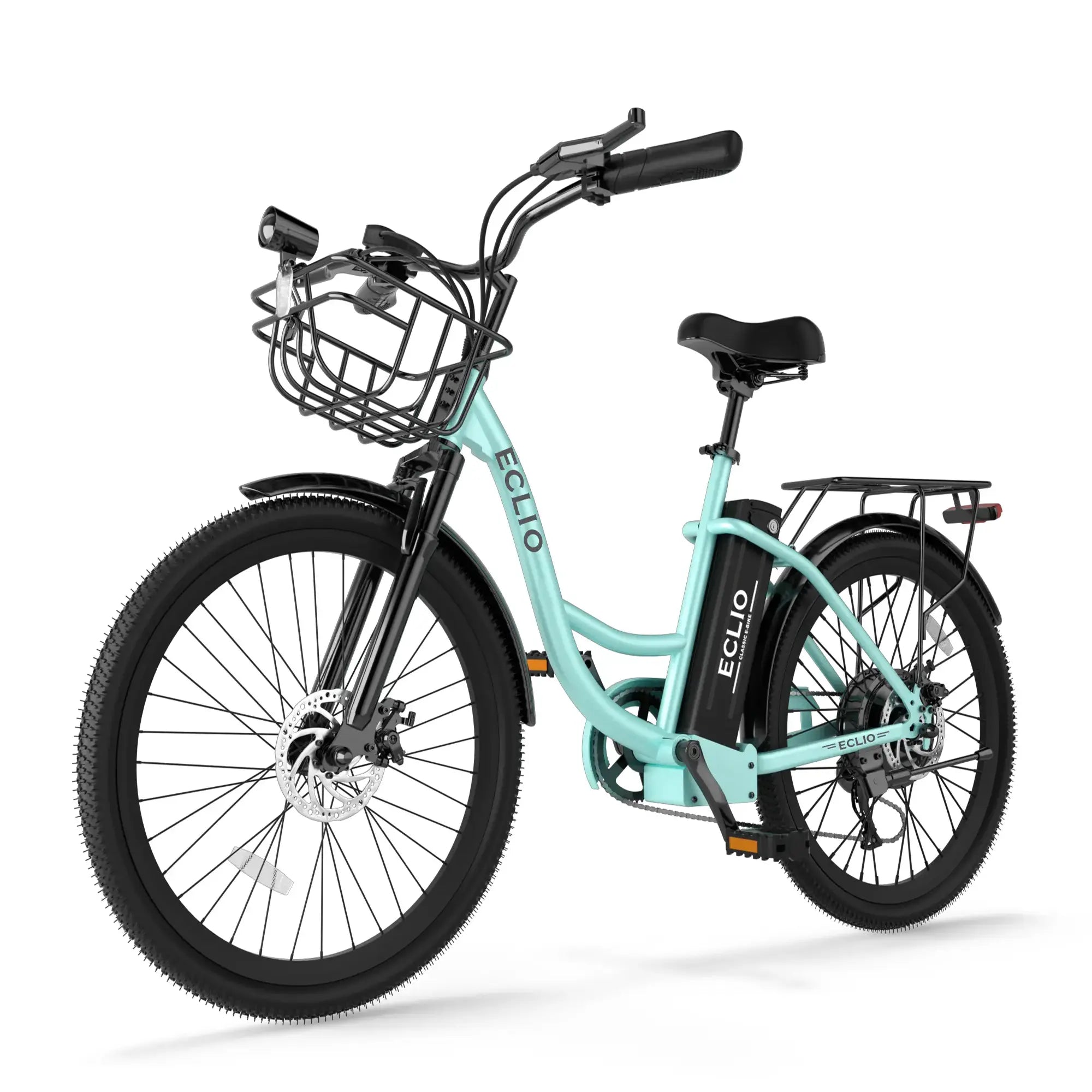

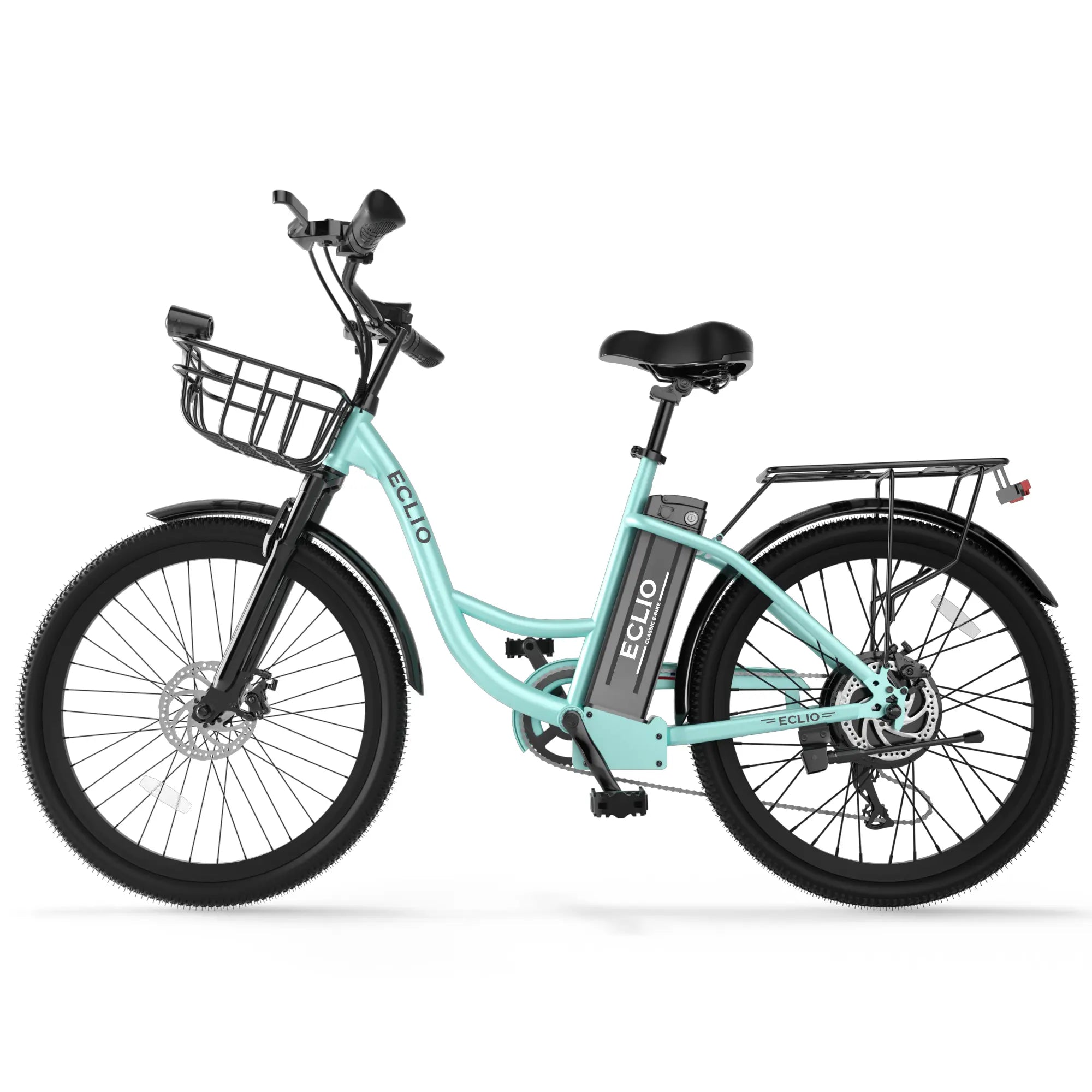

ECLIO C01 Pro City Cruiser Electric Bike
| 800W Motor | 28 MPH Top Speed | Up to 50 Miles | NFC Smart Unlock
Your Daily Ride, Elevated
this bike is designed for effortless, relaxed rides around town or through your neighbourhood. Comfort meets style in every detail.
Your Daily Ride, Elevated
this bike is designed for effortless, relaxed rides around town or through your neighbourhood. Comfort meets style in every detail.
Not Only the Green

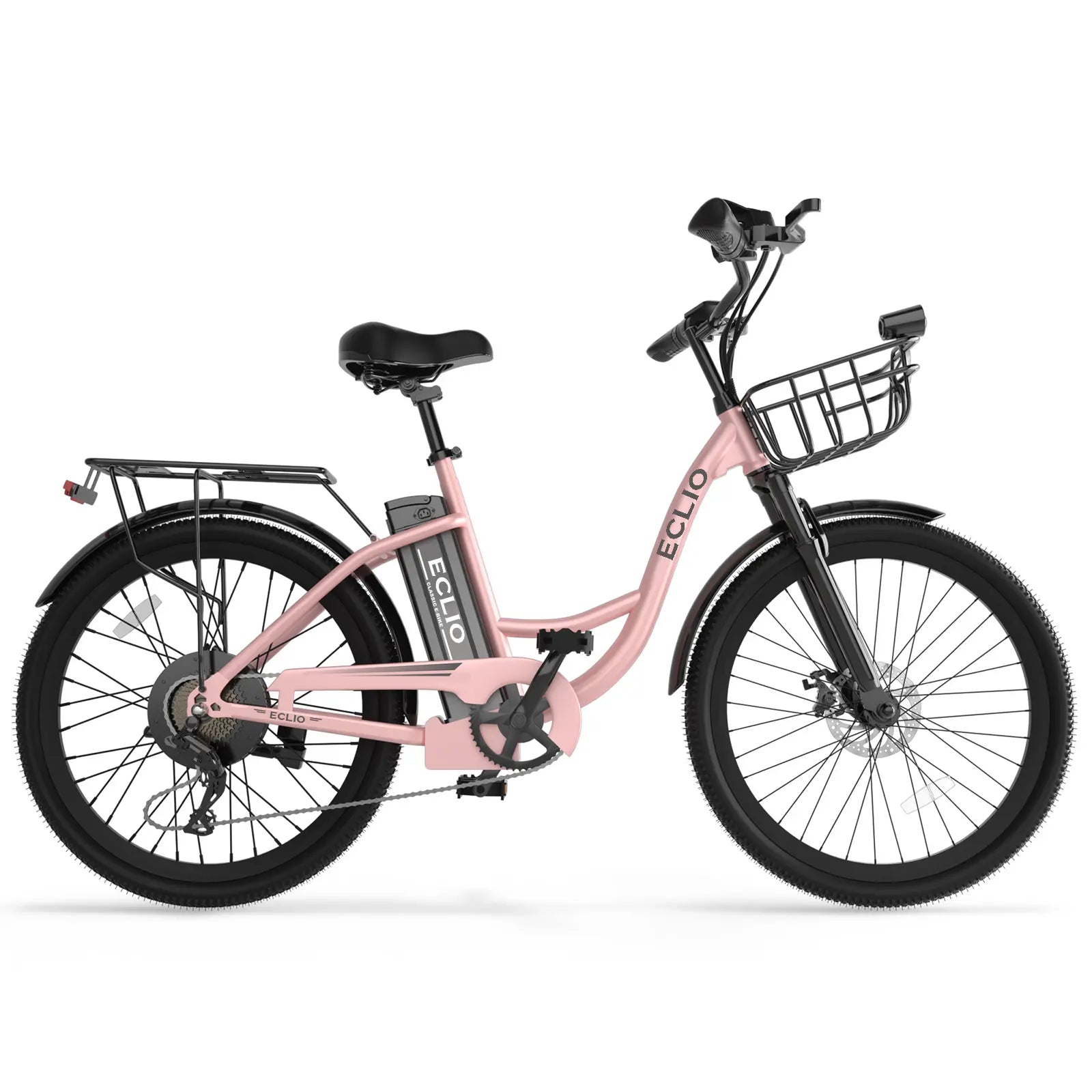

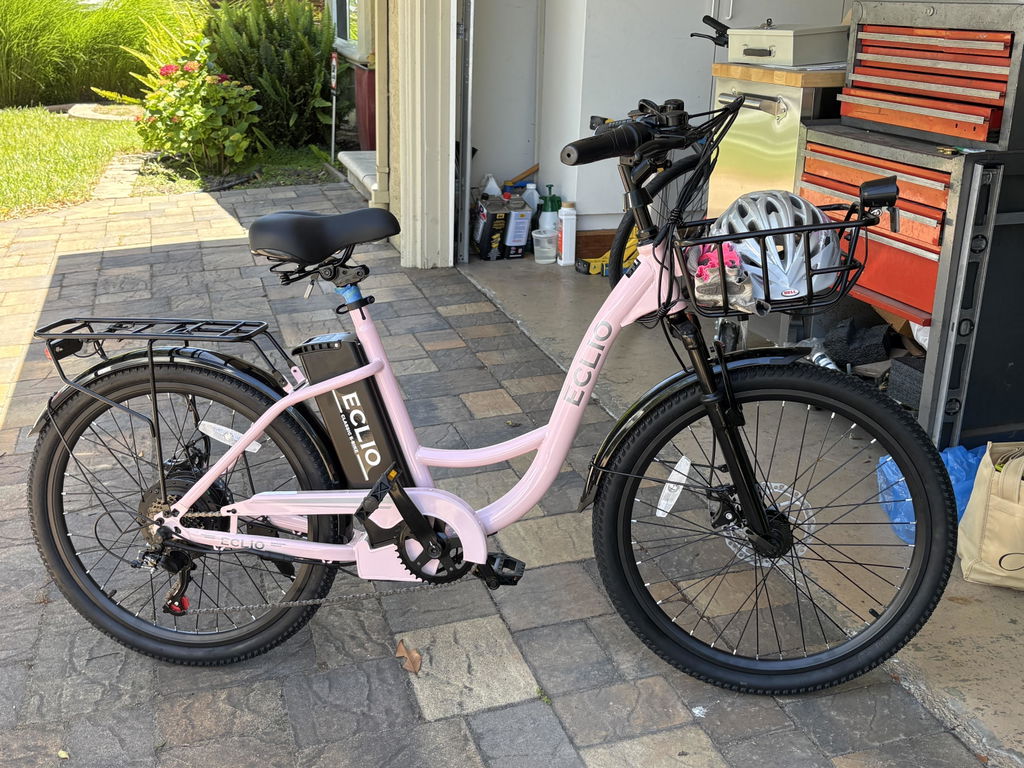

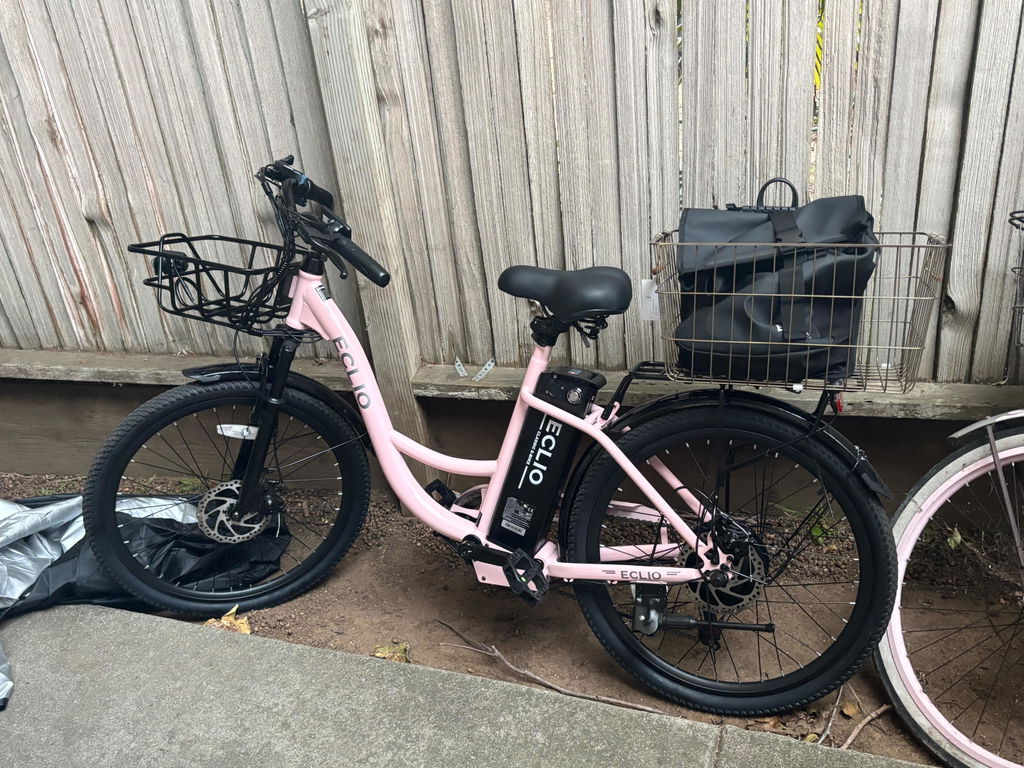

C01 Pro also comes in soft pink, allowing you to pick the colour that suits your style. With smooth, flowing lines and a graceful silhouette.
Not Only the Green
C01 Pro also comes in soft pink, allowing you to pick the colour that suits your style. With smooth, flowing lines and a graceful silhouette.
Every Detail, Engineered for Excellence
How-to Video
The Eclio C02 arrives mostly pre-assembled for quick and easy setup. Make a few adjustments, charge the battery, and you’re ready to ride. For help, refer to the installation video or contact Eclio support.
ELECTRONICS
Motor
800W Peak Rear Hub Motor (65 Nm Torque)
Sensor
Cadence Sensor

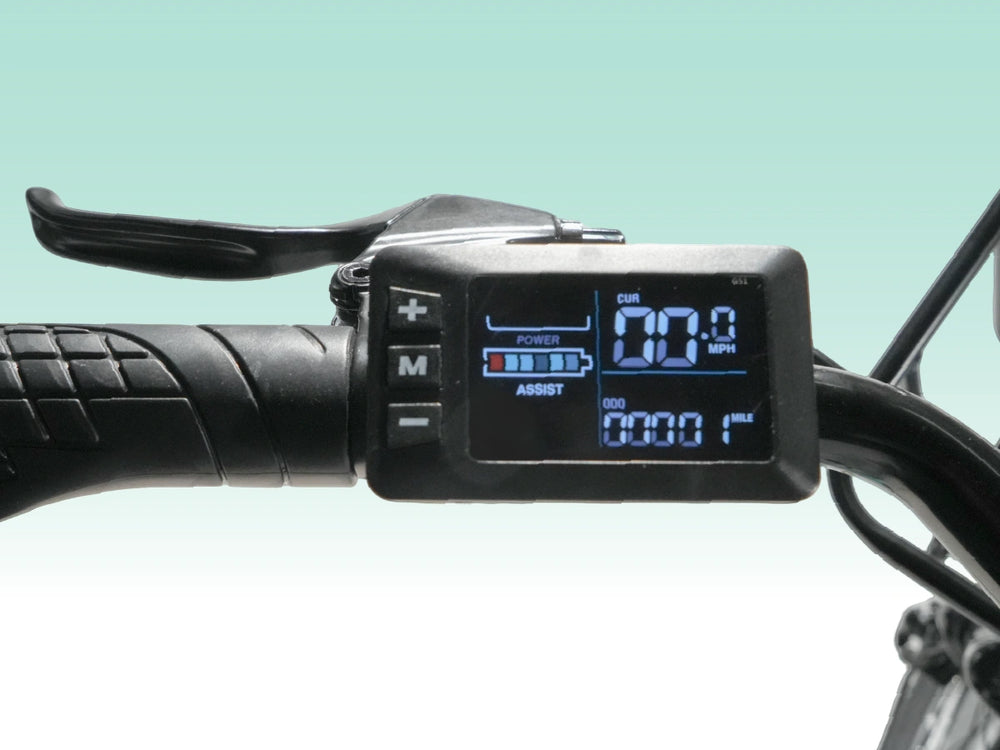

Display
2.2' LCD Display
Battery
48V 13Ah, 624Wh, IPX5 Lithium-ion Battery.
Controller
48V Controller with 9 MOSFETs
Lights
55 Lux LED Head Light
PERFORMANCE
Default Max Speed
20 mph*The motor will stop giving assist at the stated top speed. This limit is set in accordance with local regulations.
Adjustable Max Speed
28mph
Throttle Range
30 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Pedal Assist Range
Up to 50 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Climbing Ability
14°. The actual performance would depend on therider's physical strength.
COMPONENTS
Frame
Built with a high-carbon steel frame.

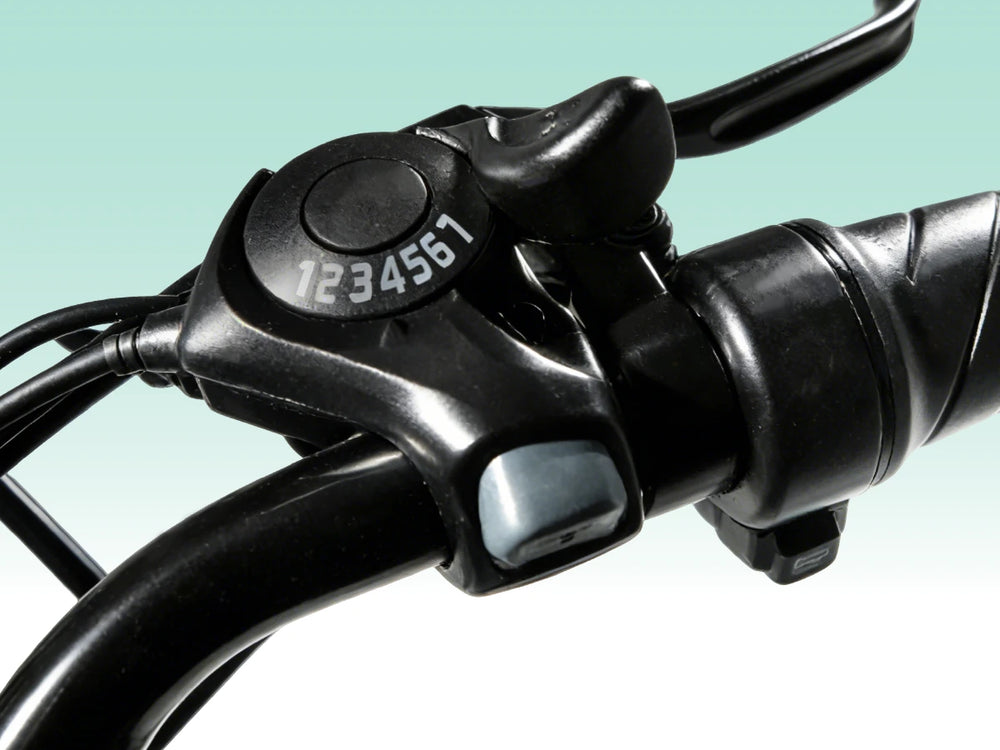

Drivetrain
Shimano TZ500 7-speed drivetrain
Tire
24*1.95

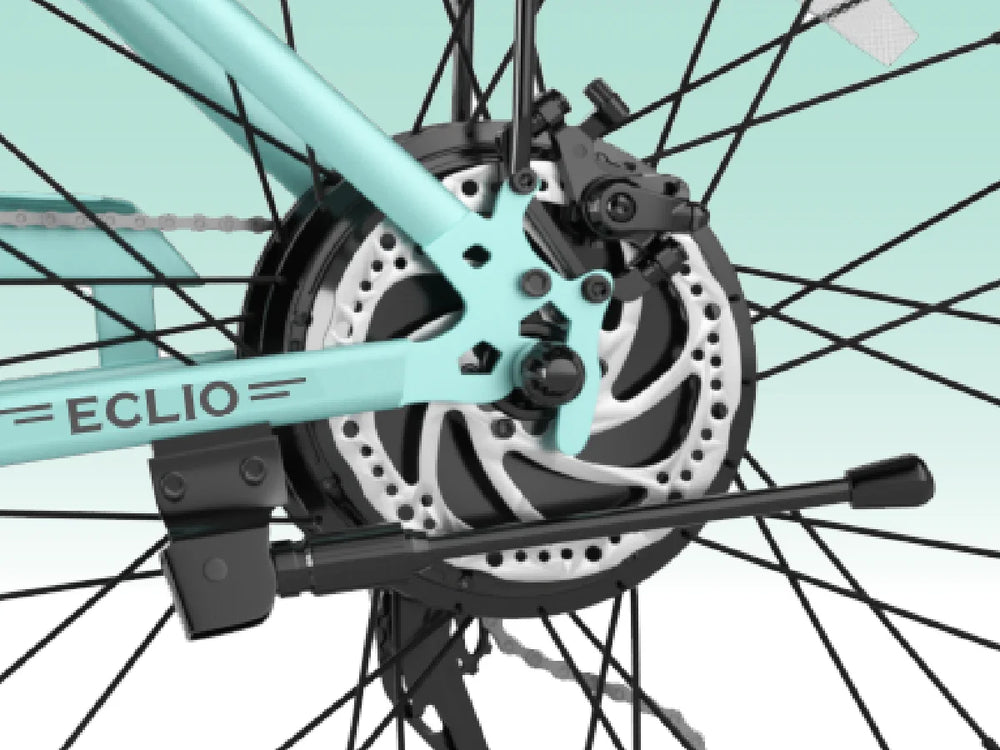

Brake
Disc Brake System
Wheels
24" aluminum alloy wheels.
Crankset
38T Crankset

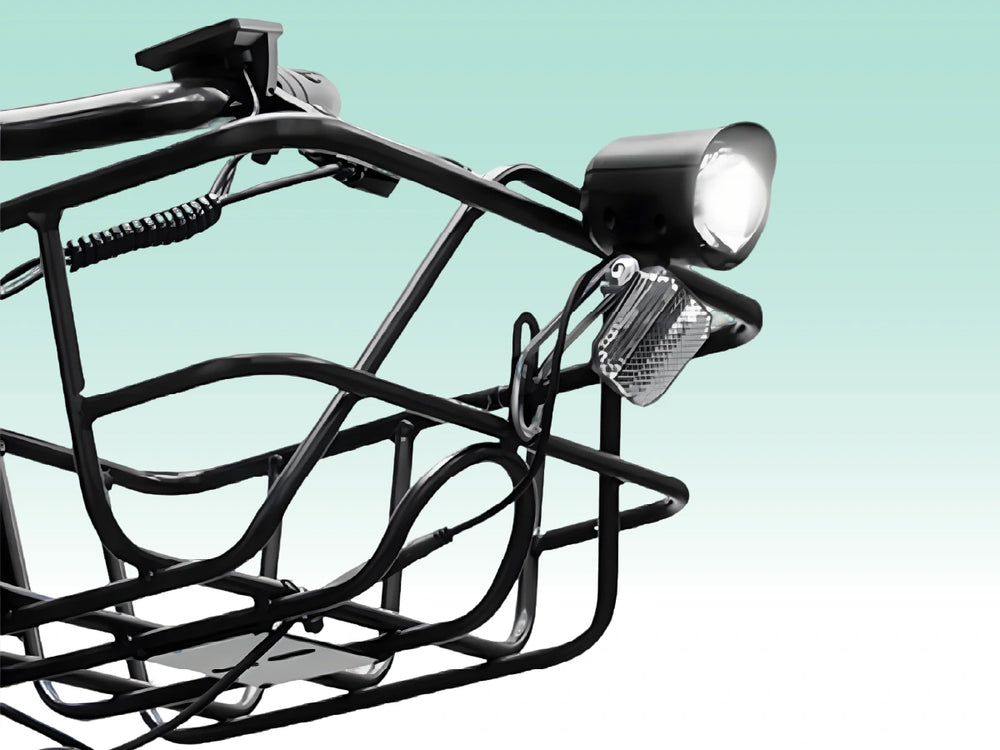

Basket
33 lbs/ 15kg Capacity
Rear Rack
77 lbs/ 35kg Capacity
Weight
Net weight: 64 lbs/ 29 kg (including battery)
Geometry
SYMBOL
Regular (mm)
A
B
C
D
E
F
G
SYMBOL
Regular (mm)
Handlebar Width
A
650
Reach
B
430
Headtube Height
C
830
Standover
D
430
Wheelbase
E
1000
Seat Tube
F
460
Seat Height
G
830
