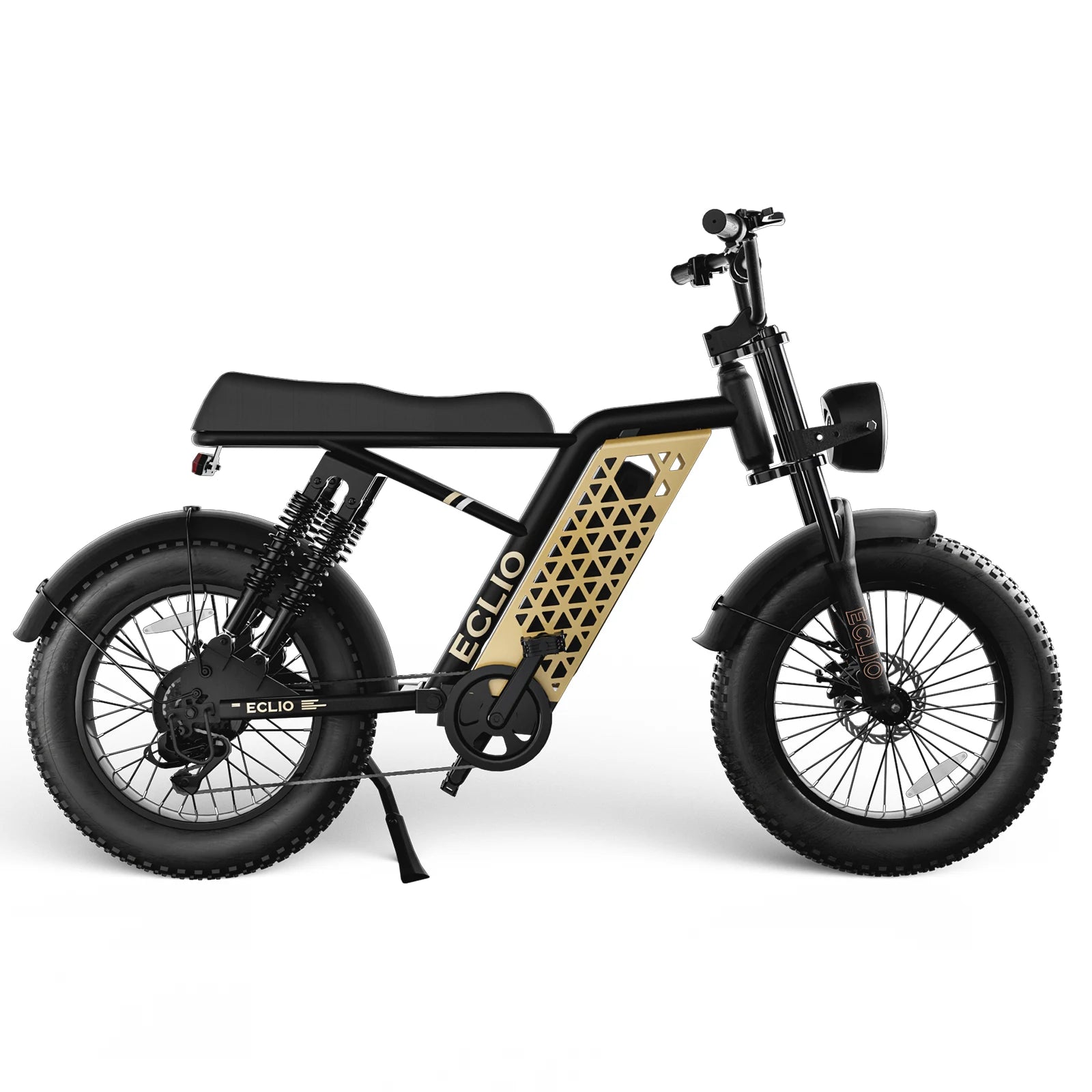

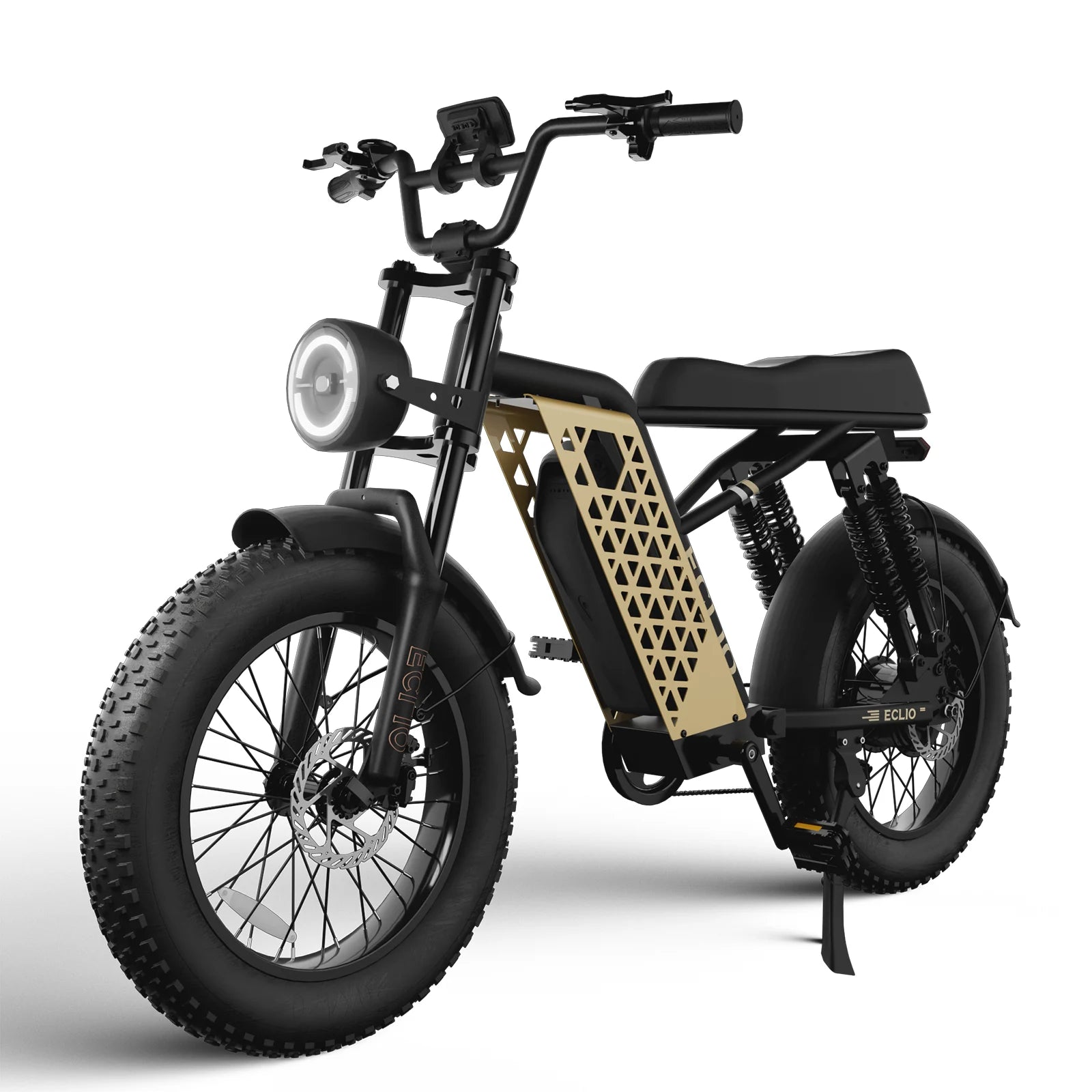

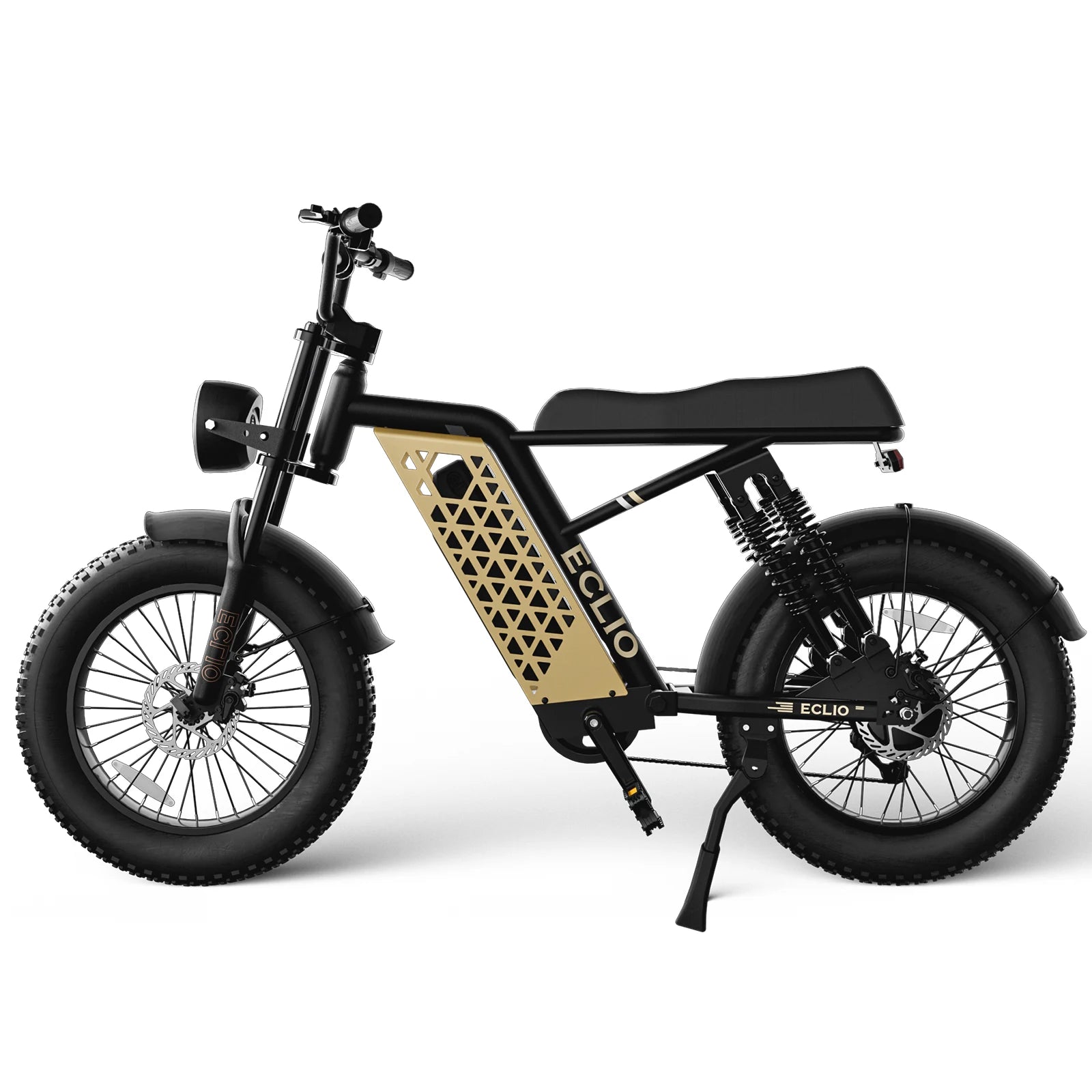

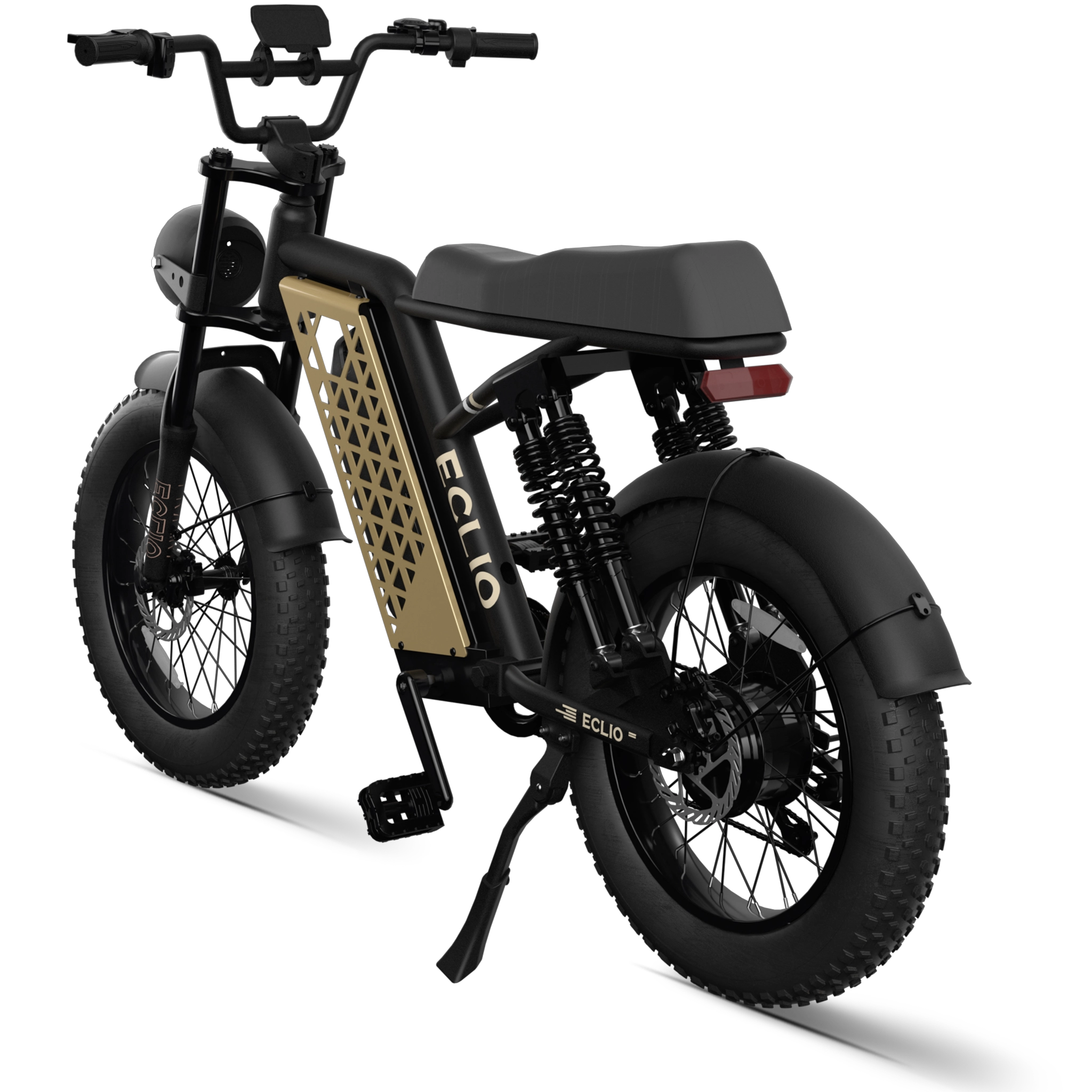

ECLIO F01 Electric Bike
| 1000W Motor | 28 MPH Top Speed | Up to 50 Miles | NFC Smart Unlock

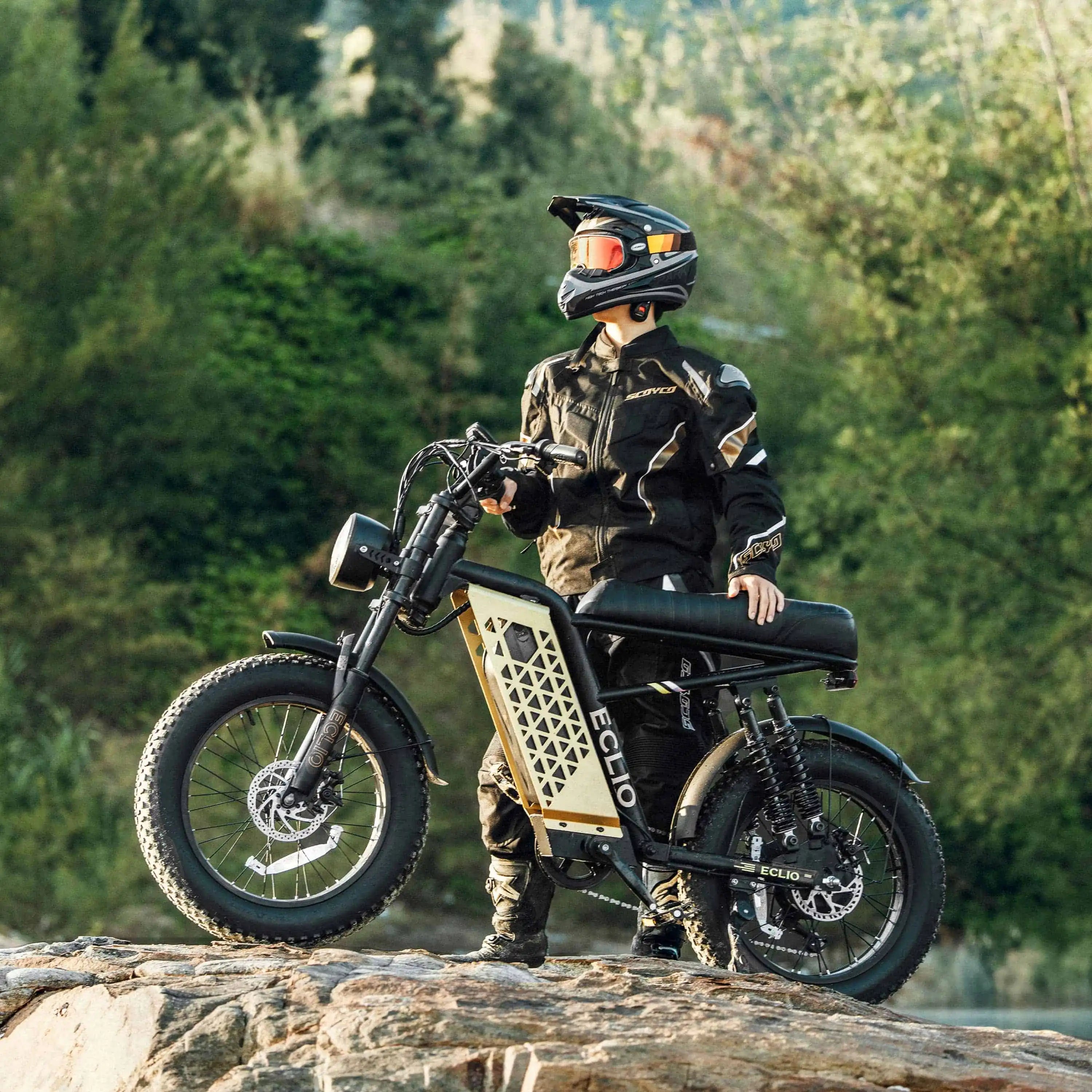

Built for Every Terrain
Watch the e-bike in action as it handles different terrains with ease and confidence.
Bigger Tires, Bigger Freedom

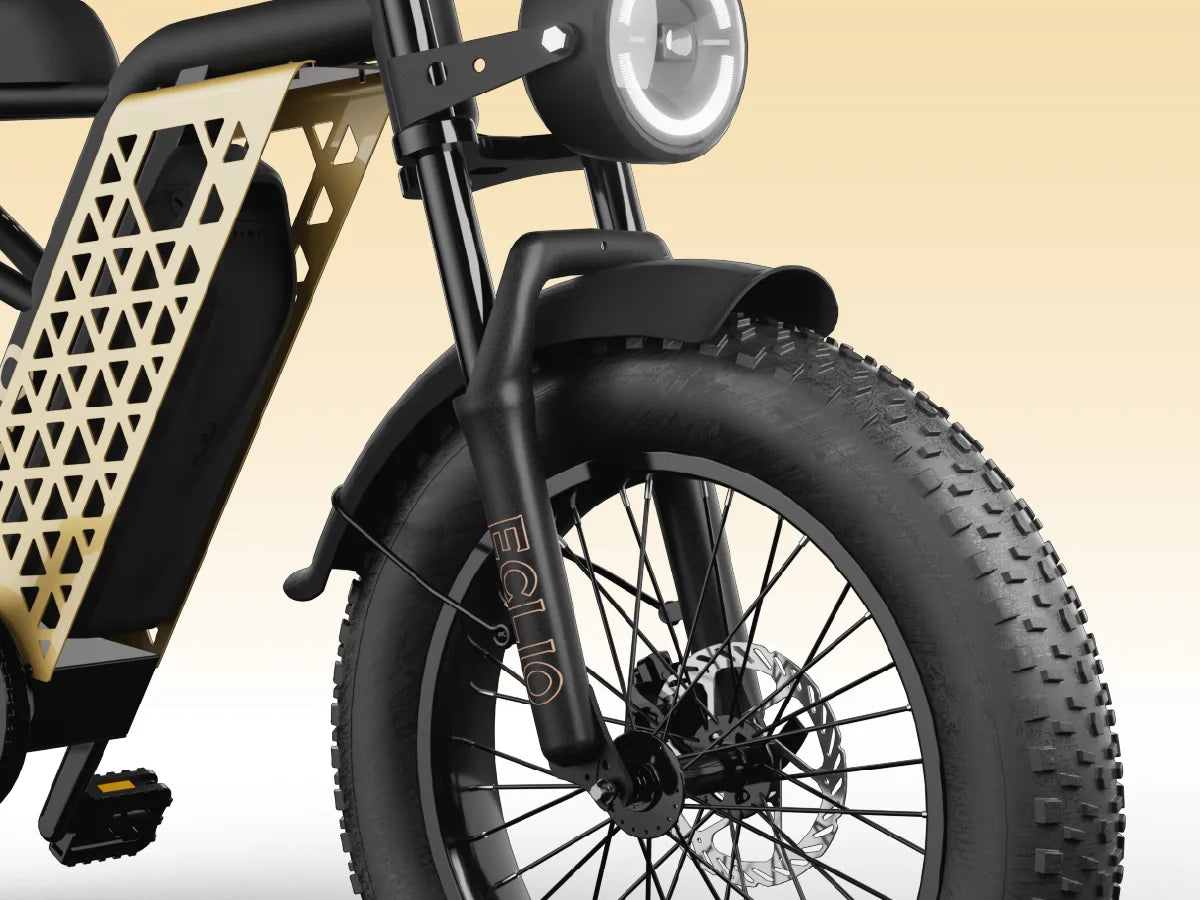

Front Suspension Fork
Smooths out front-end bumps for better control.

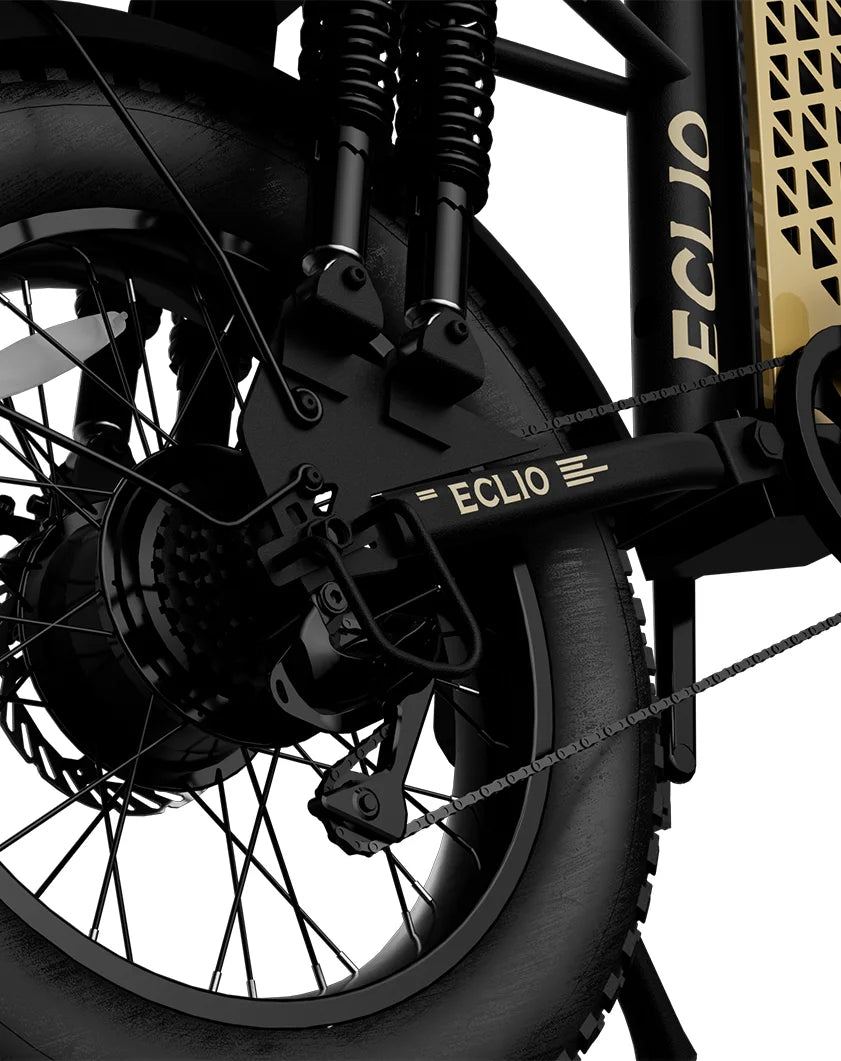

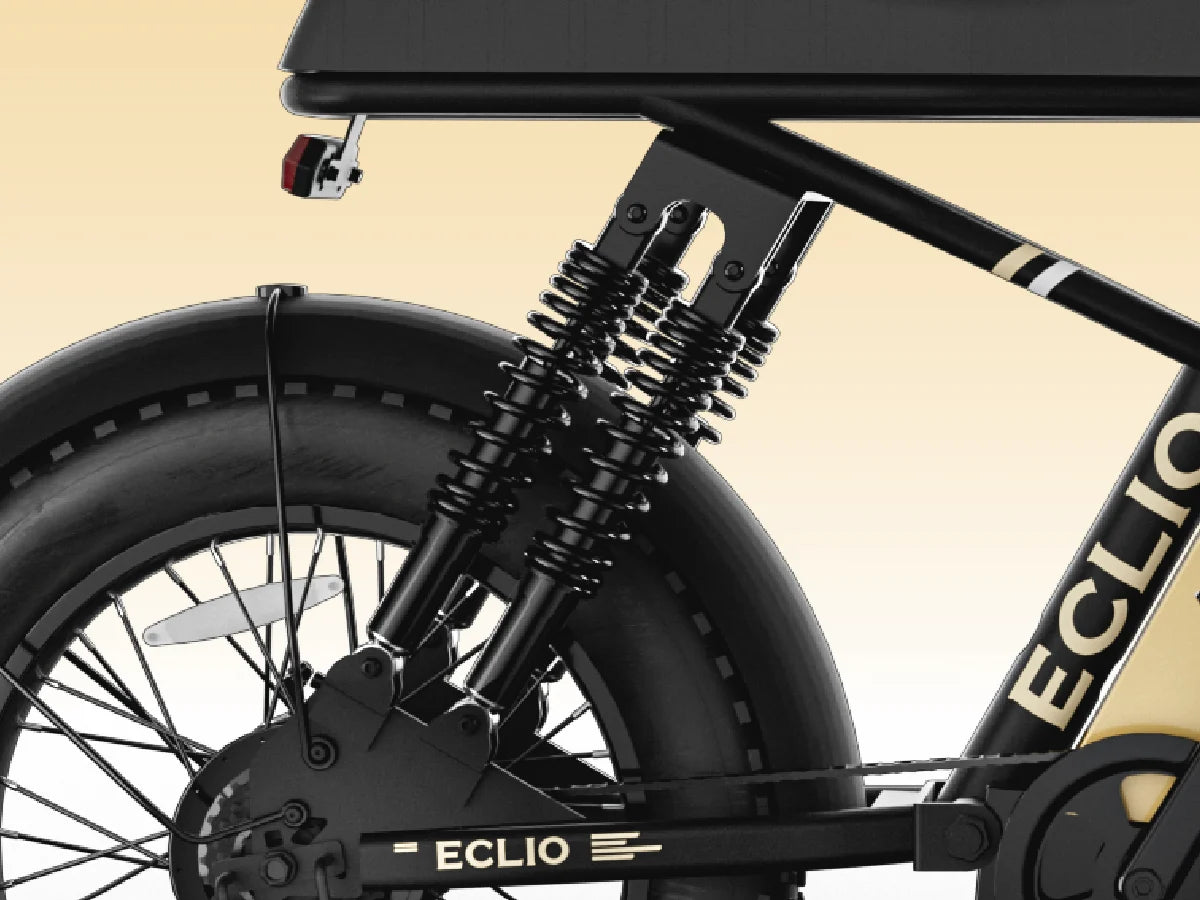

Dual Rear Shocks
Reduces rear vibrations for added comfort and stability.

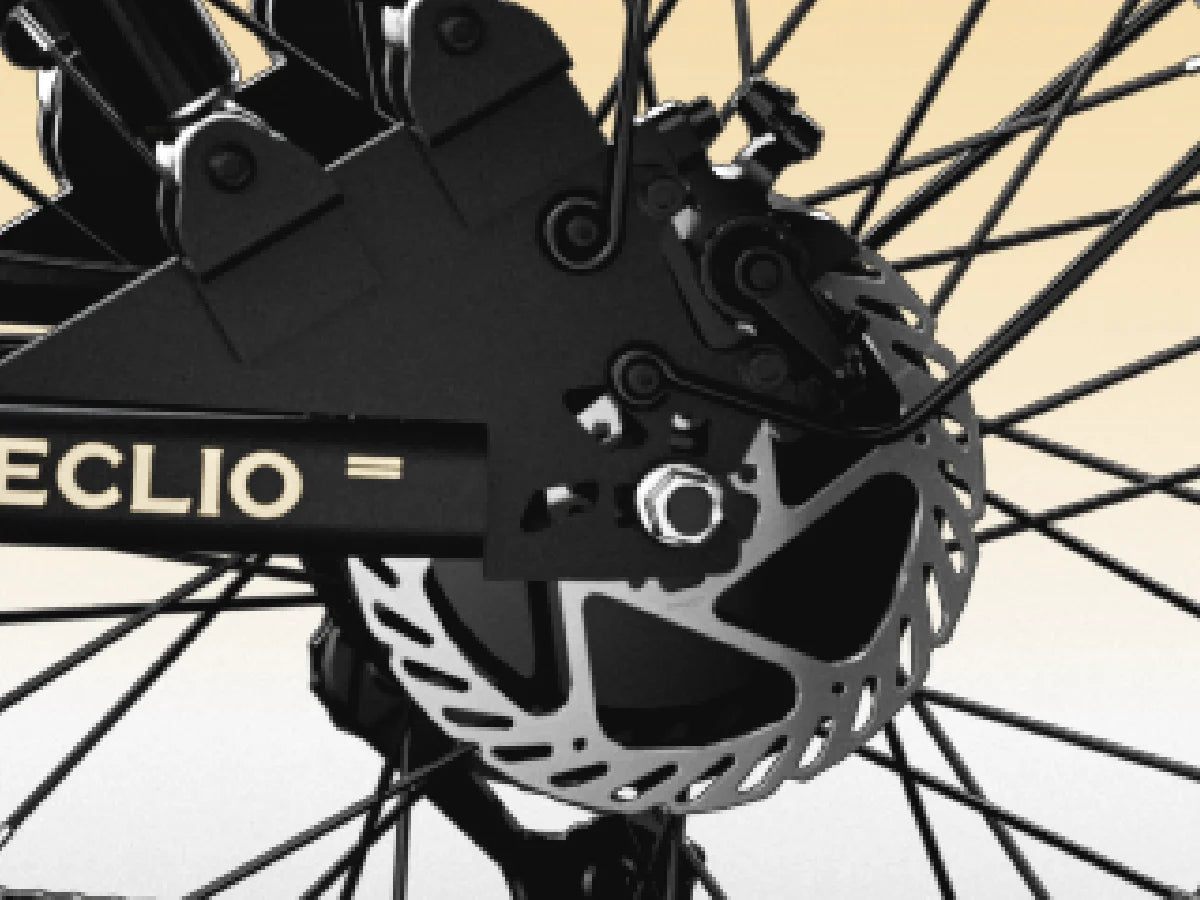

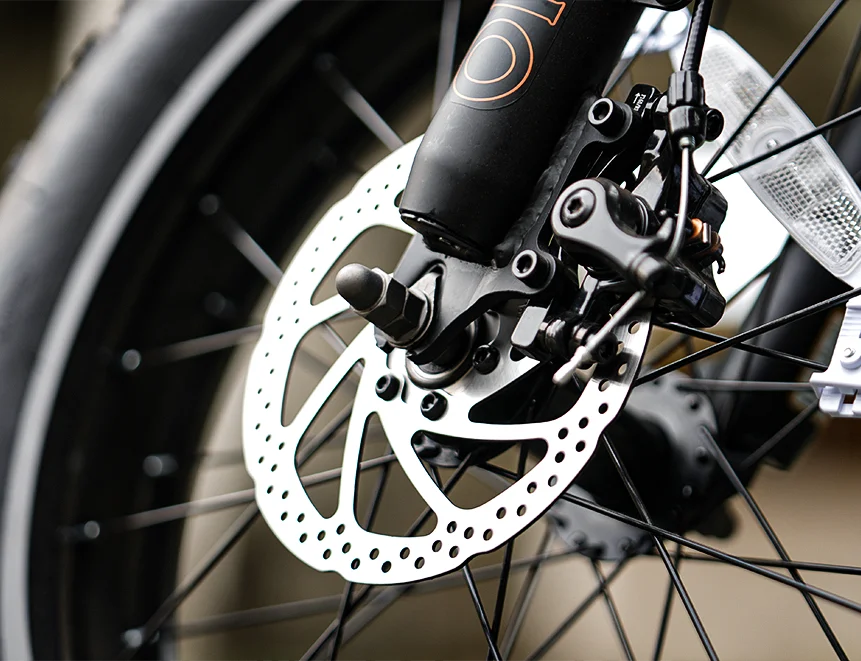

Disc Brake System
Designed to ensure stable and efficient braking performance for enhanced riding safety.

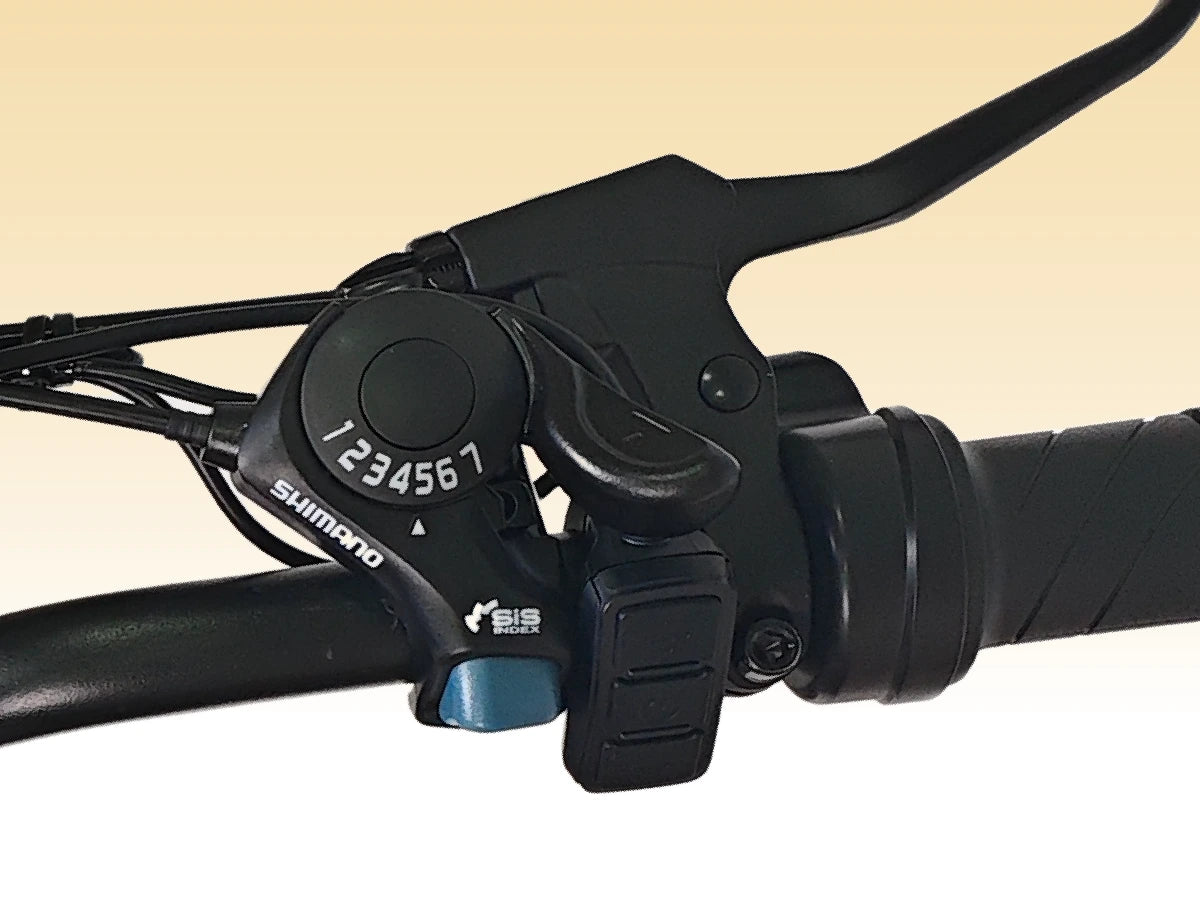

Shimano 7-speed Gear System
Shimano’s trusted engineering delivers long-lasting performance you can count on

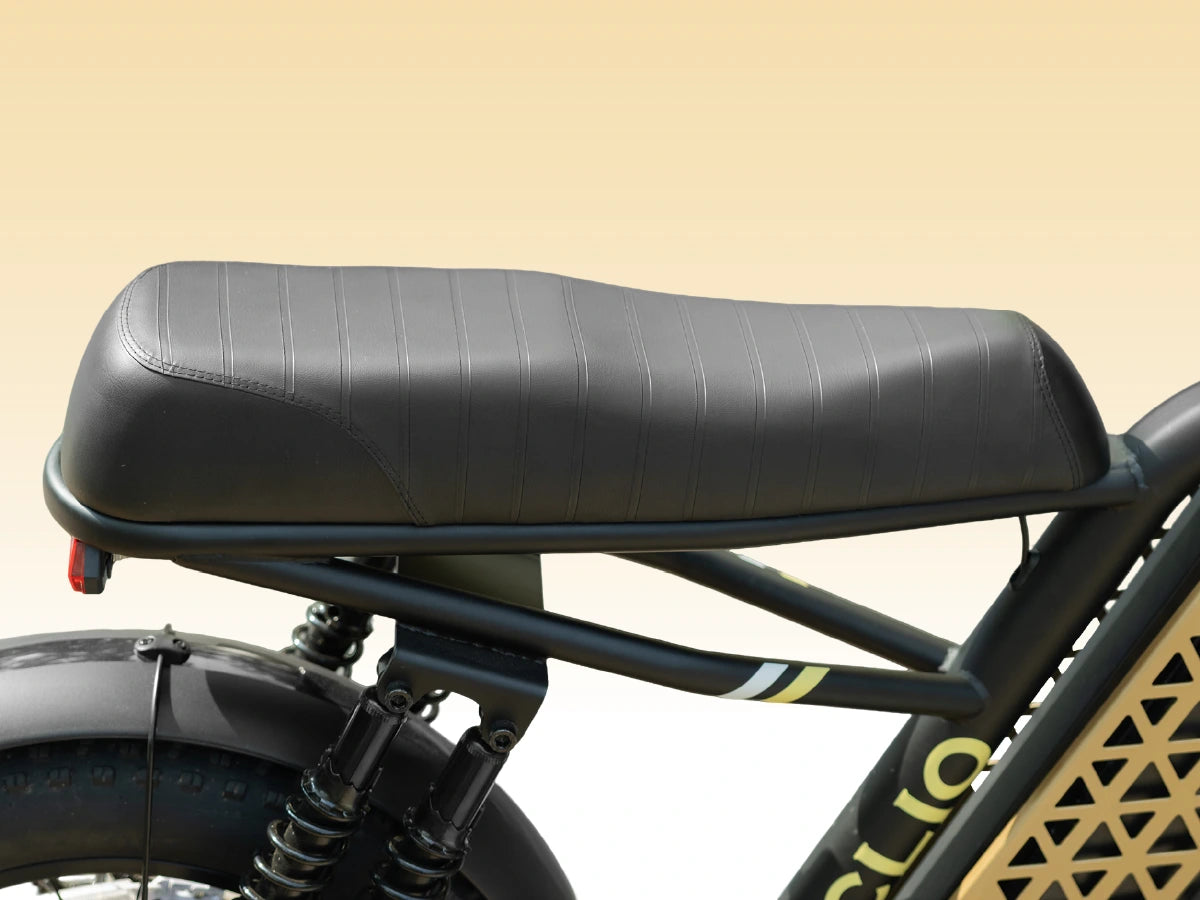

Extended Comfort Saddle
Designed with extra length and premium cushioning, it provides superior support for long rides,

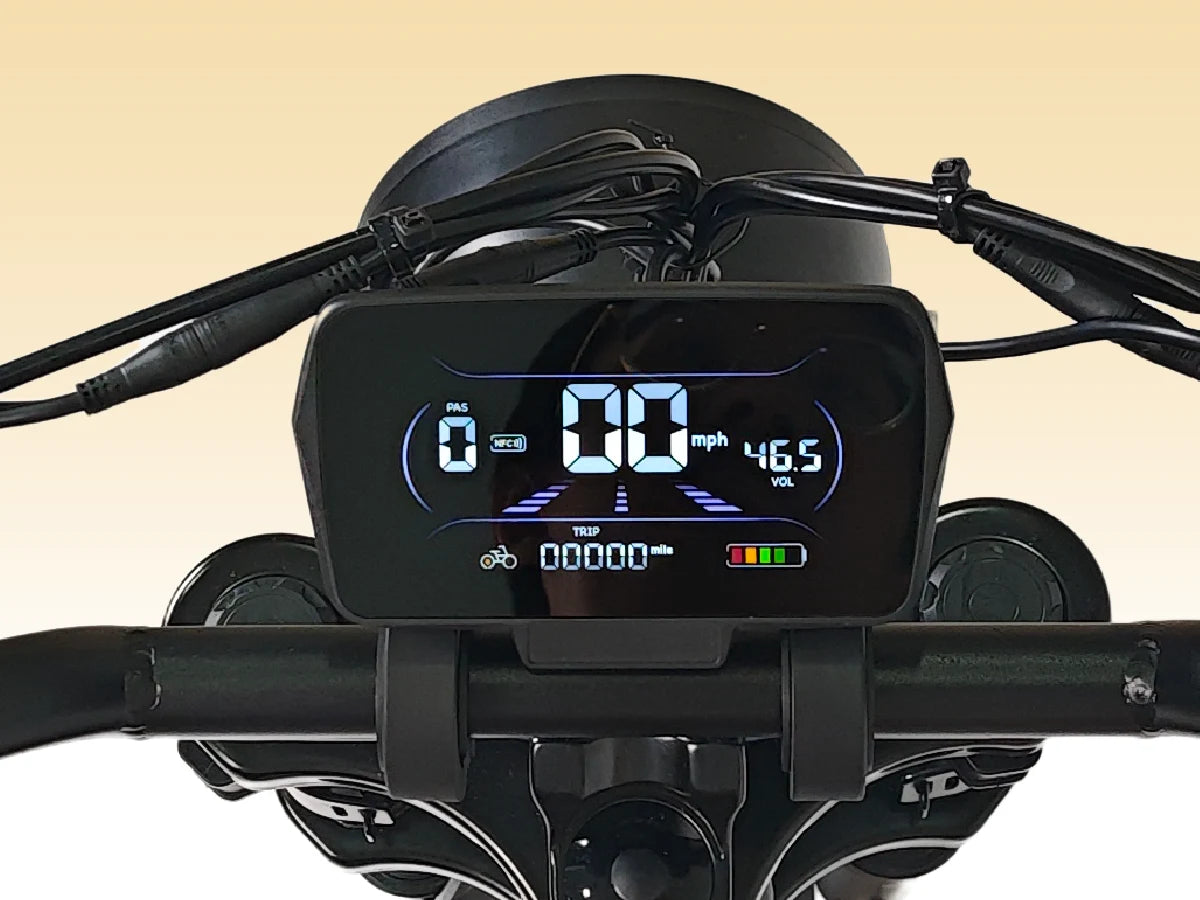

Sunlight-Visible Display
Never squint again! Our sunlight-visible bike display keeps your speed, battery, and stats clear even under bright sun.
How-to Video
The Eclio F01 arrives mostly 90% pre-assembled for quick and easy setup. Make a few adjustments, charge the battery, and you’re ready to ride. For help, refer to the installation video or contact Eclio support.
ELECTRONICS
Motor
1000W Peak Rear Hub Motor (60 Nm Torque)
Sensor
Cadence Sensor
Display
4' LCD Display
Battery
48V 13Ah, 624Wh, IPX5 Lithium-ion Battery
Controller
48V Controller with 9 MOSFETs
Lights
55 Lux LED Head Light
PERFORMANCE
Default Max Speed
20 mph*The motor will stop giving assist at the stated topspeed.You can still ride beyond the statedtop speed with pure muscle power. This limit issetin accordance withlocalregulations.
Adjustable Max Speed
28mph
Throttle Range
30 miles*Actualperformance will vary depending ontemperature,road conditions,rider's weight,etc.
Pedal Assist Range
Up to 50 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Climbing Ability
12°. The actual performance would depend on therider's physical strength.
Geometry
SYMBOL
Regular (mm)
A
B
C
D
E
SYMBOL
Regular (mm)
Handlebar Width
A
720
Reach
B
430
Headtube Height
C
950
Wheelbase
D
1110
Seat Height
E
830
