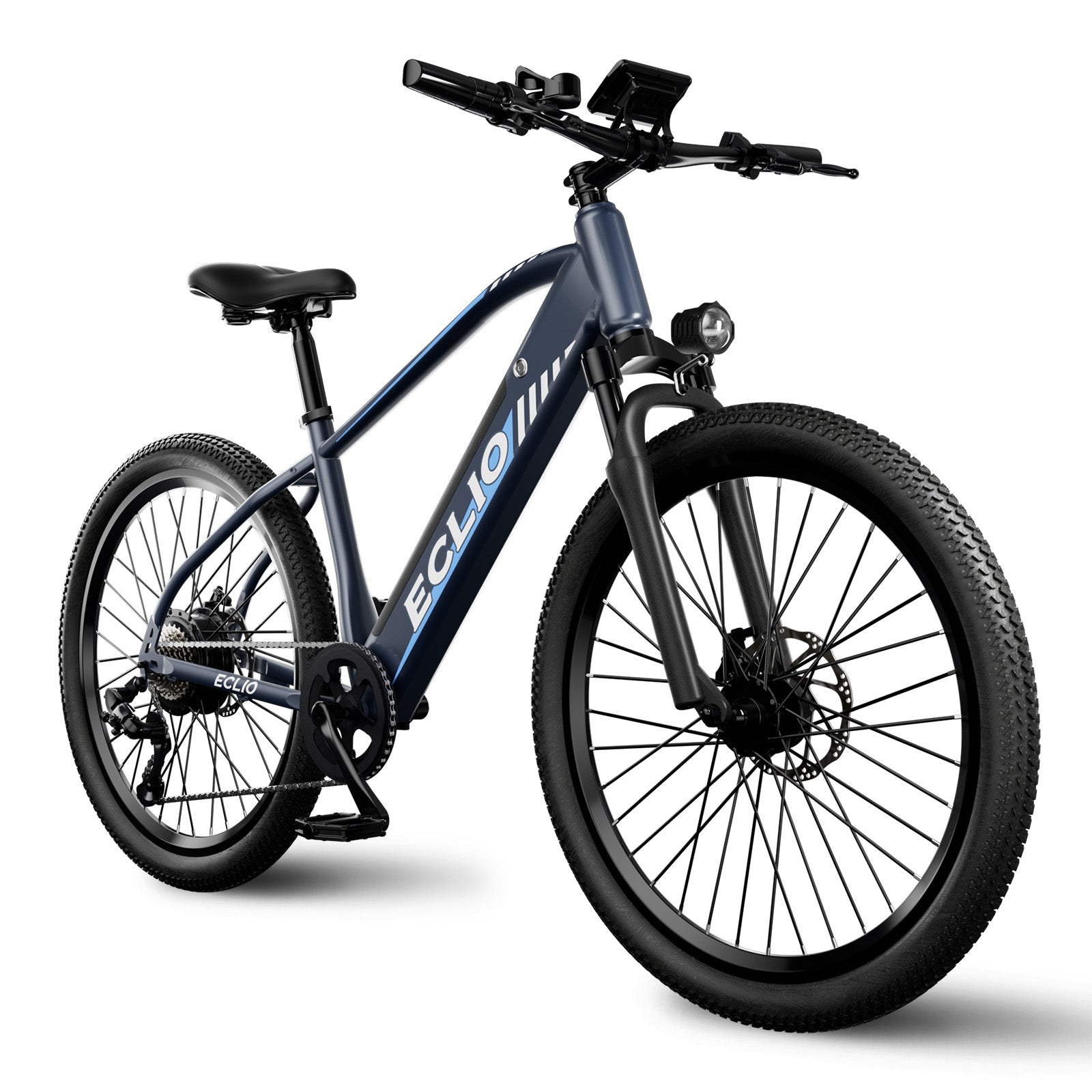

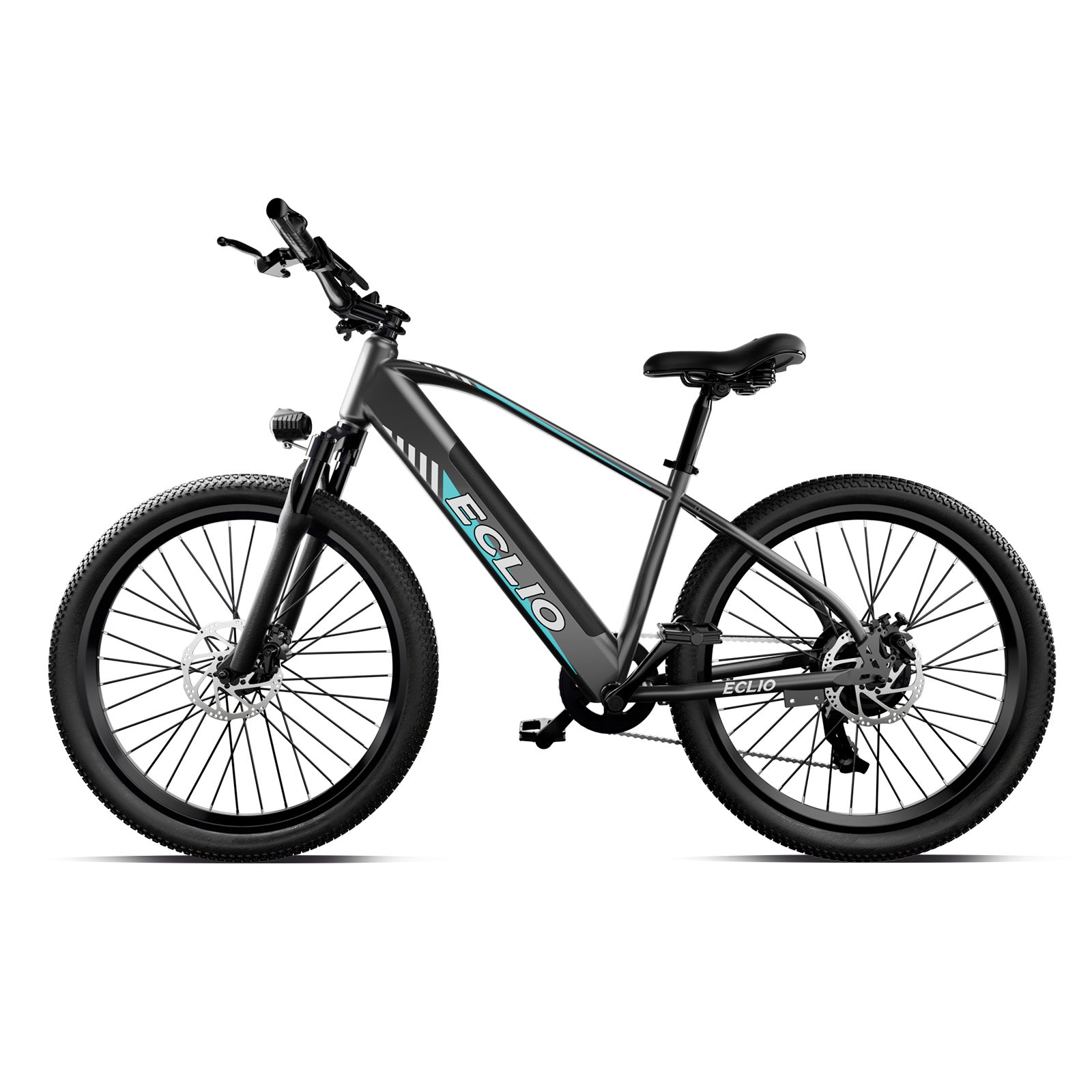

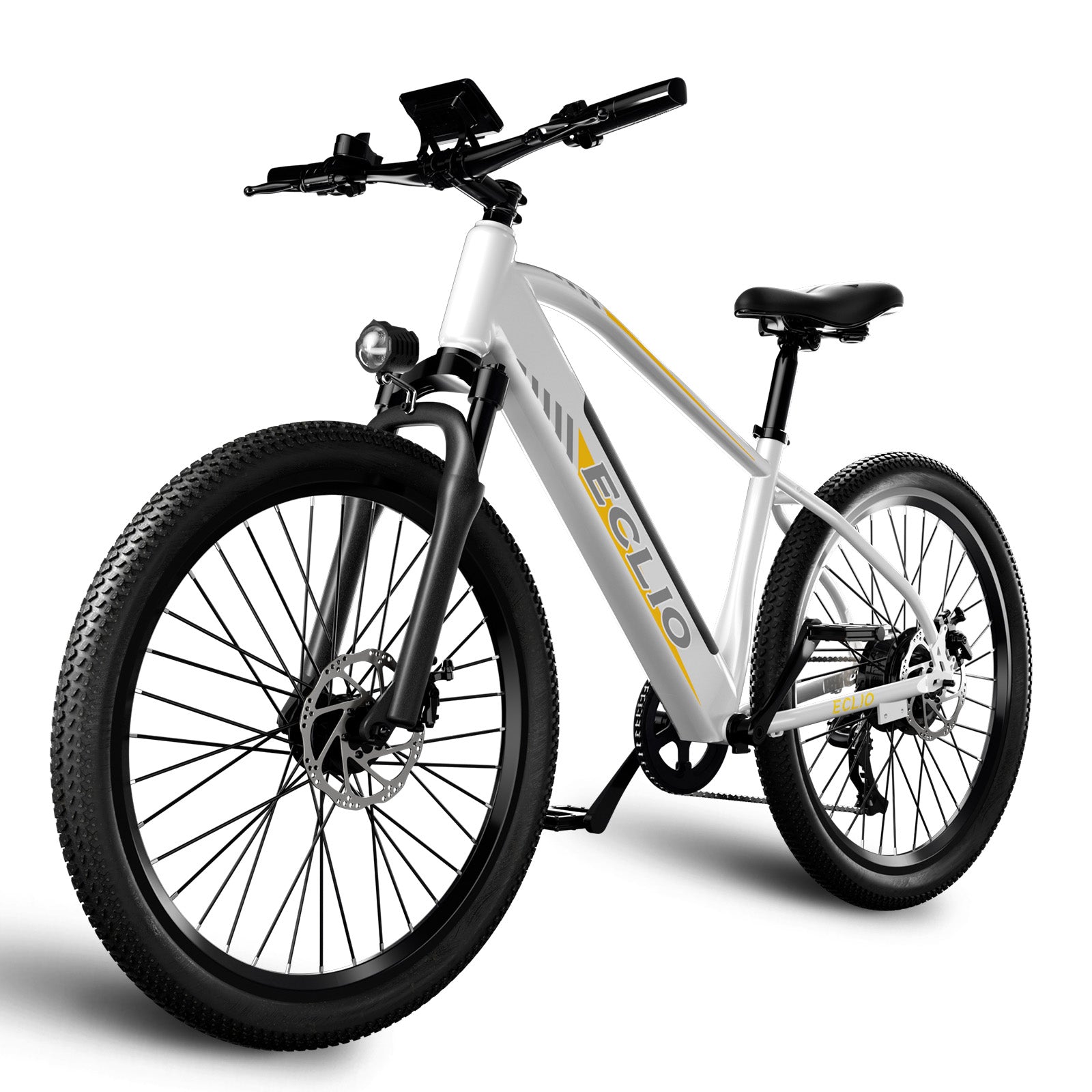

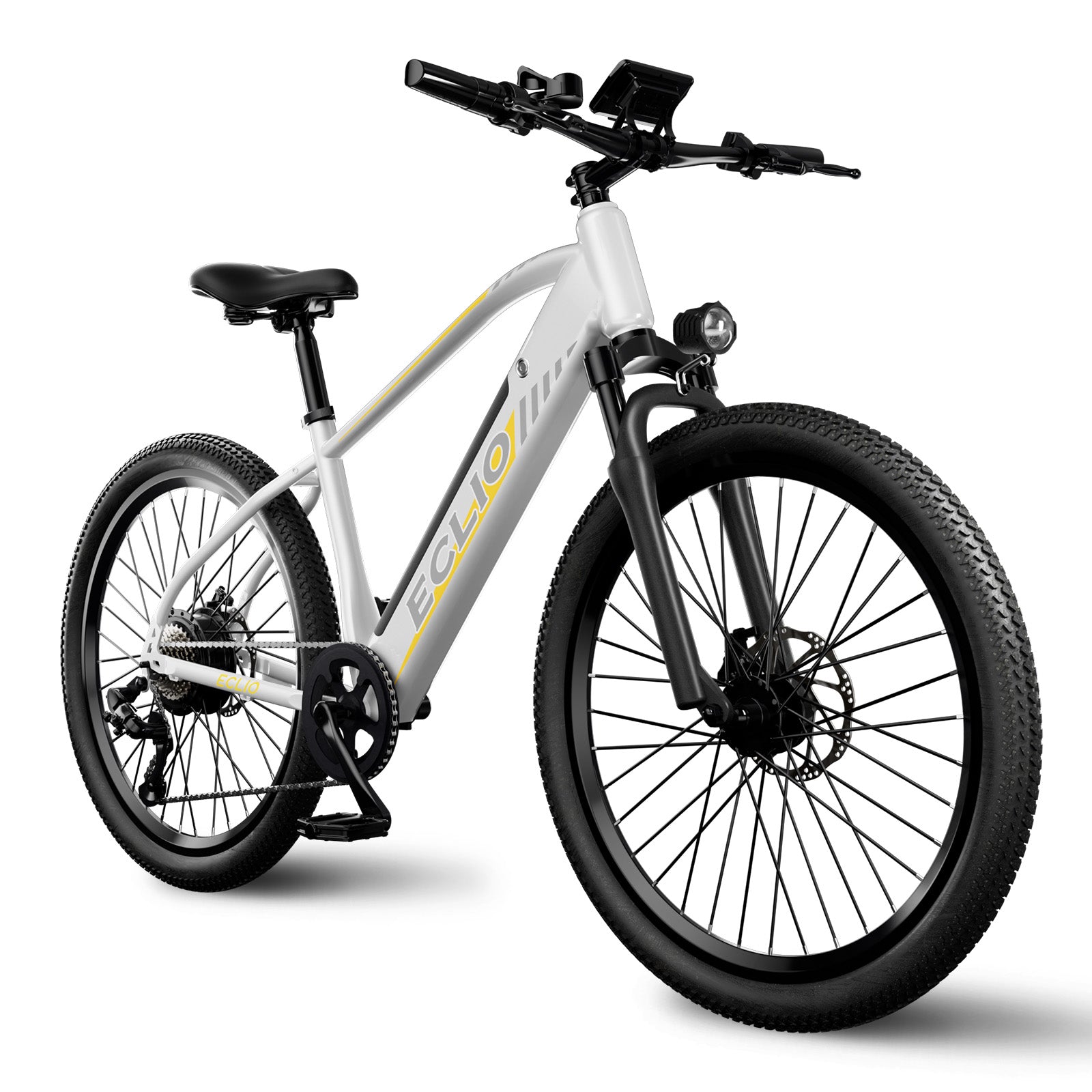

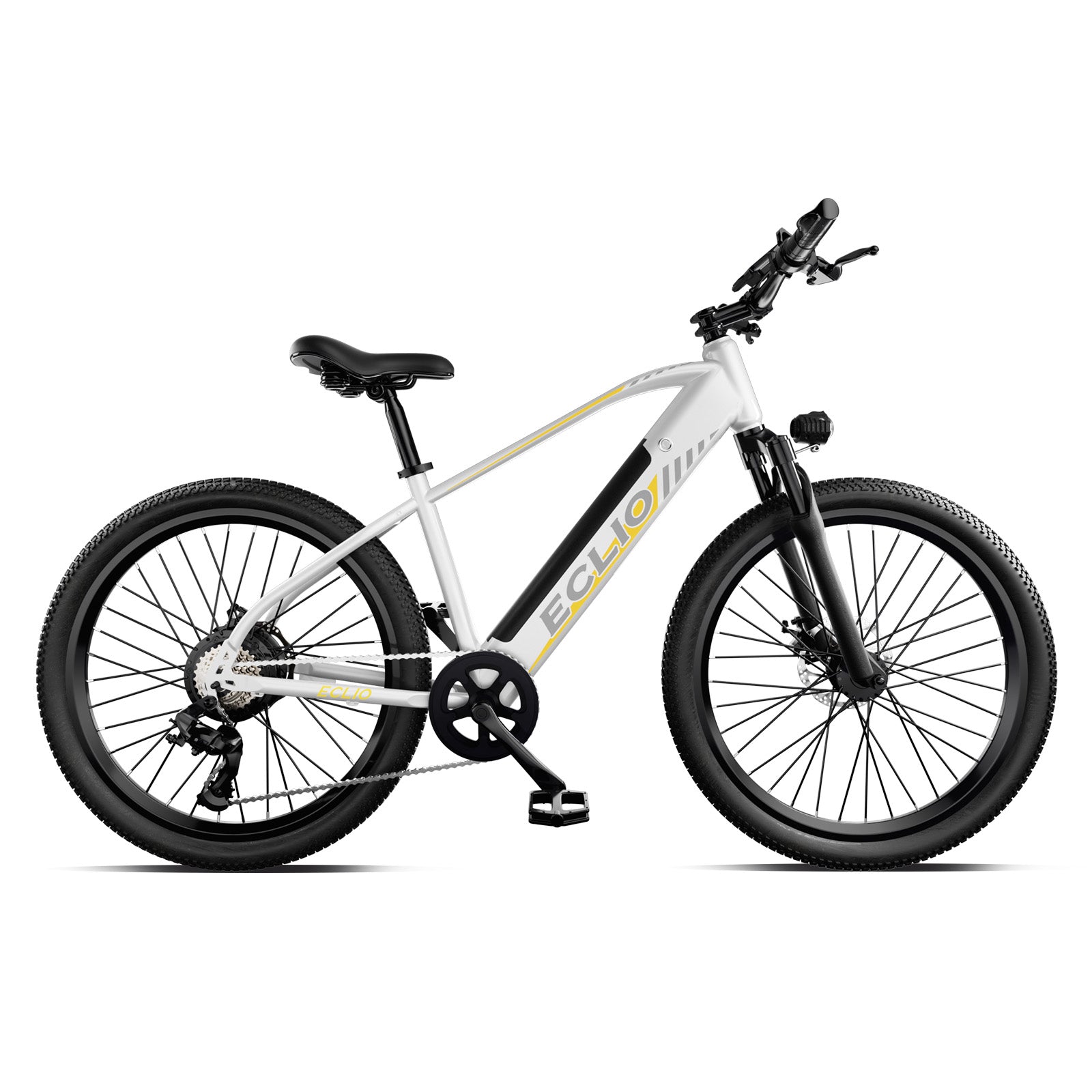

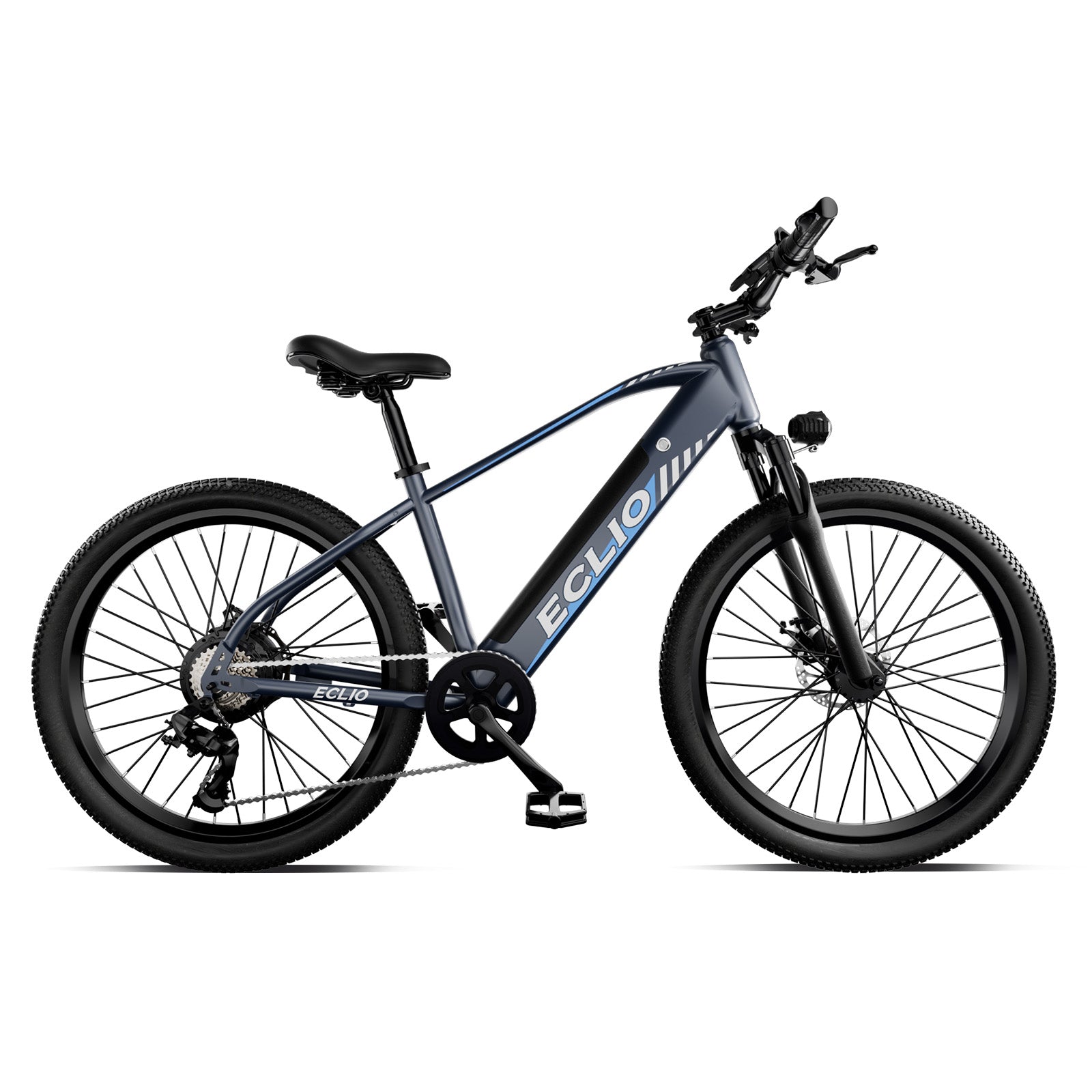

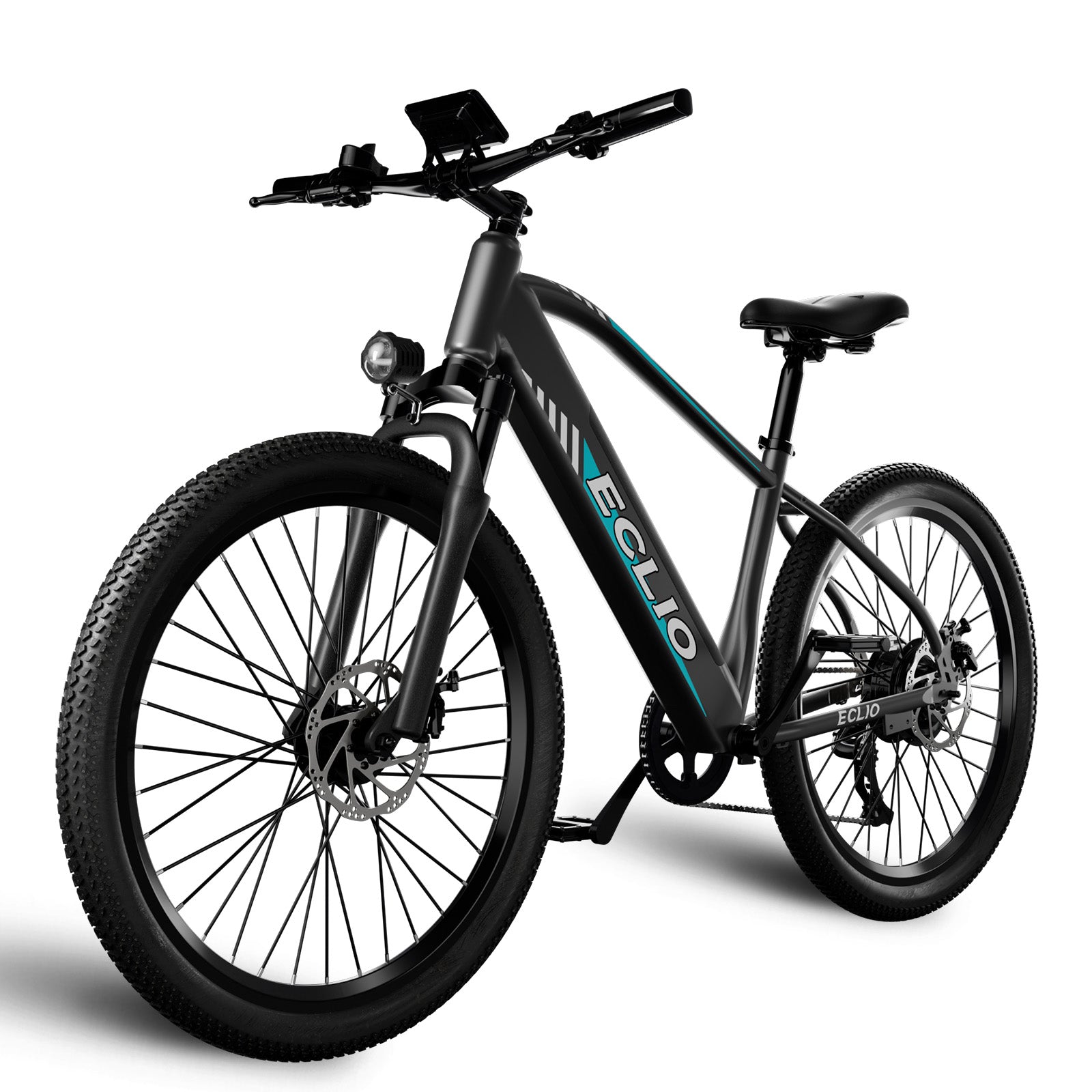

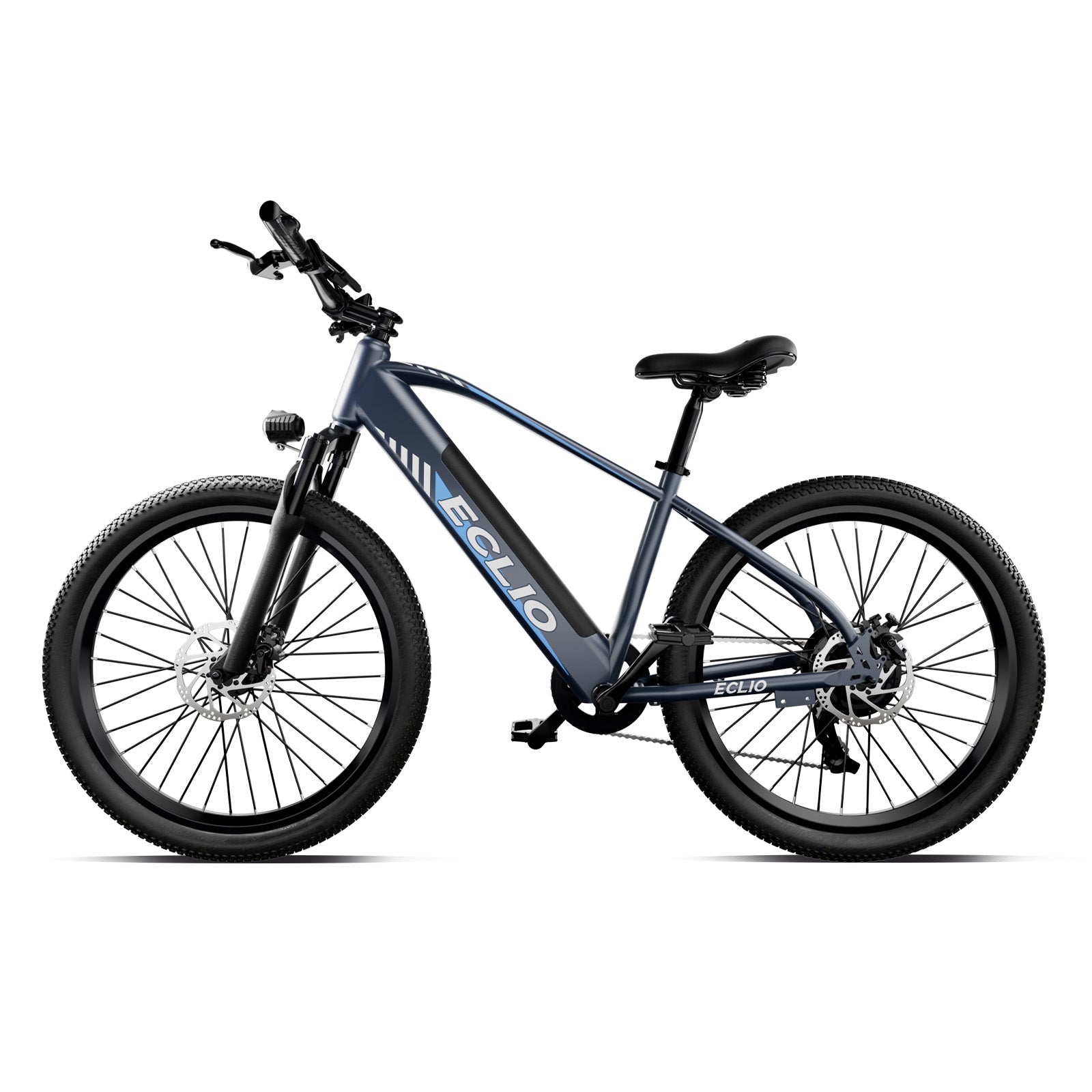

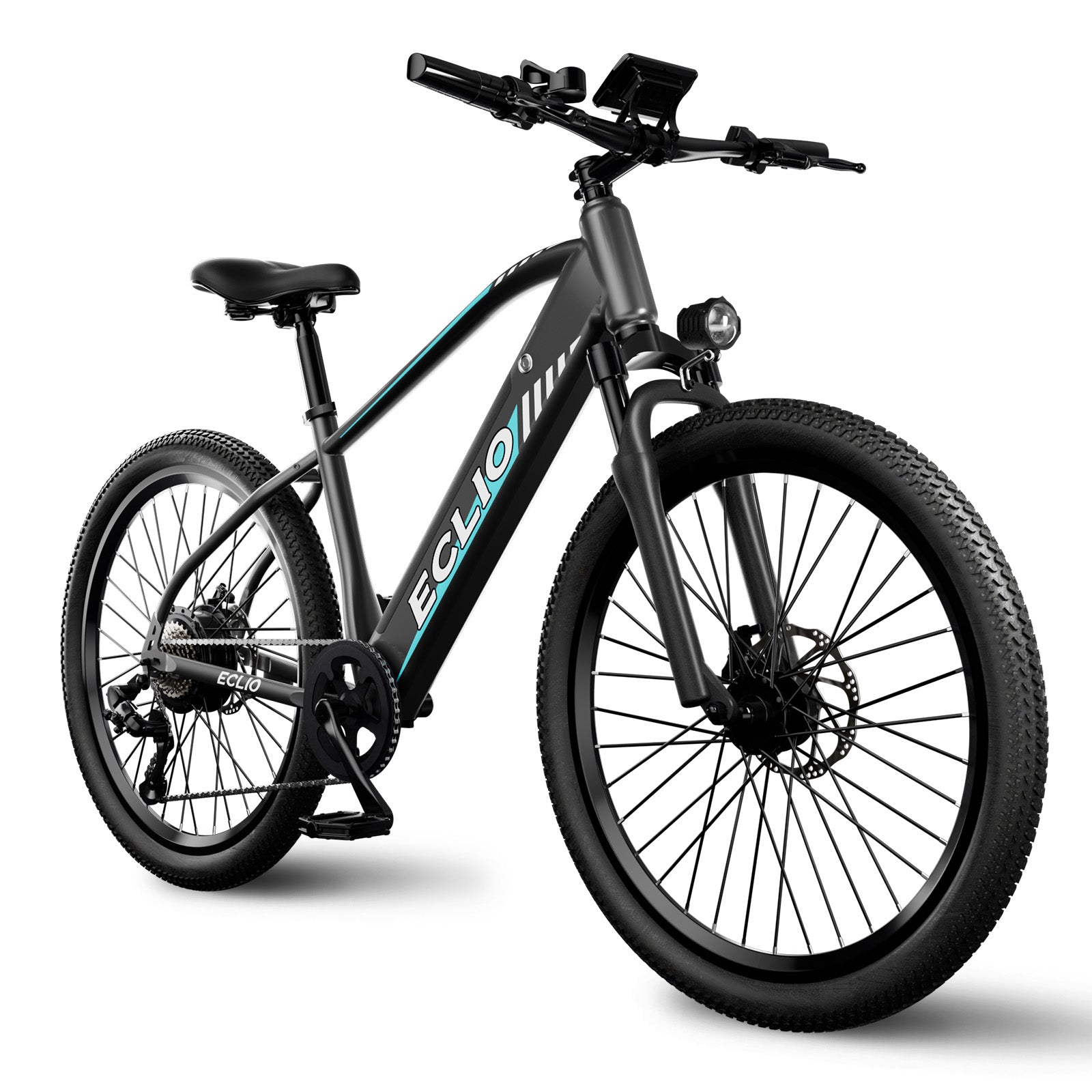

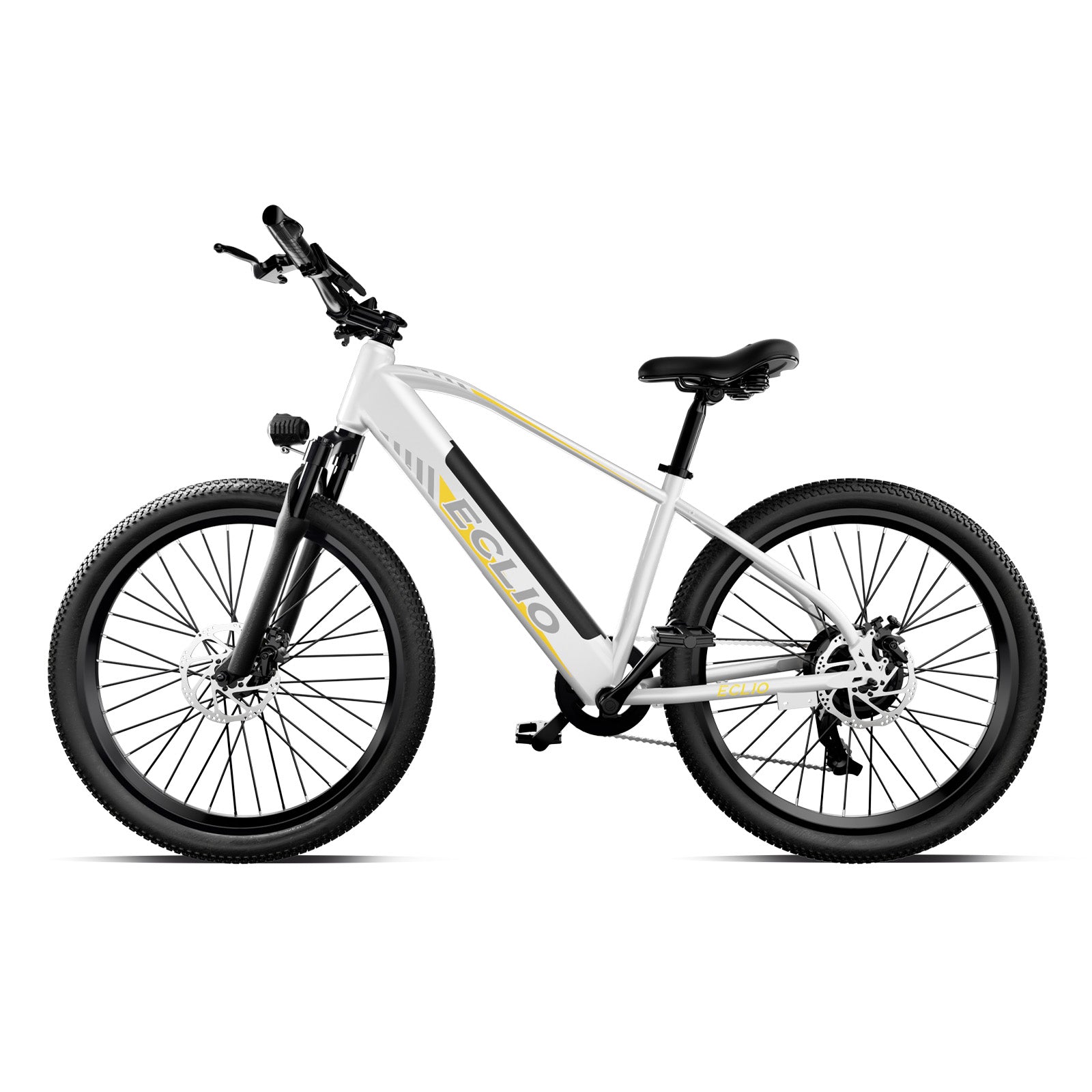

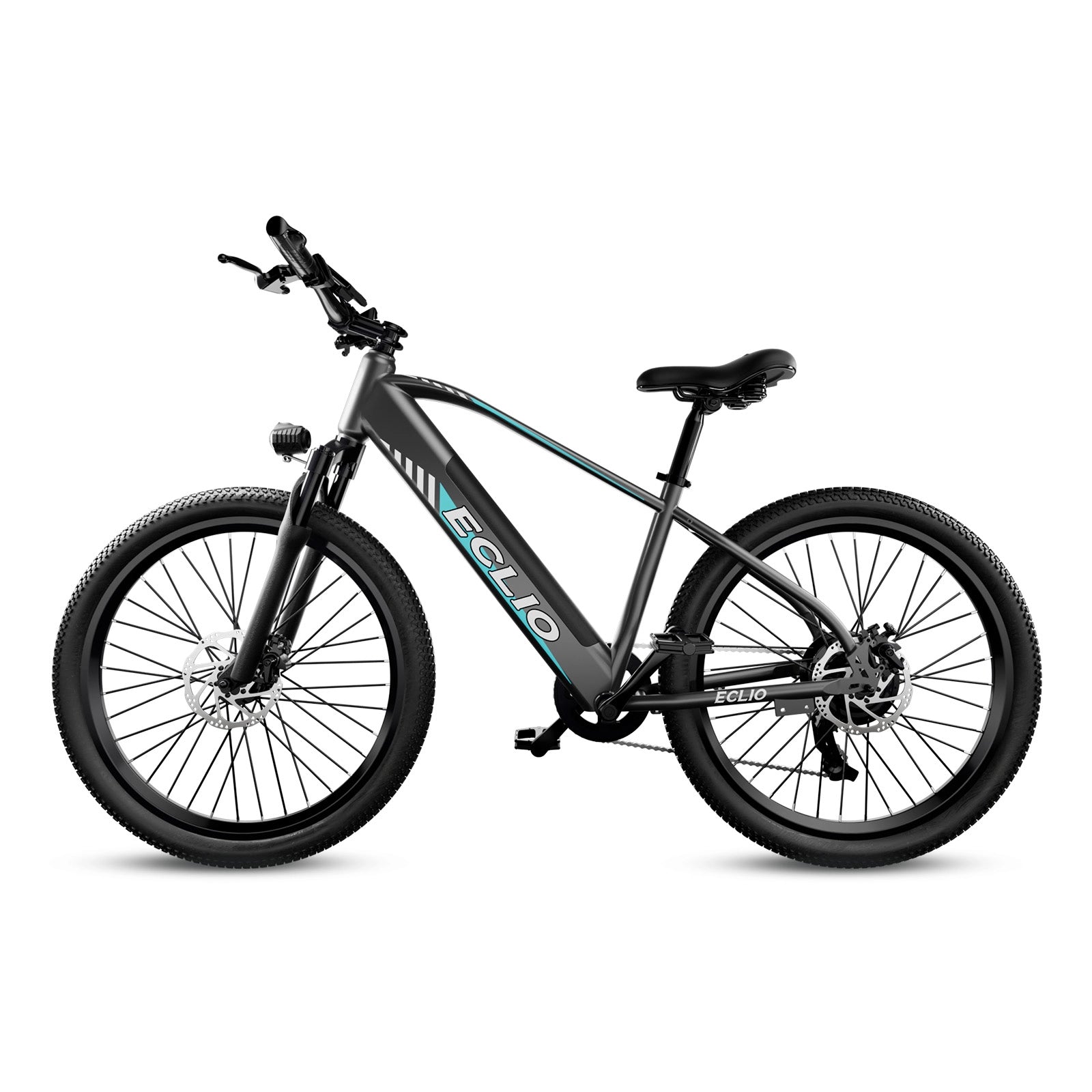

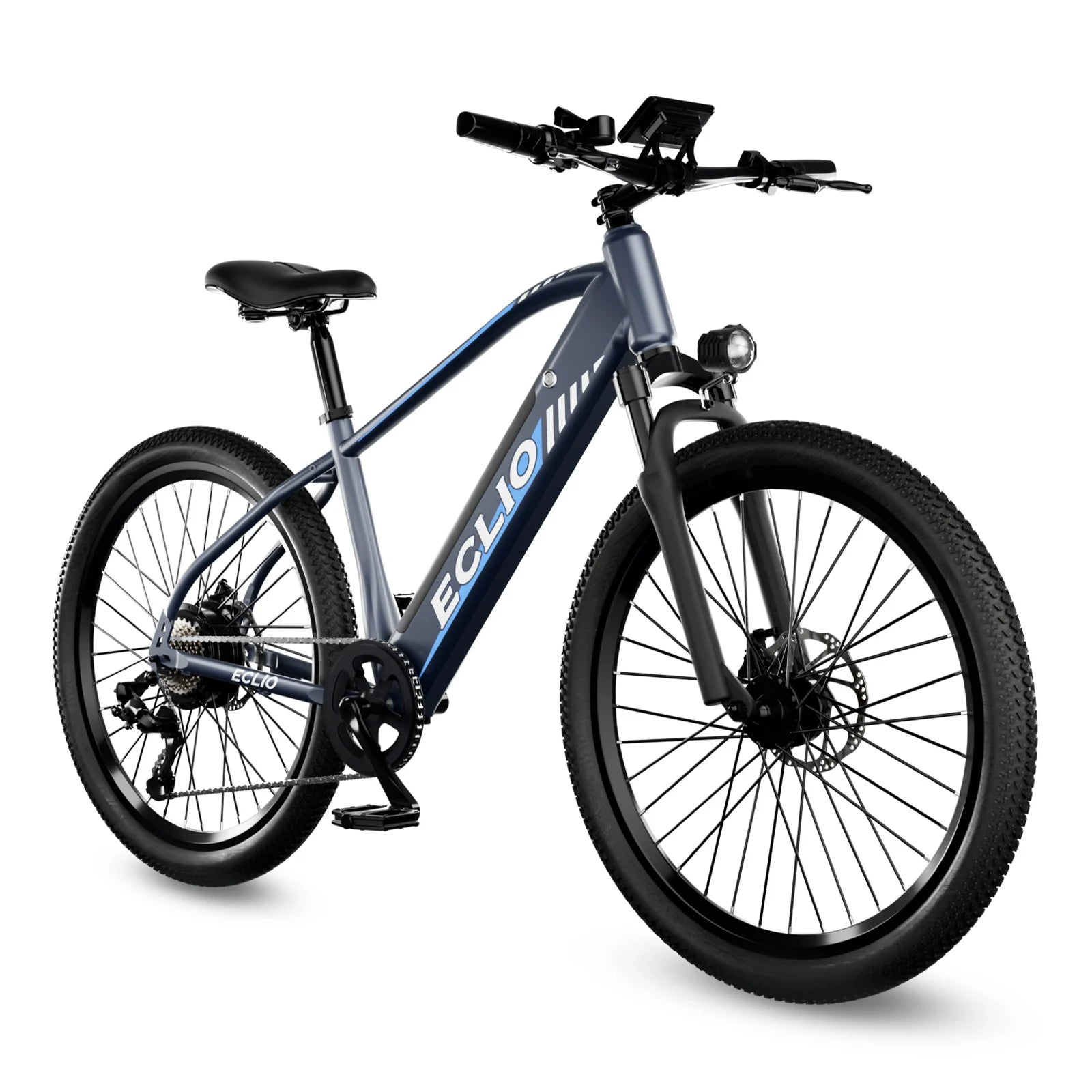

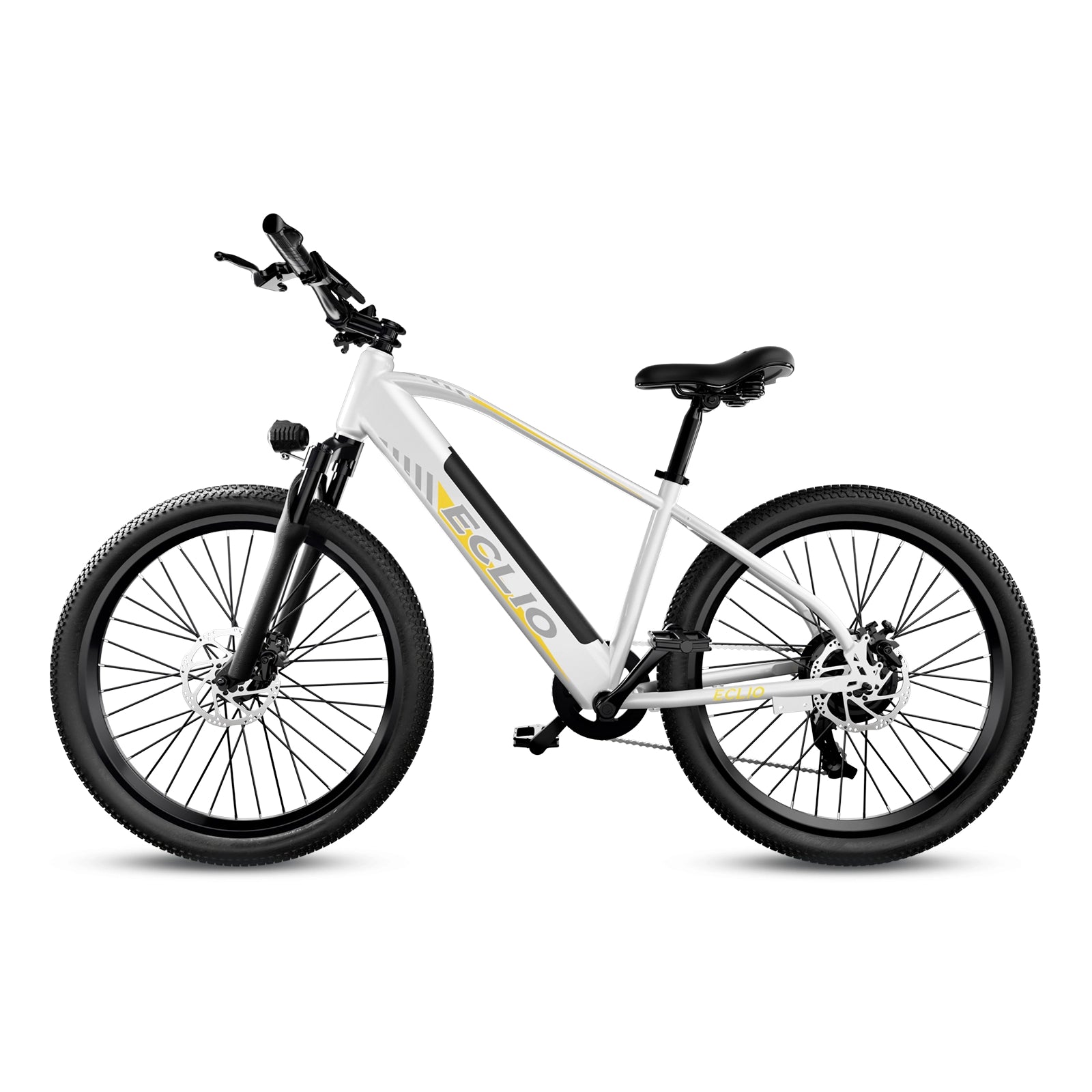

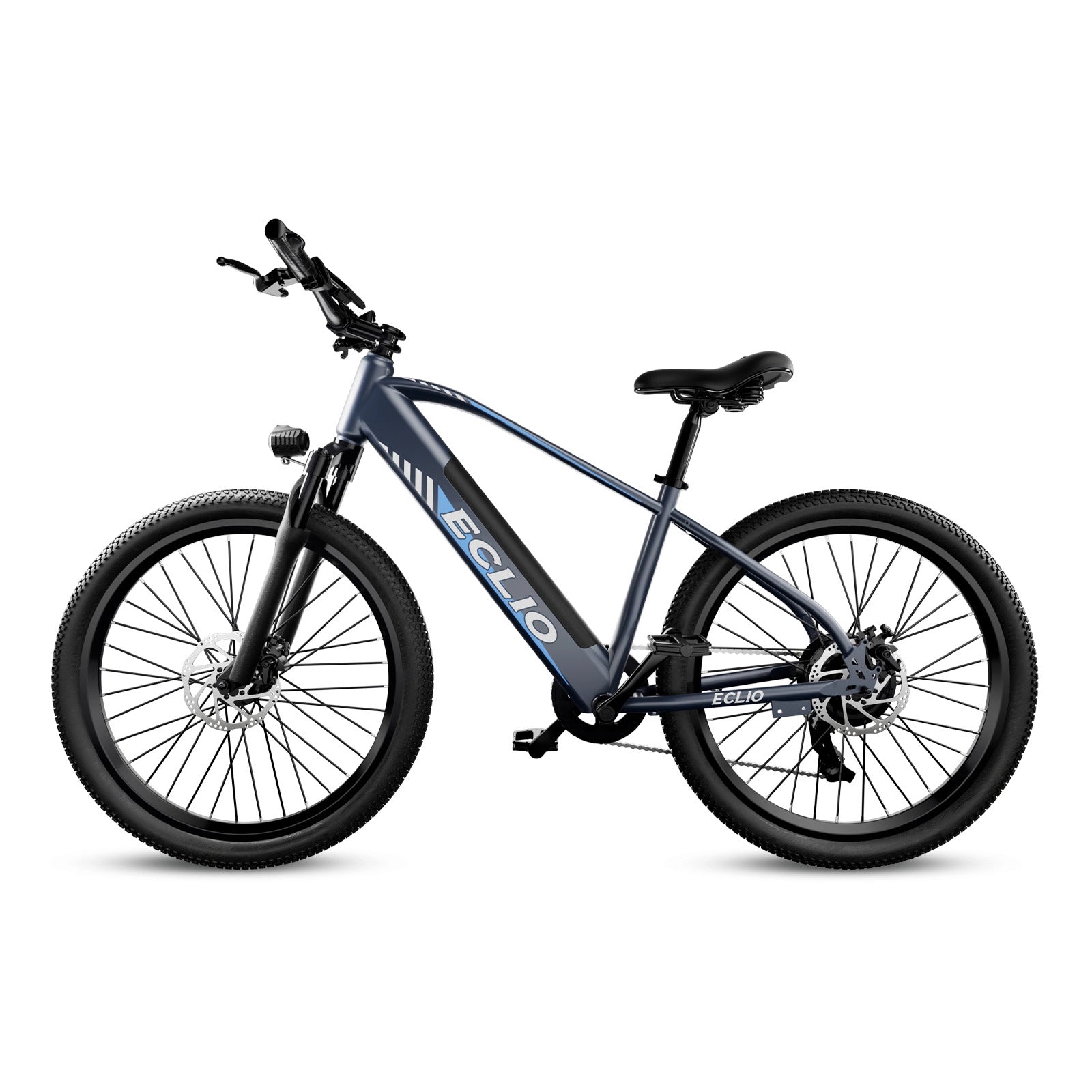

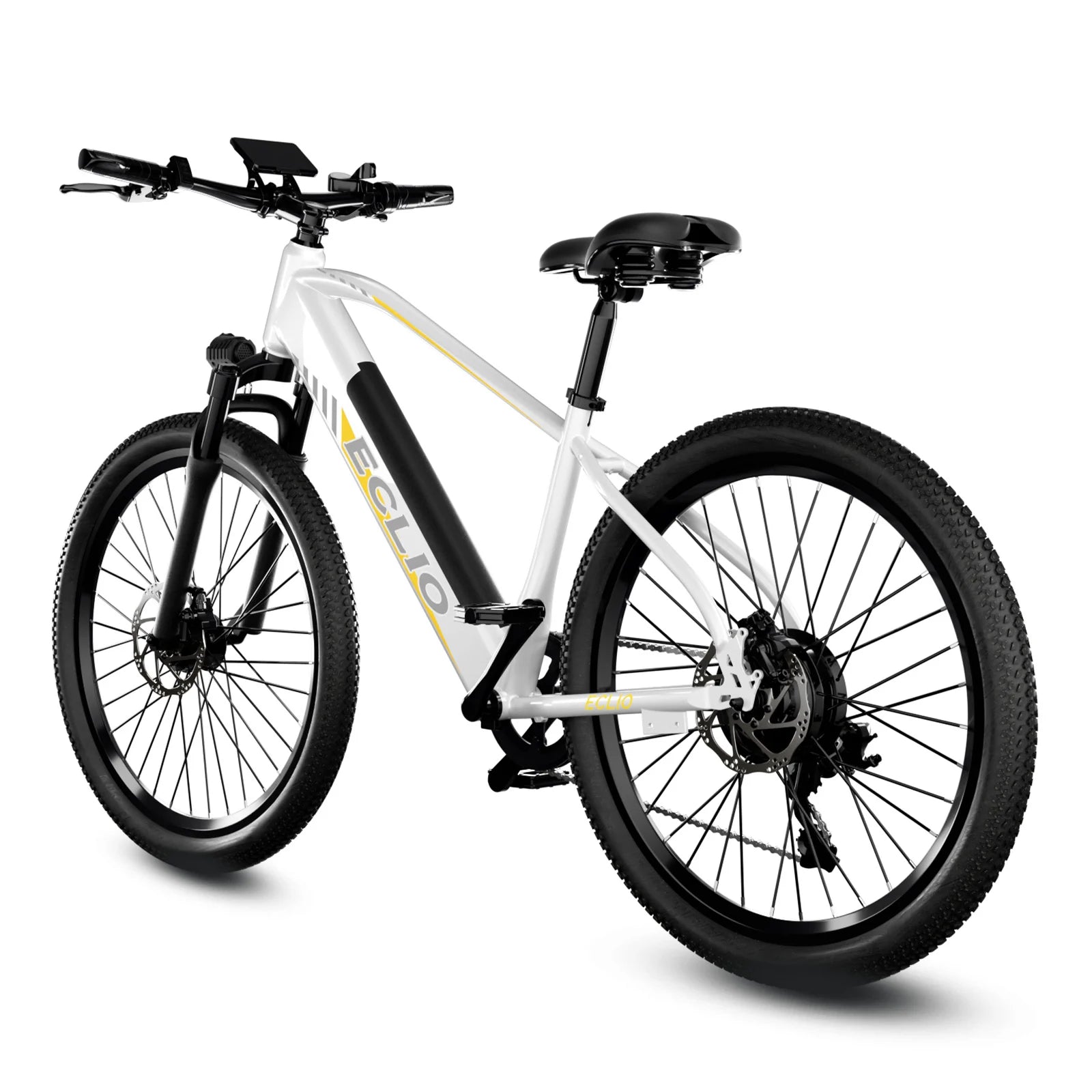

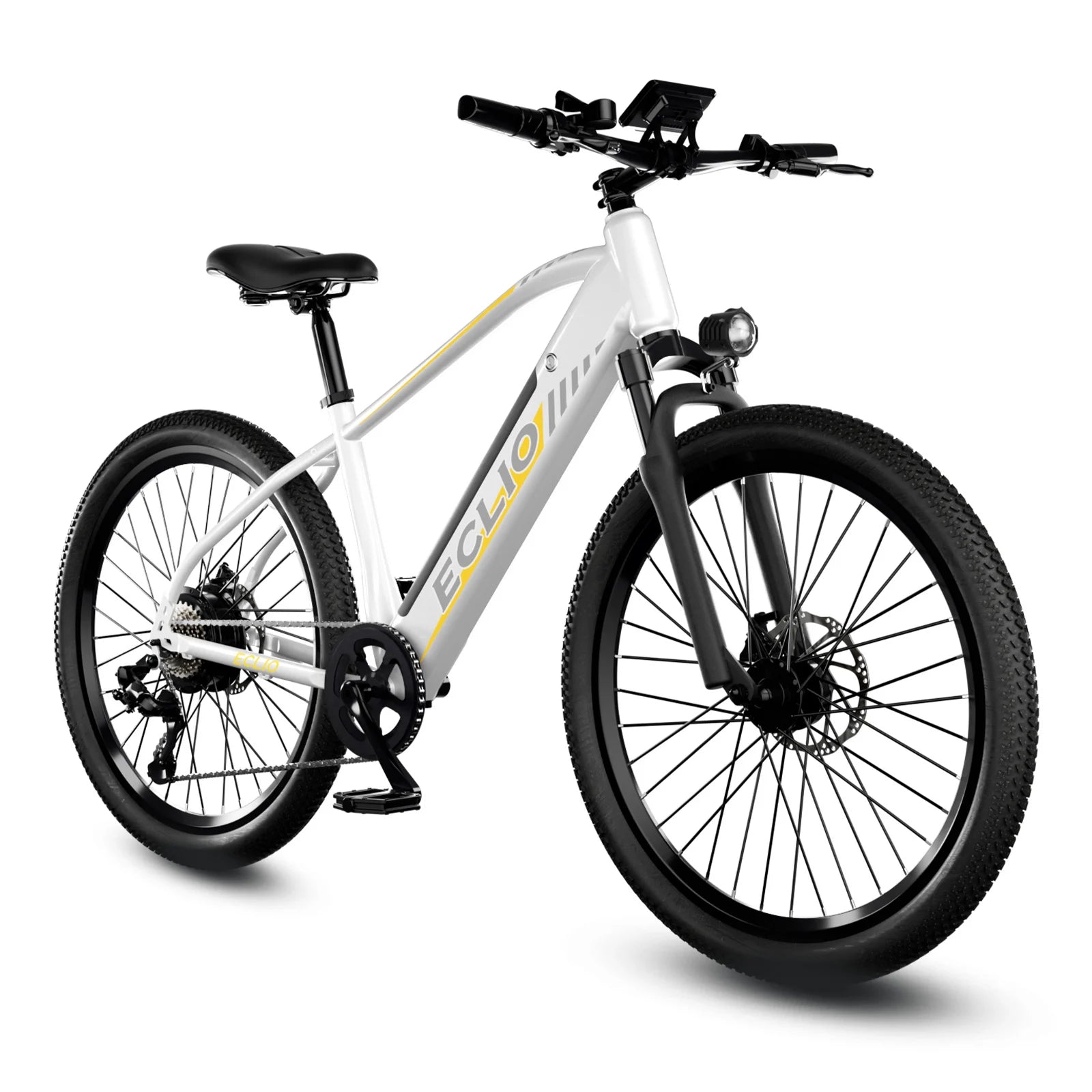

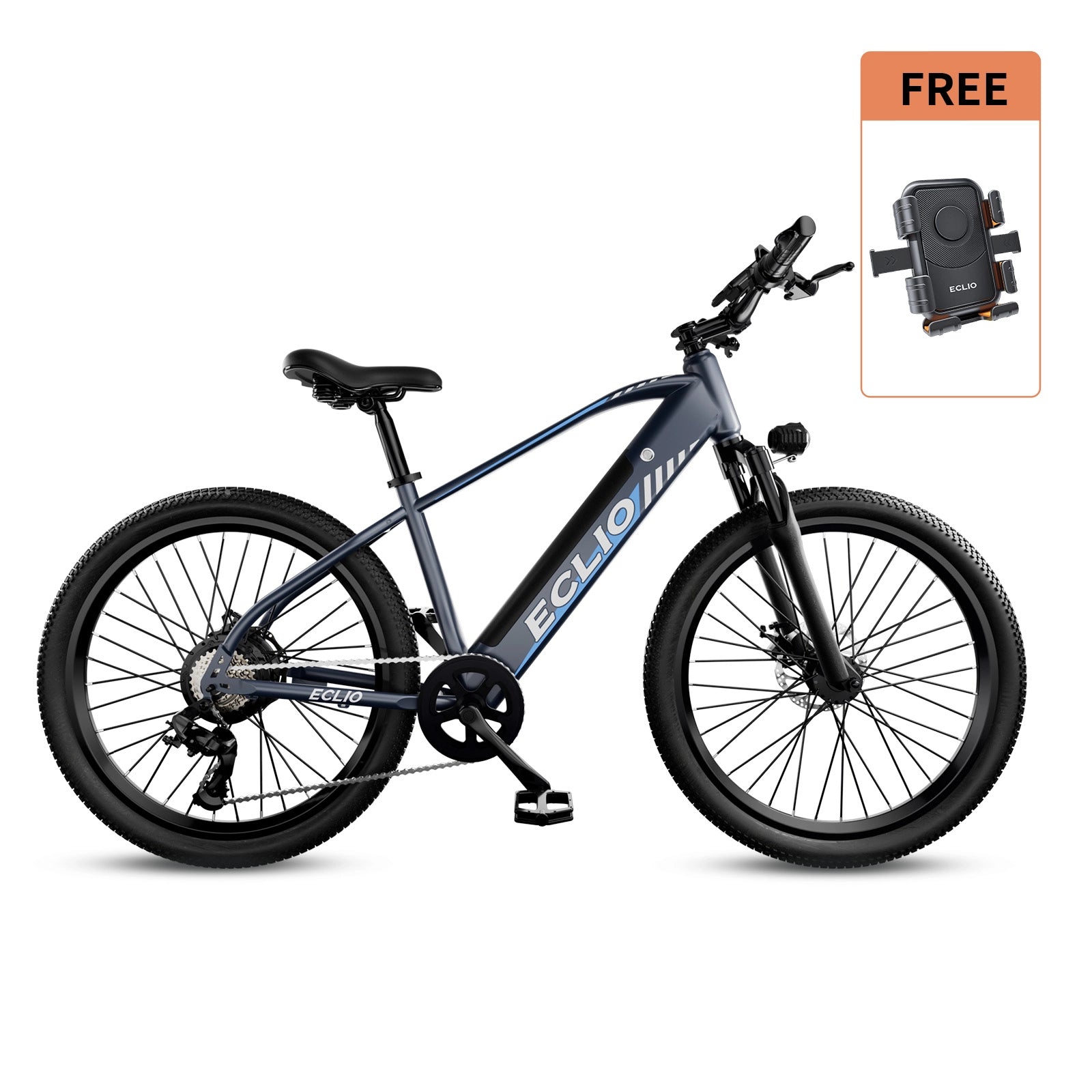

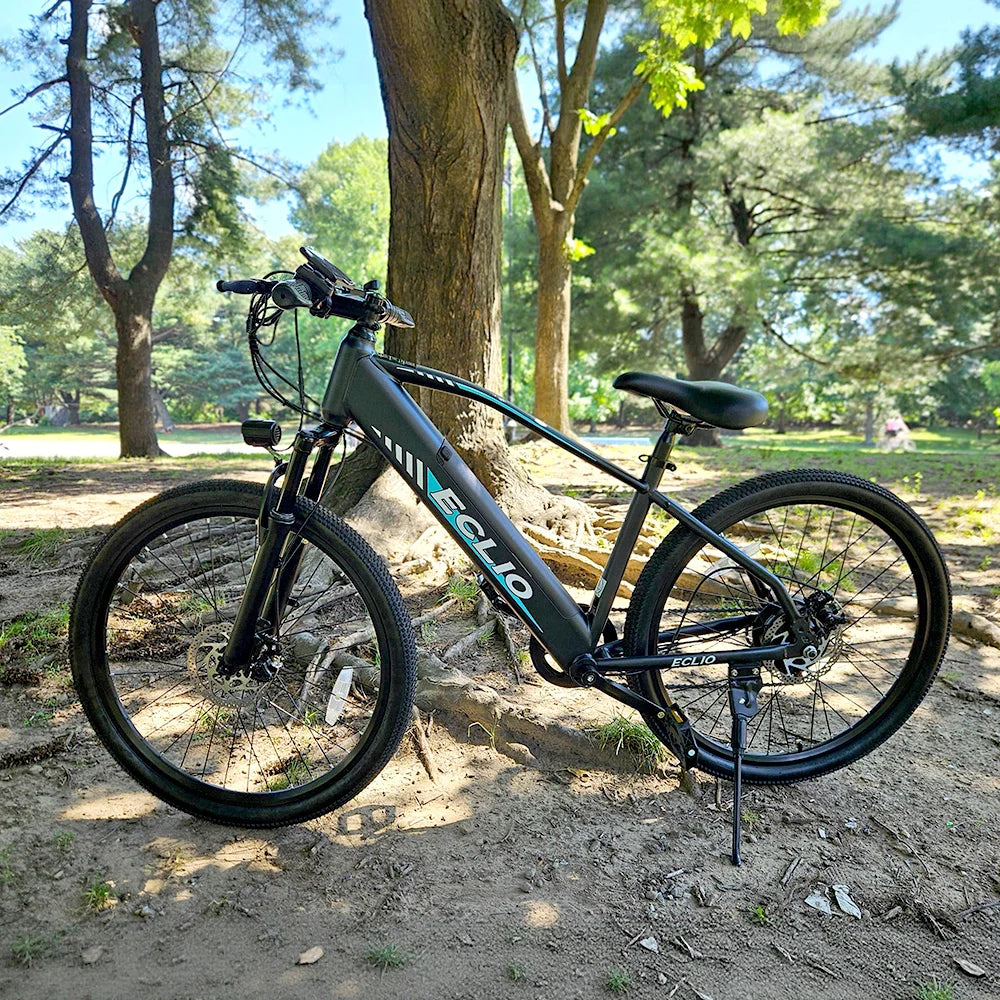

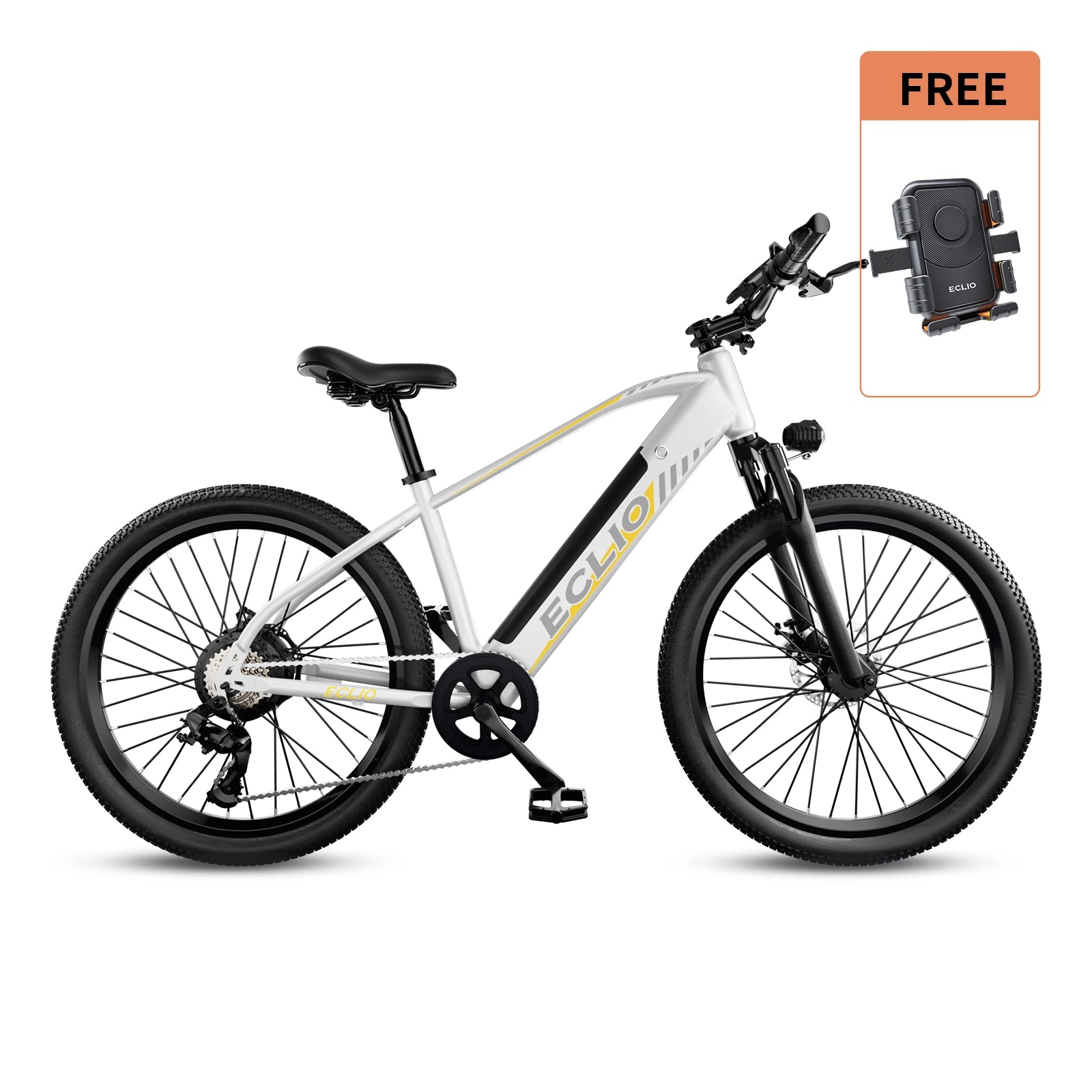

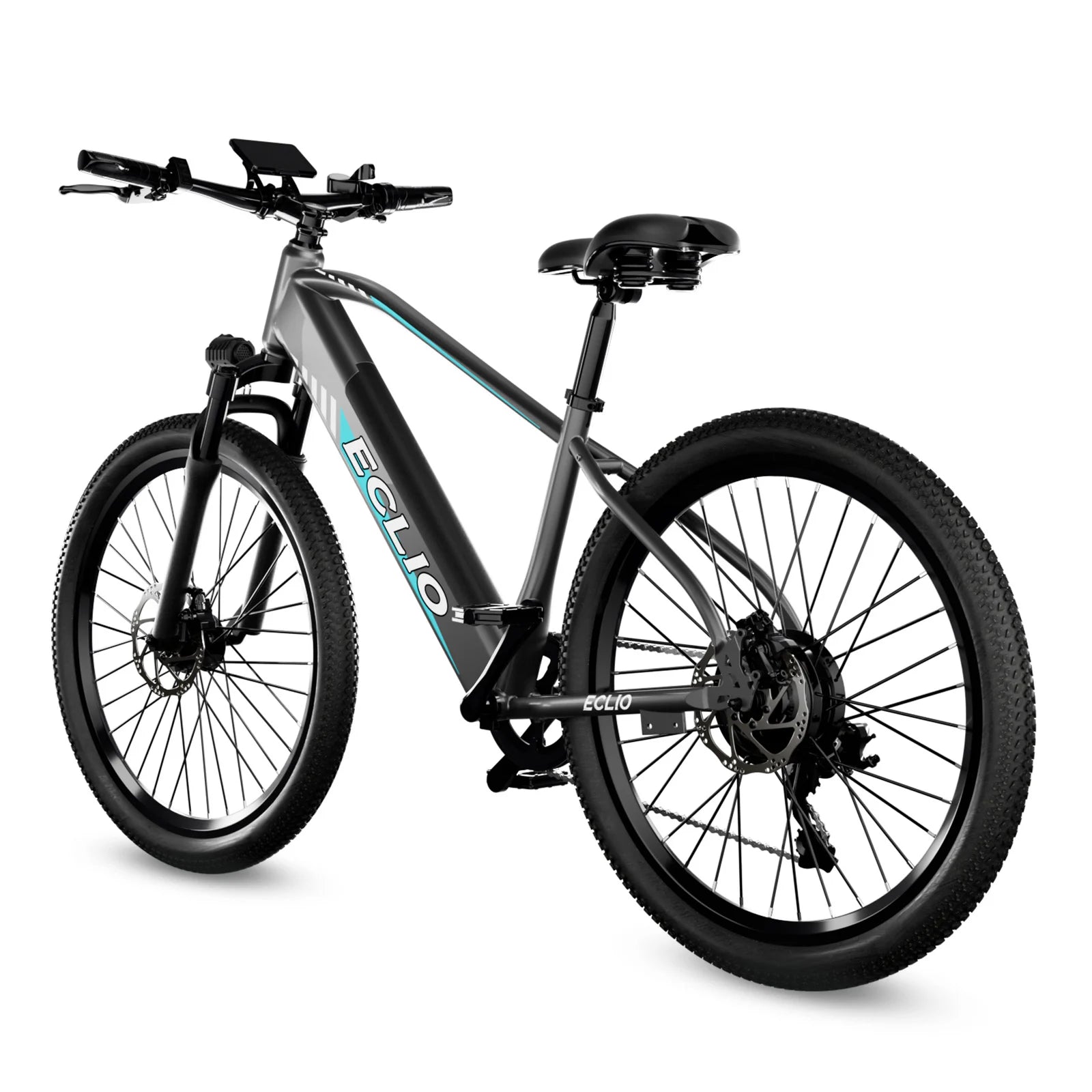

Certified with UL 2849 Safety StandardECLIO Otium M5 City Commuter Electric Bike
- Otium M5 EBike *1
- Product Manual *1
- Charger *1
- Assembly Tools *1
- Bike Pedal Set *1
Note: Please keep the box for at least 30 days in case of return or after-sales service.
All orders will be shipped within 24 hours after purchase. Orders placed during weekends or holidays will be shipped on the next business day. Most customers receive their packages within 3–7 business days. Shipping Policy
In addition, we offer a 30-day worry-free return policy to ensure a more confident and hassle-free shopping experience.
We provide a 2-year warranty service for our products to ensure long-term support and peace of mind after your purchase.
In addition, we highly recommend purchasing shipping insurance and extended product protection coverage. This will give you extra protection during delivery and daily use, making your shopping experience even more worry-free.
Quality in details
How-to Video
The Eclio M5 arrives mostly pre-assembled for quick and easy setup. Make a few adjustments, charge the battery, and you’re ready to ride. For help, refer to the installation video or contact Eclio support.
ELECTRONICS
Motor

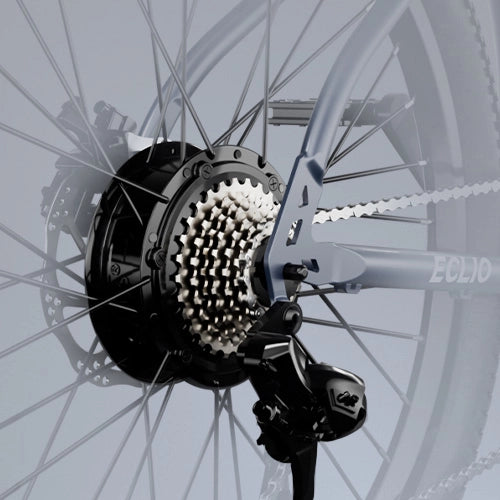

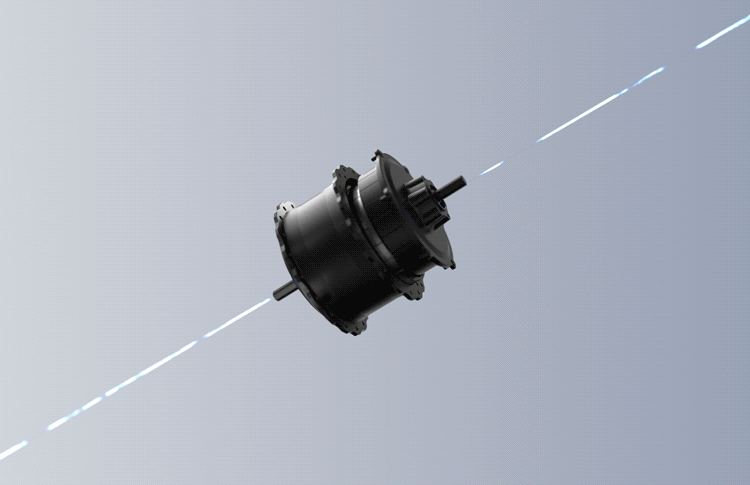

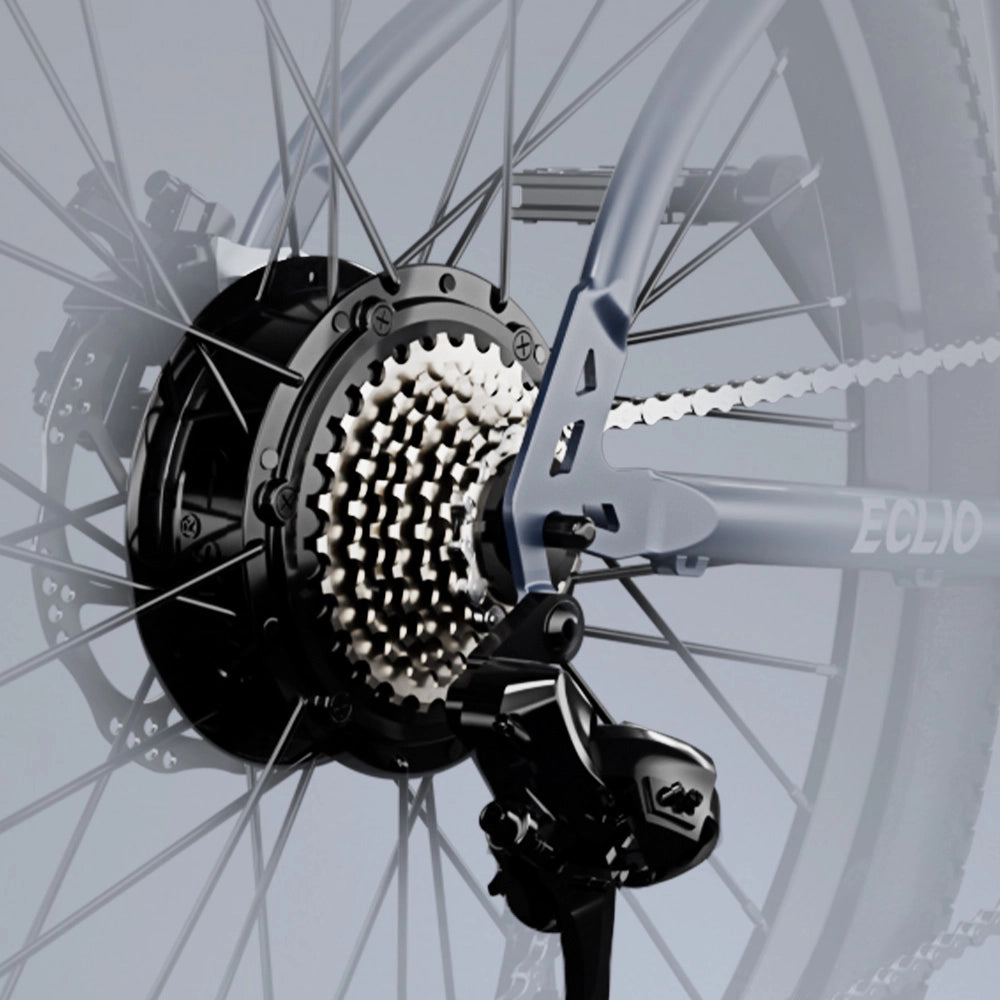

750W Peak Rear Hub Motor (45 Nm Torque)
Sensor
Speed Sensor
Display
3' LCD Display
Battery
48V 10Ah, 480Wh, IPX5 Lithium-ion Battery.
Controller
48V Controller with 6 MOSFETs
Lights

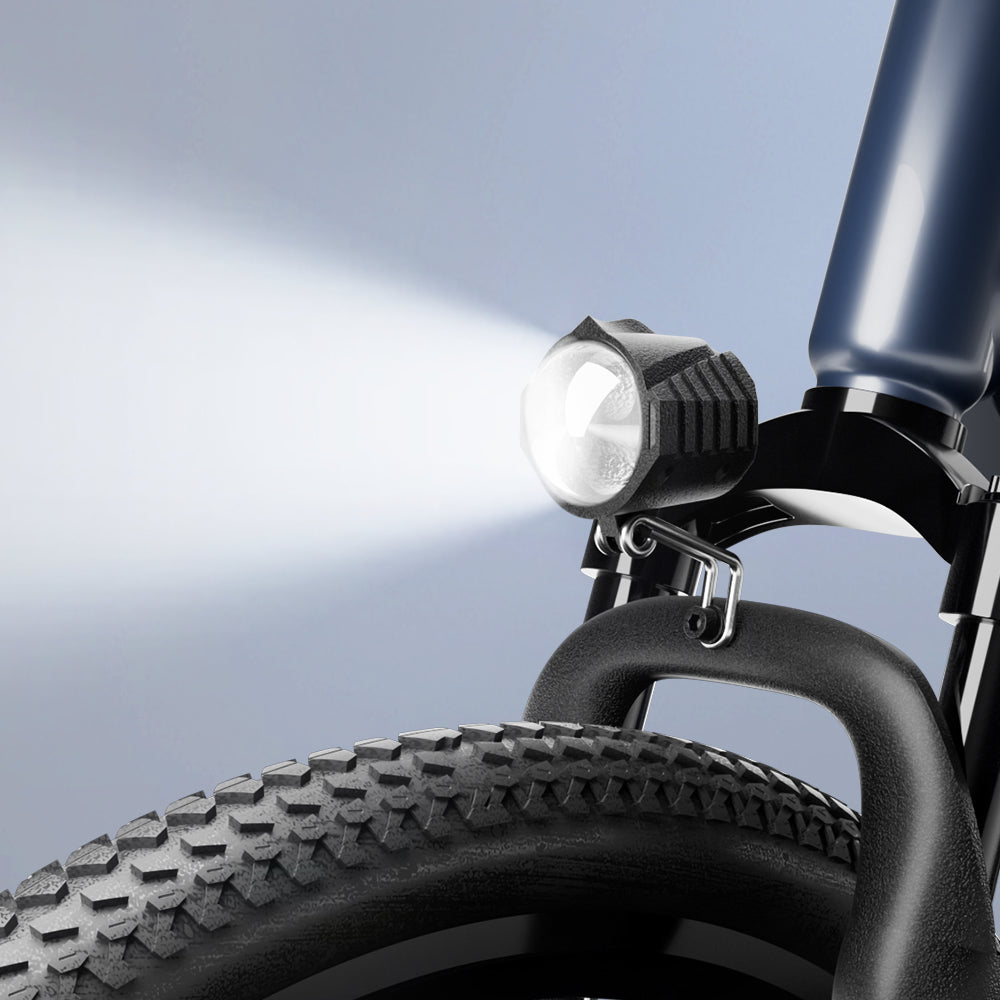

50 Lux LED Head Light
PERFORMANCE
Default Max Speed
20 mph*The motor will stop giving assist at the stated top speed. This limit is set in accordance with local regulations.
Throttle Range
30 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Pedal Assist Range
Up to 50 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Climbing Ability
9°. The actual performance would depend on therider's physical strength.
COMPONENTS
Front Fork
100mm mechanical spring suspension fork.
Drivetrain

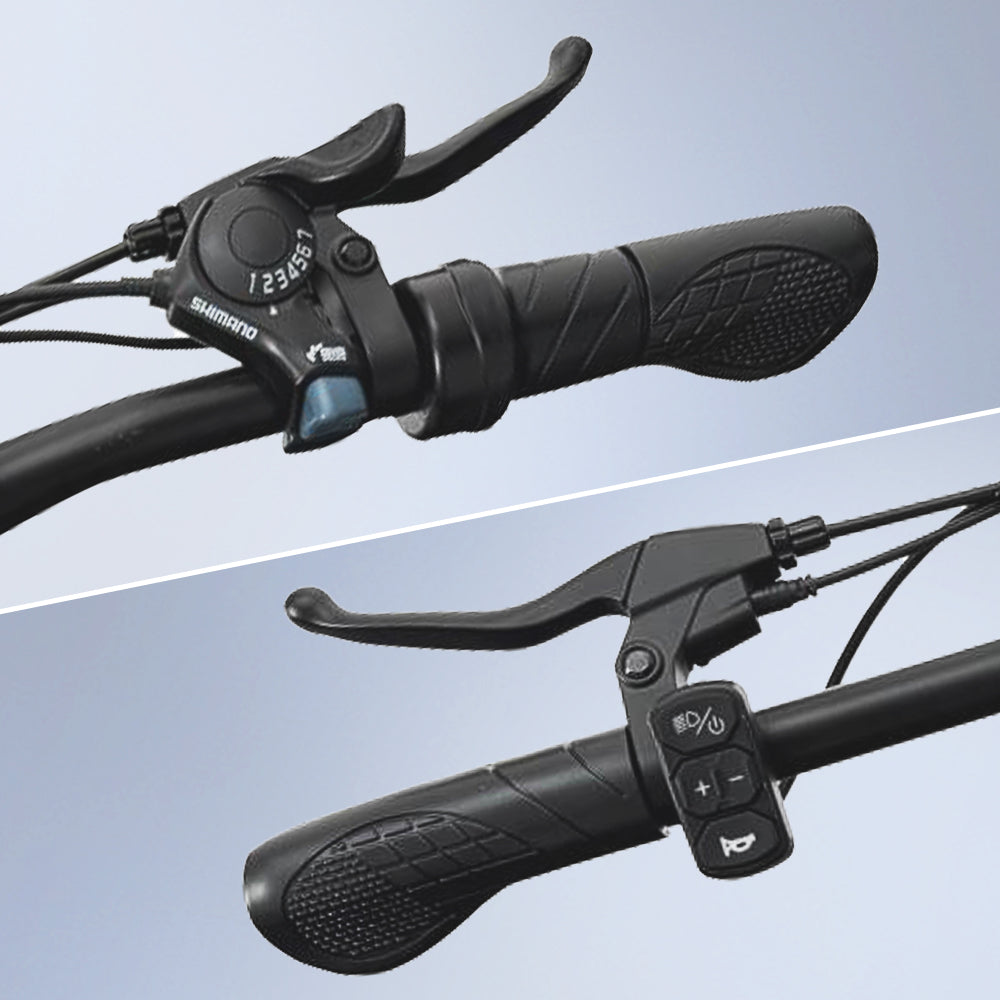

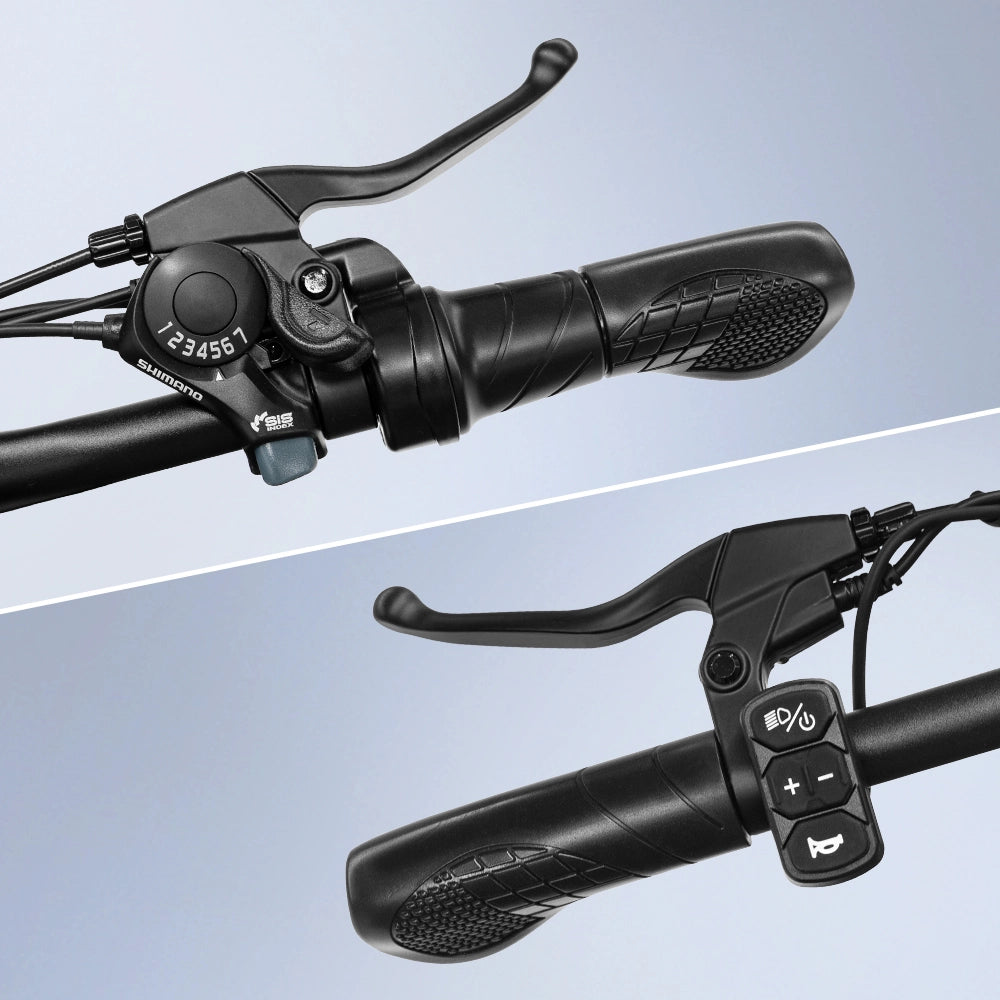

Shimano TZ500 7-speed drivetrain

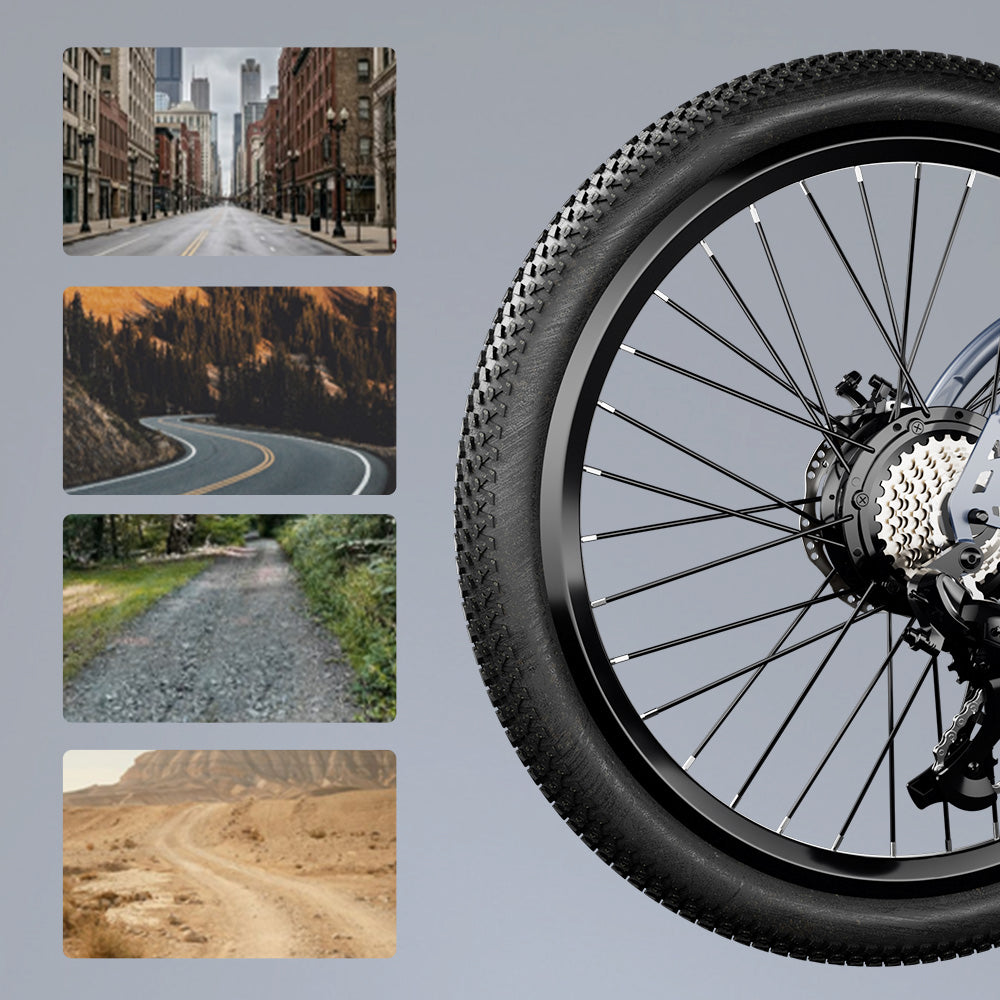

Tire
26*2.125
Brake

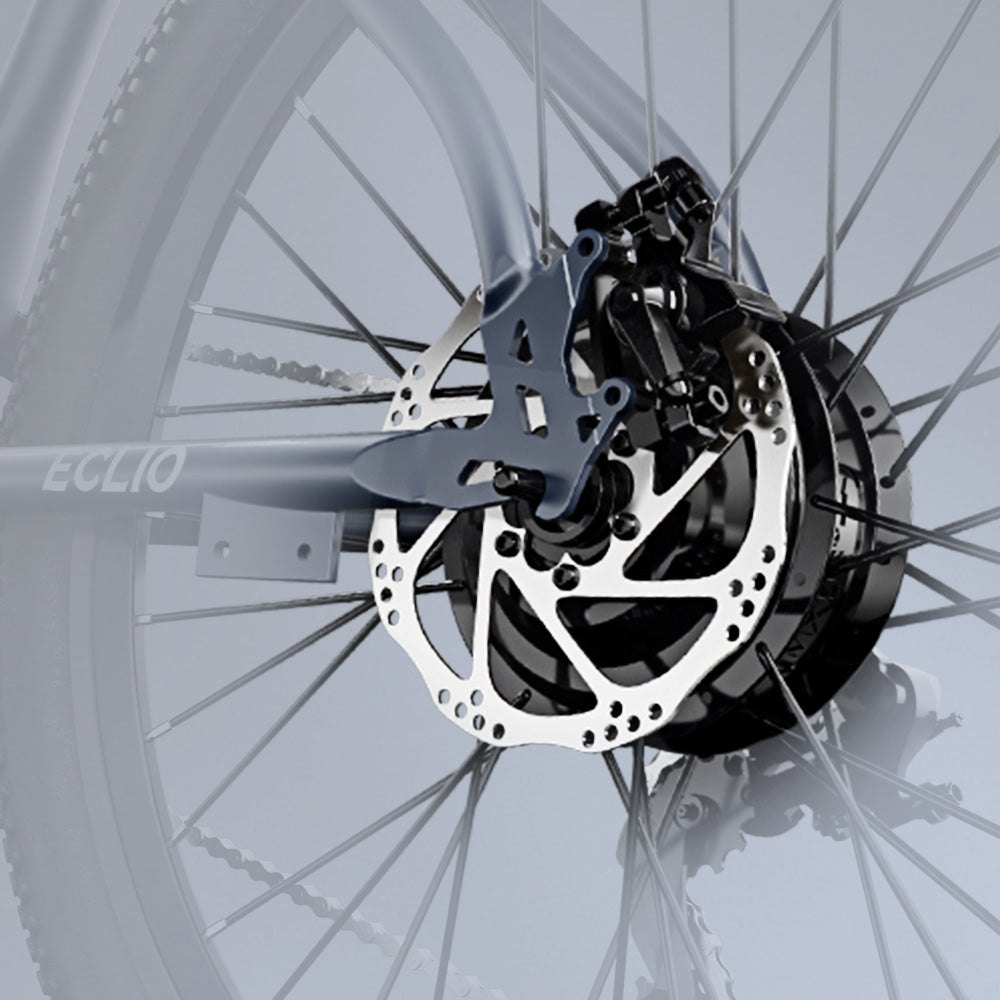

Disc Brake System
Wheels
26" aluminum alloy wheels.
Crankset
40T Crankset
Weight
Net weight: 55.88 lbs/ 25.4 kg (including battery)
Geometry
SYMBOL
mm/ inch
A
B
C
D
E
F
G
SYMBOL
mm/ inch
Handlebar Width
A
695/ 27.36''
Reach
B
360/ 14.17''
Headtube Height
C
980/ 38.58''
Standover
D
650/ 25.59''
Wheelbase
E
1057/ 41.61''
Seat Tube
F
410/ 16.14''
Seat Height
G
800-945/ 31.5-37.2''
