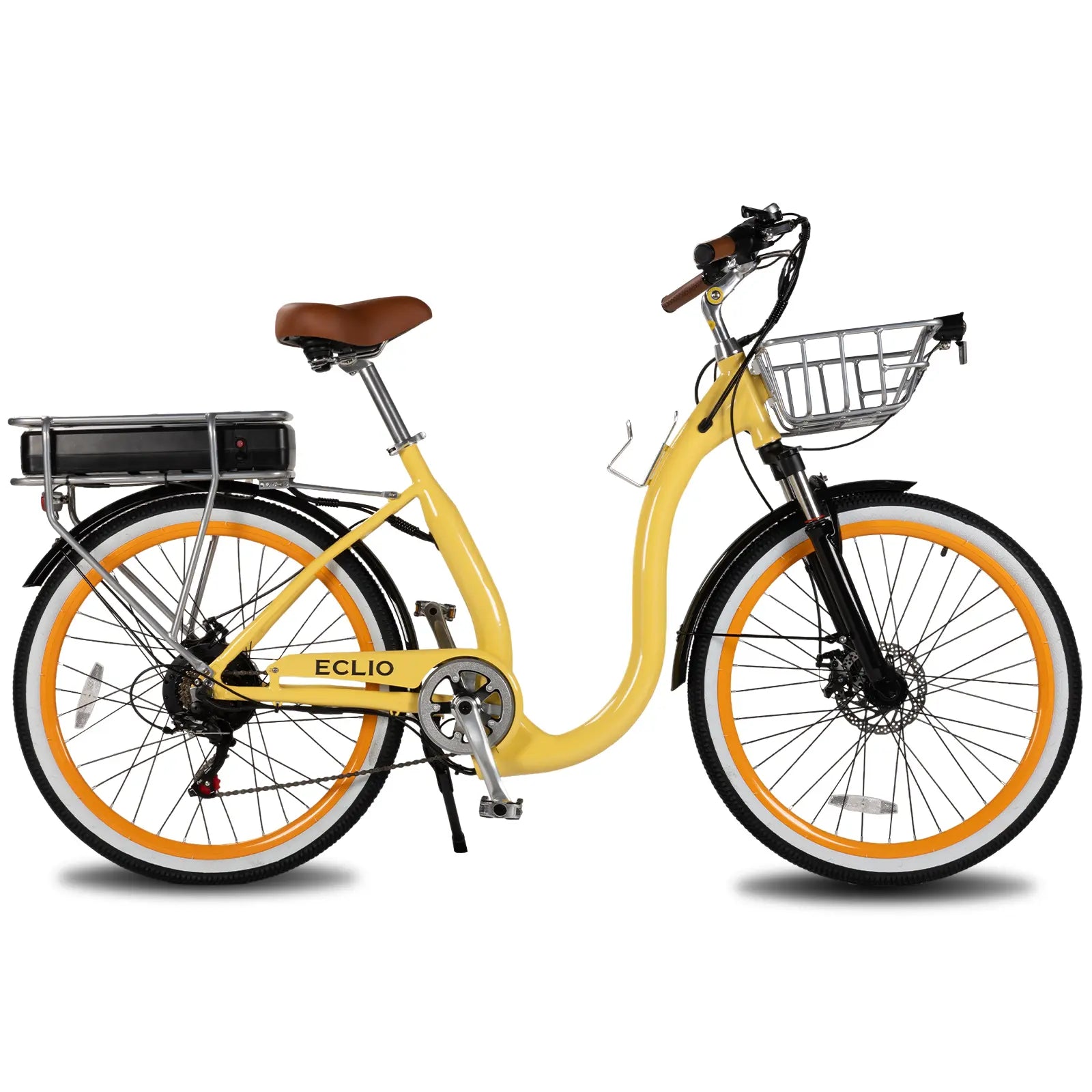

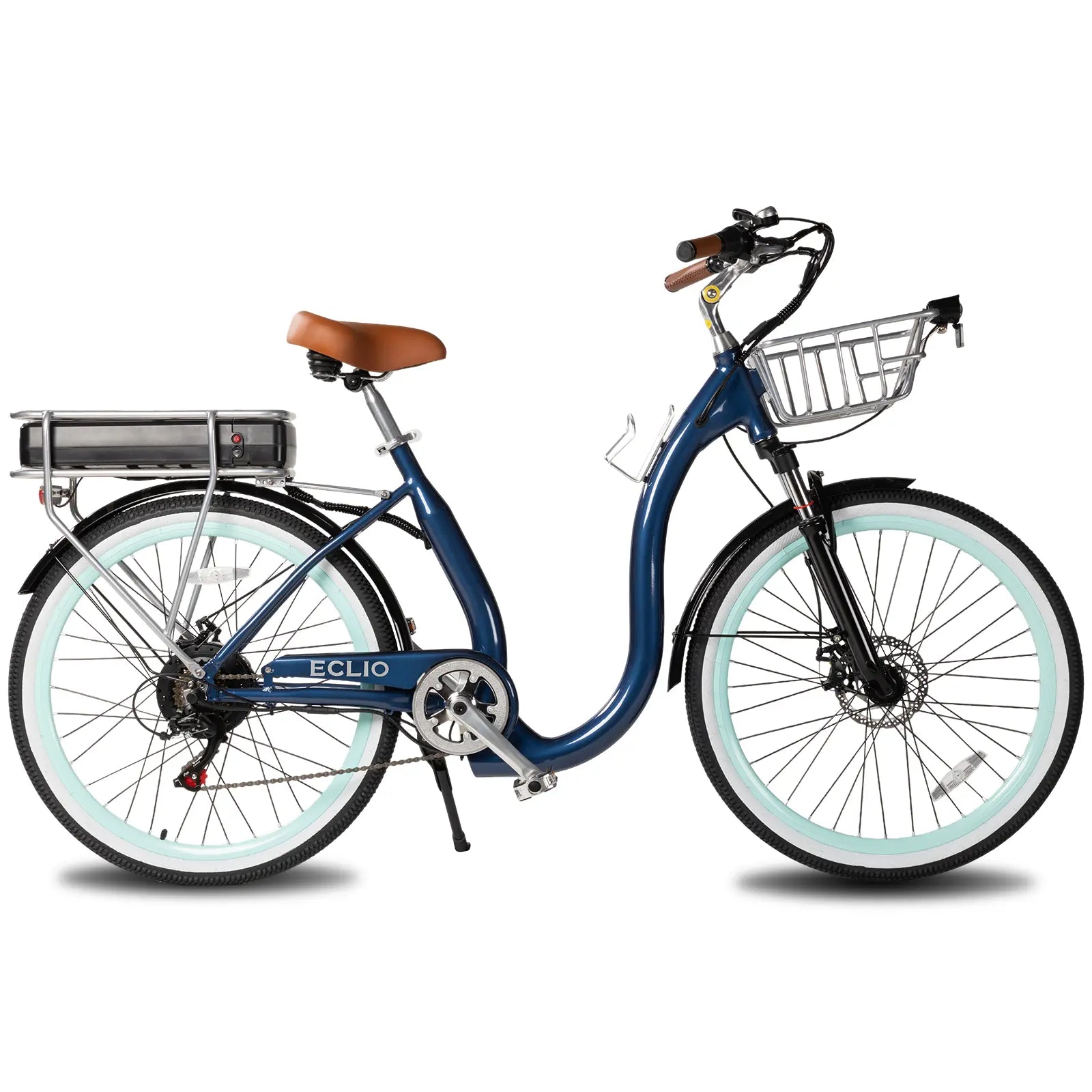

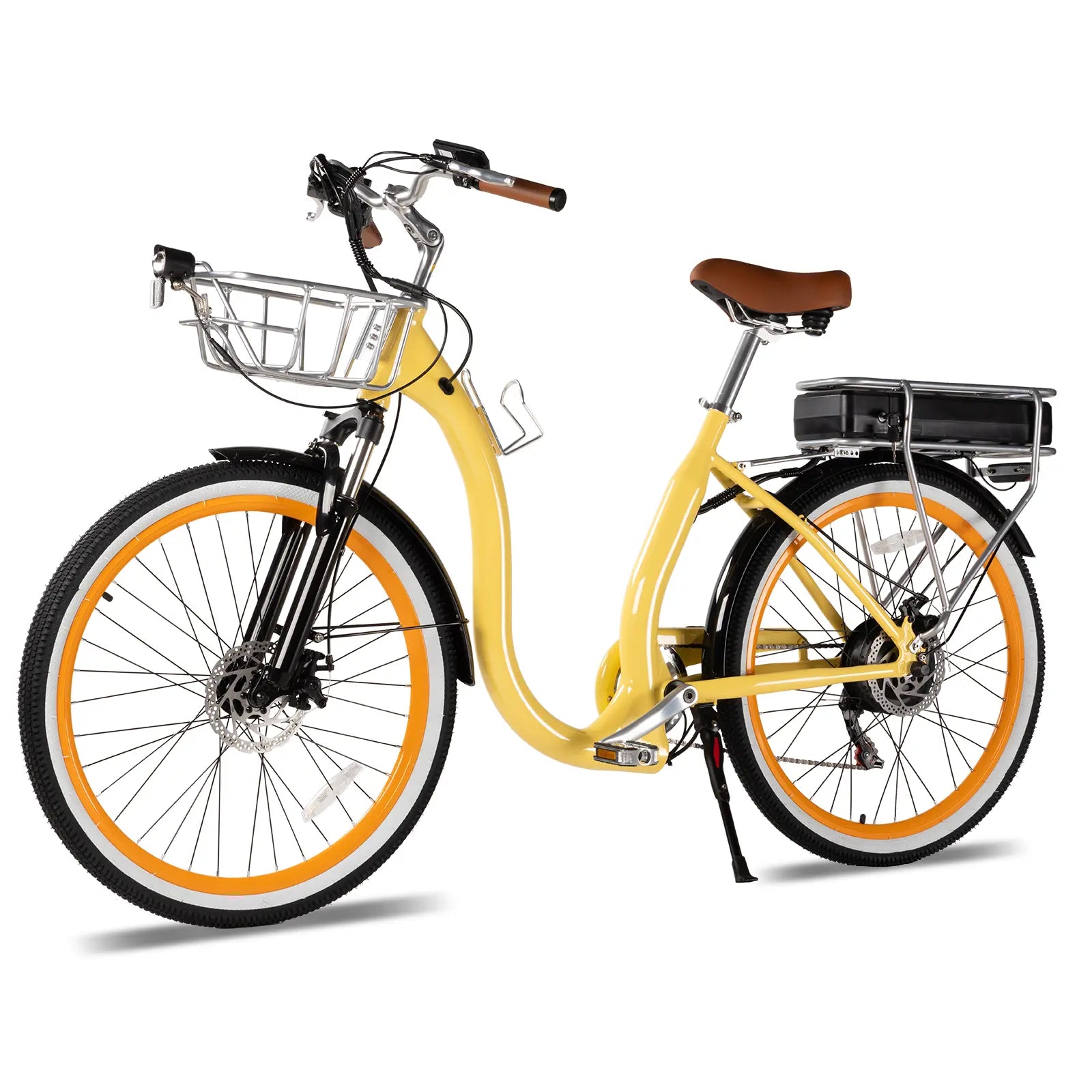

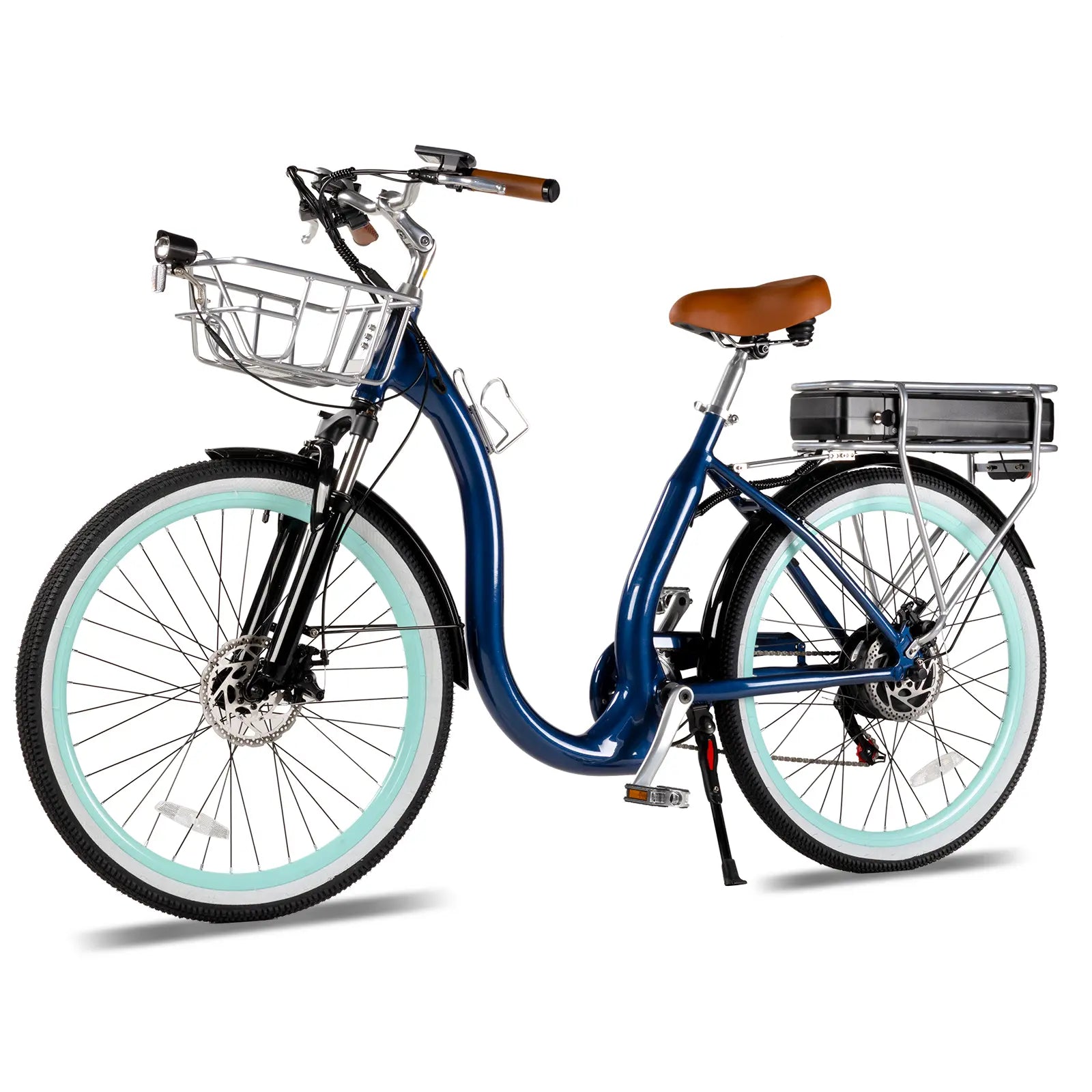

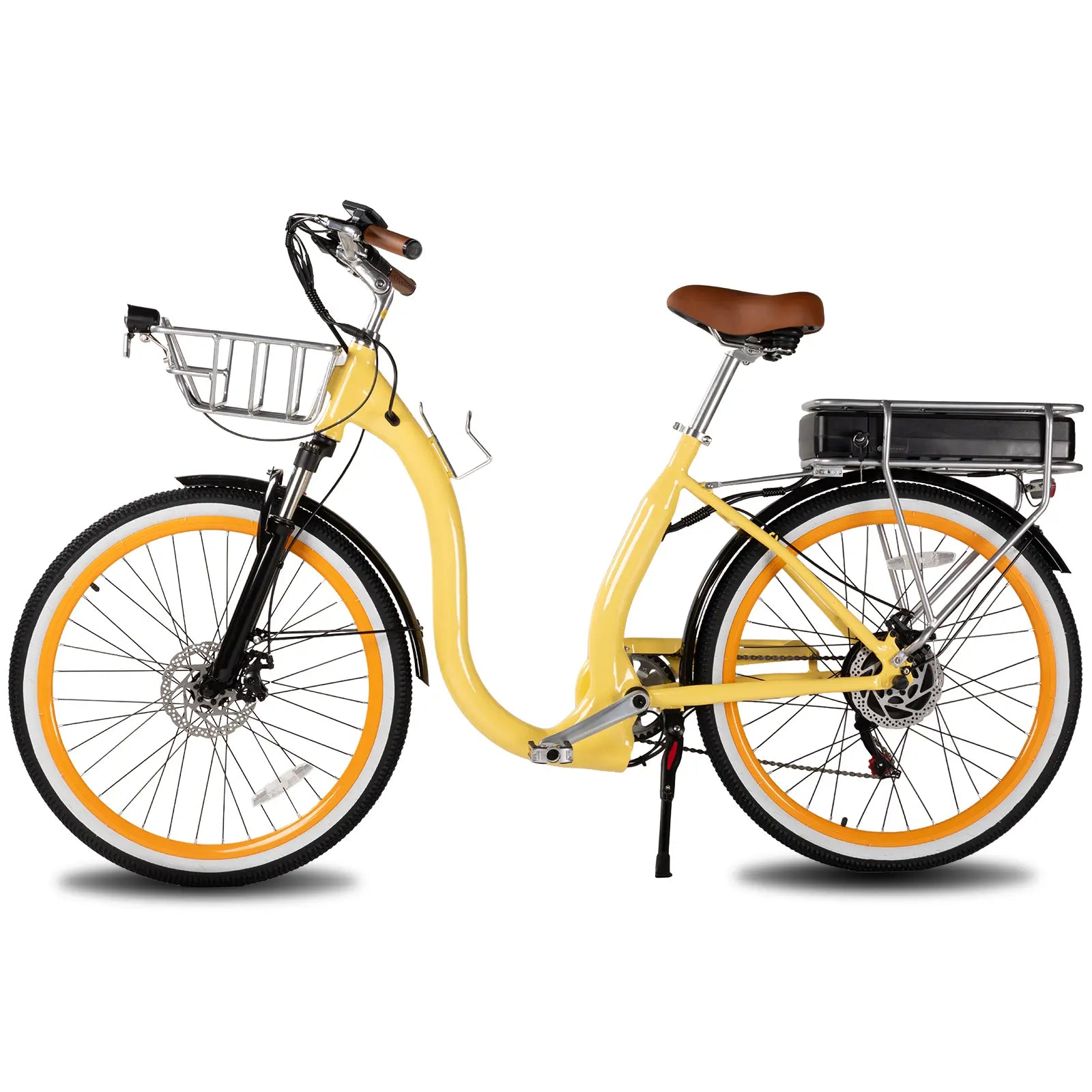

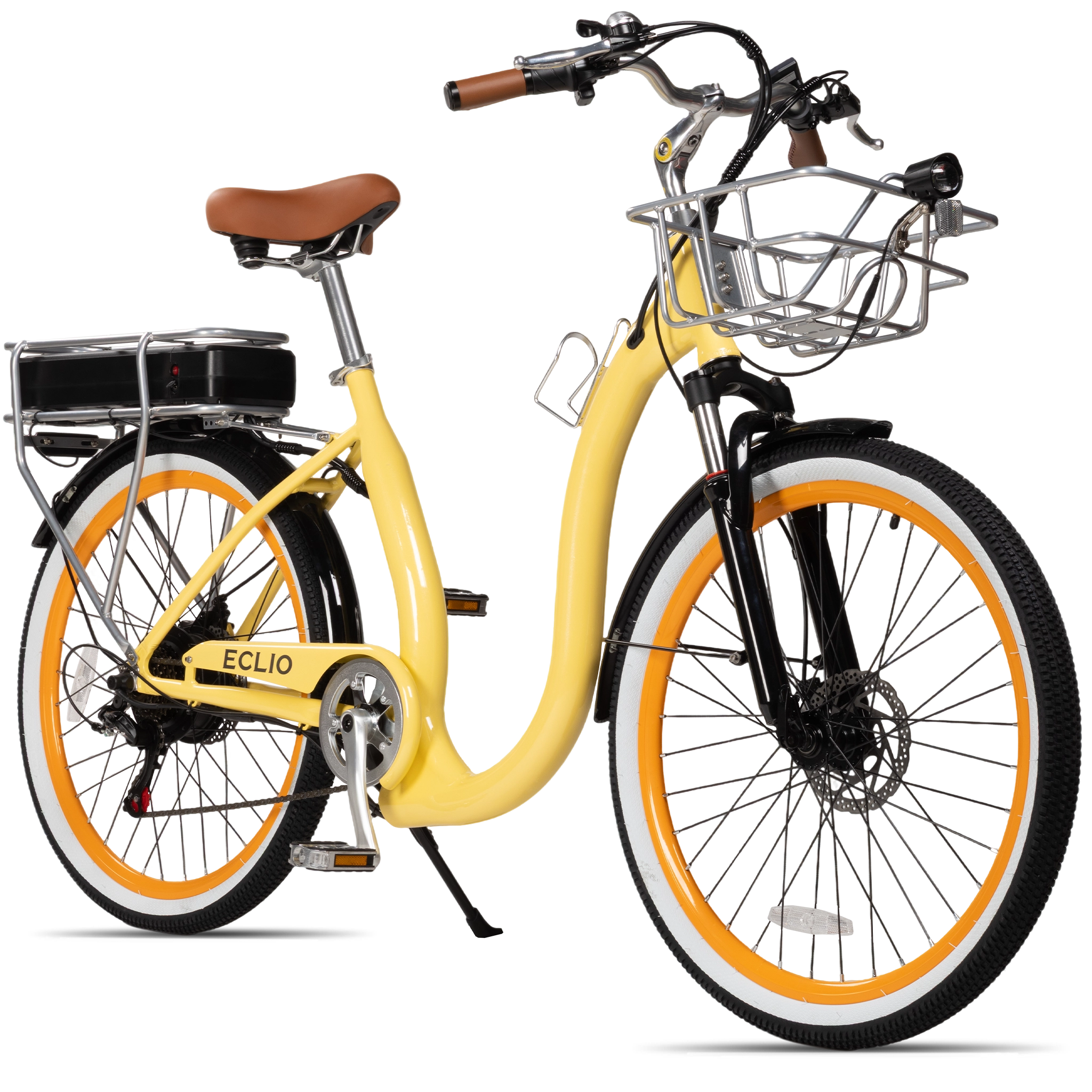

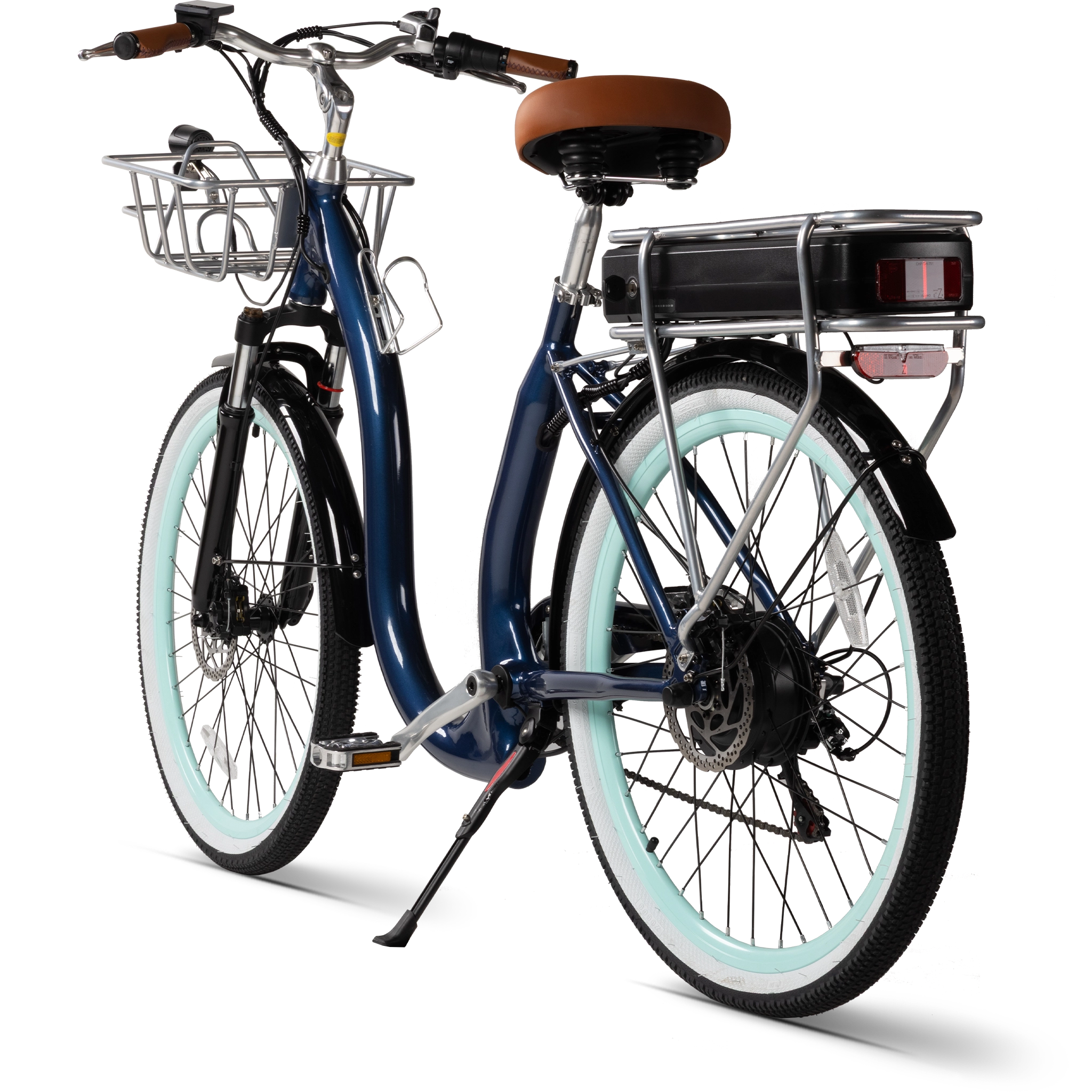

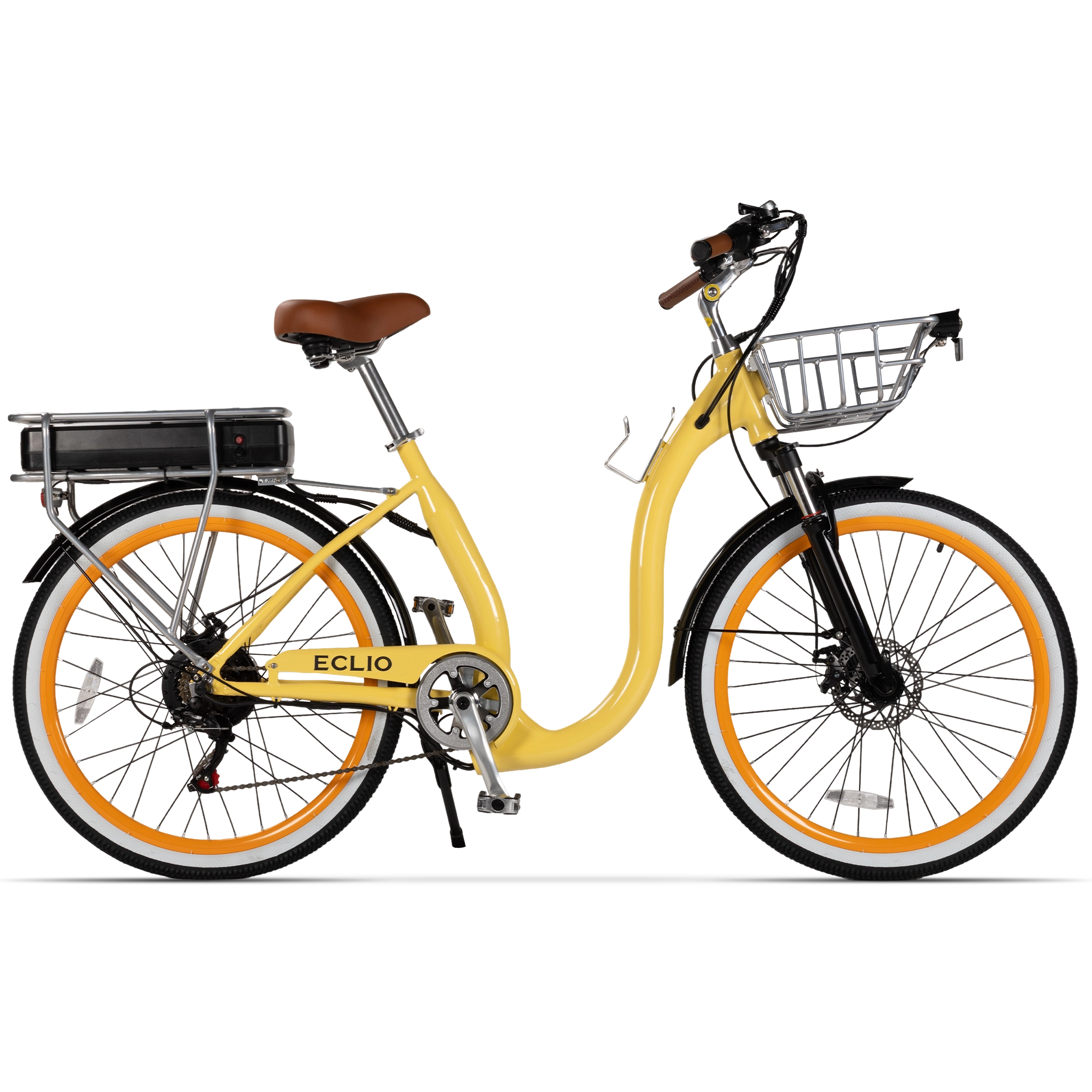

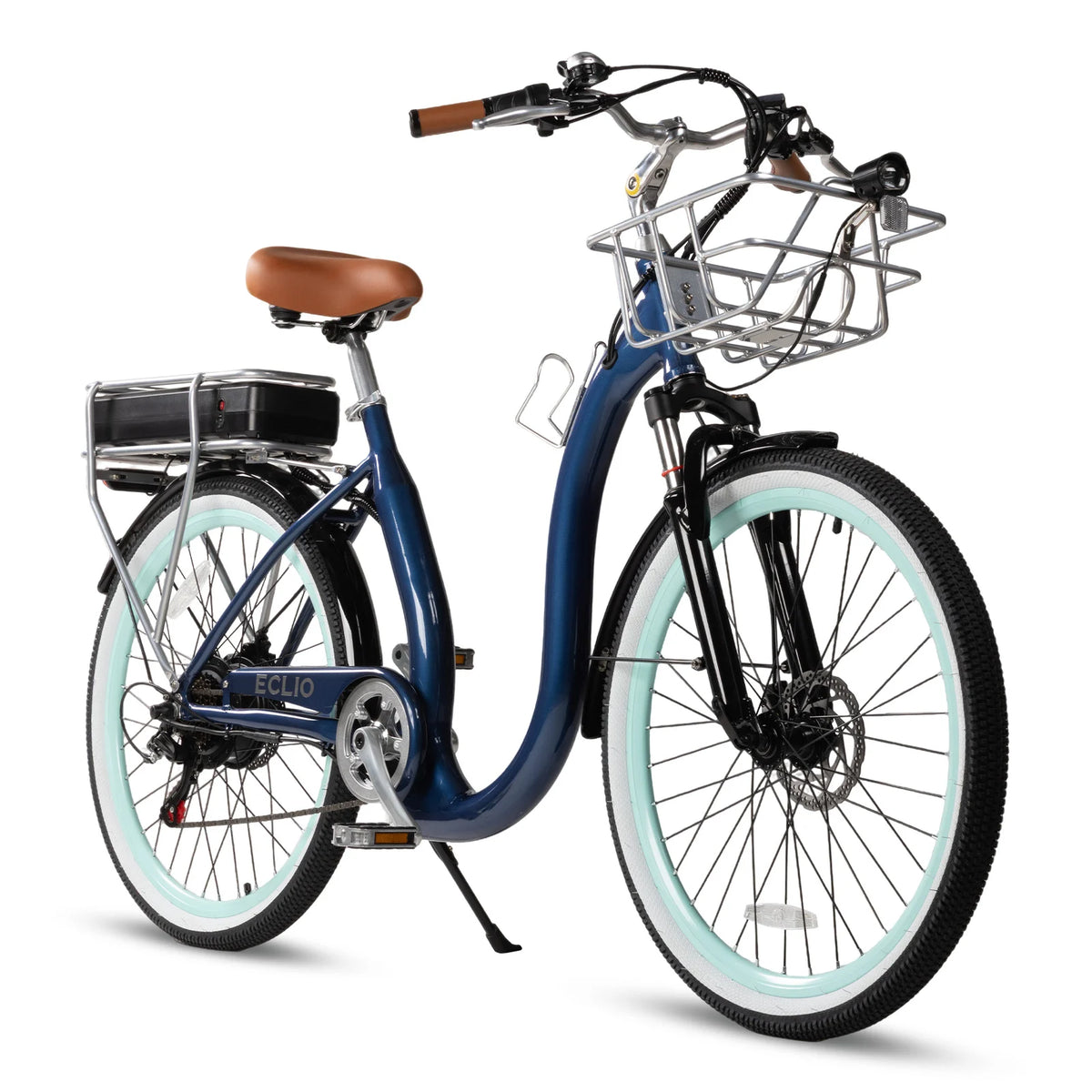

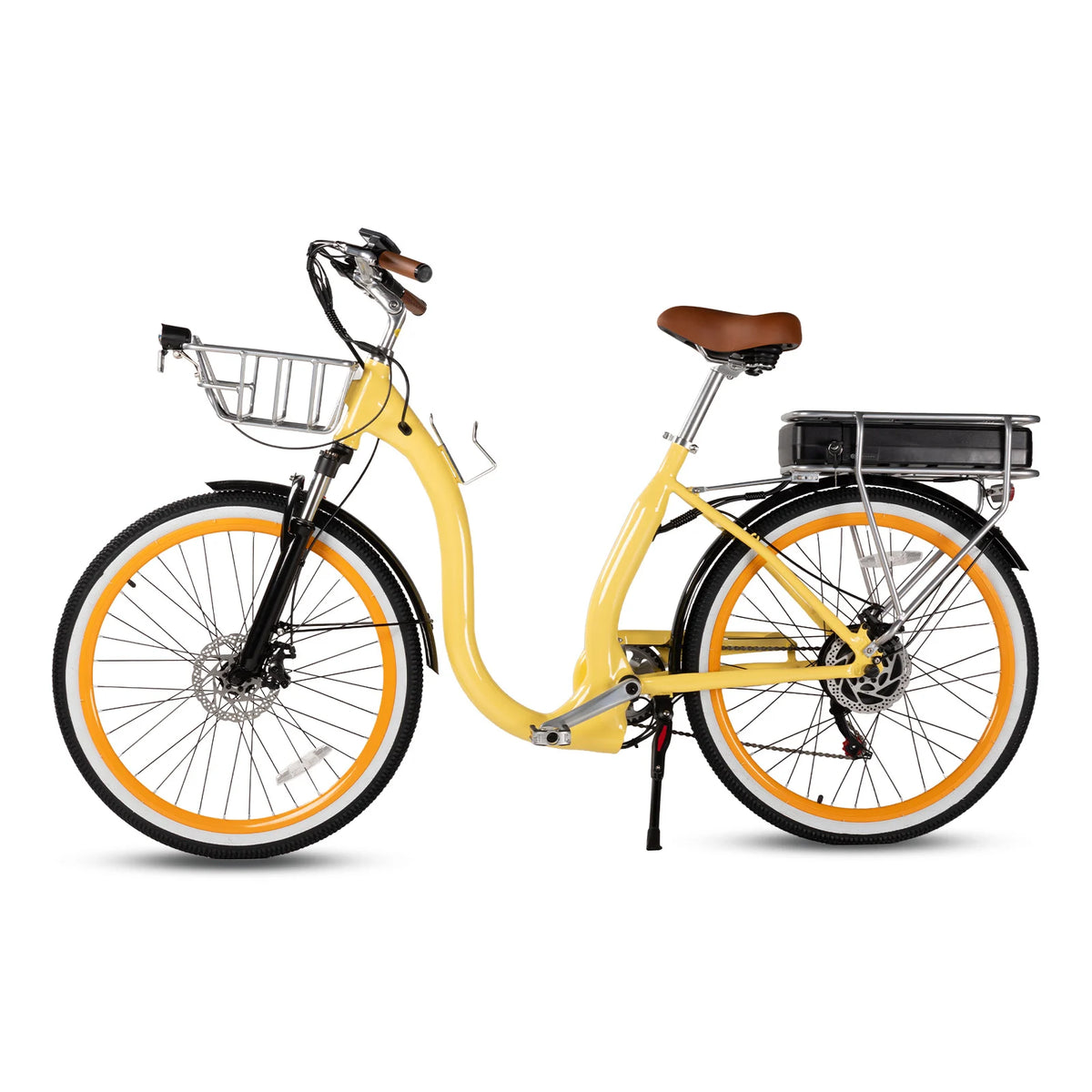

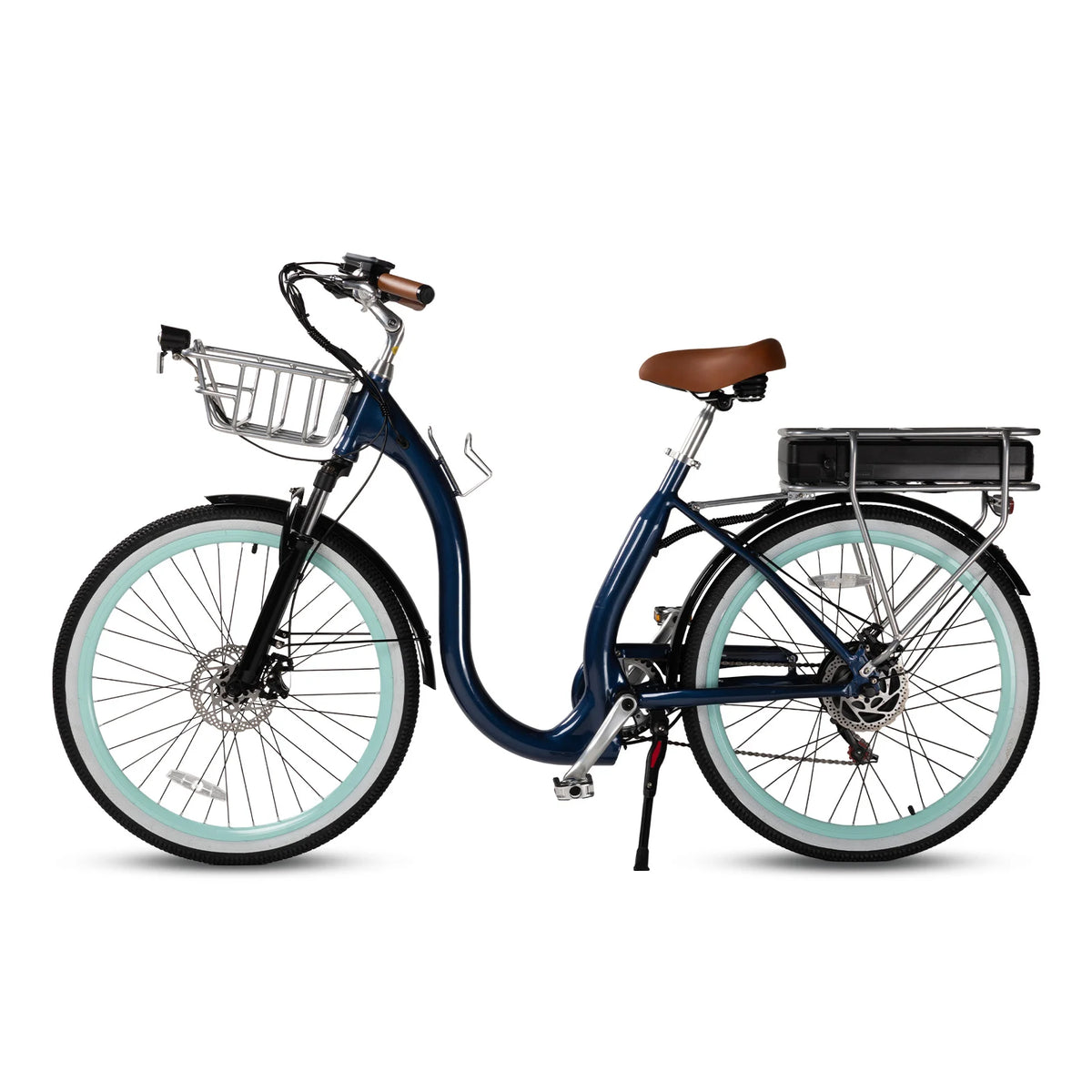

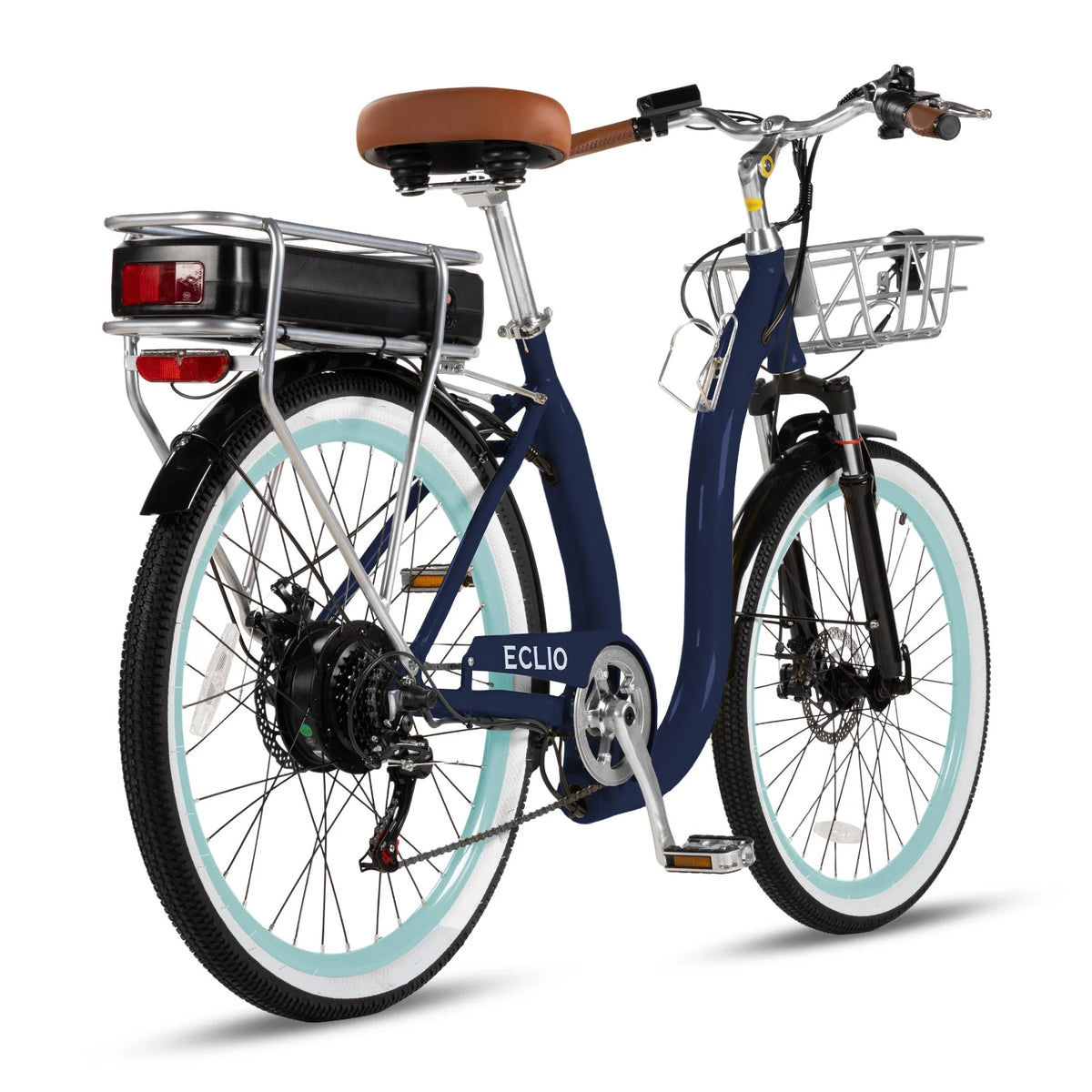

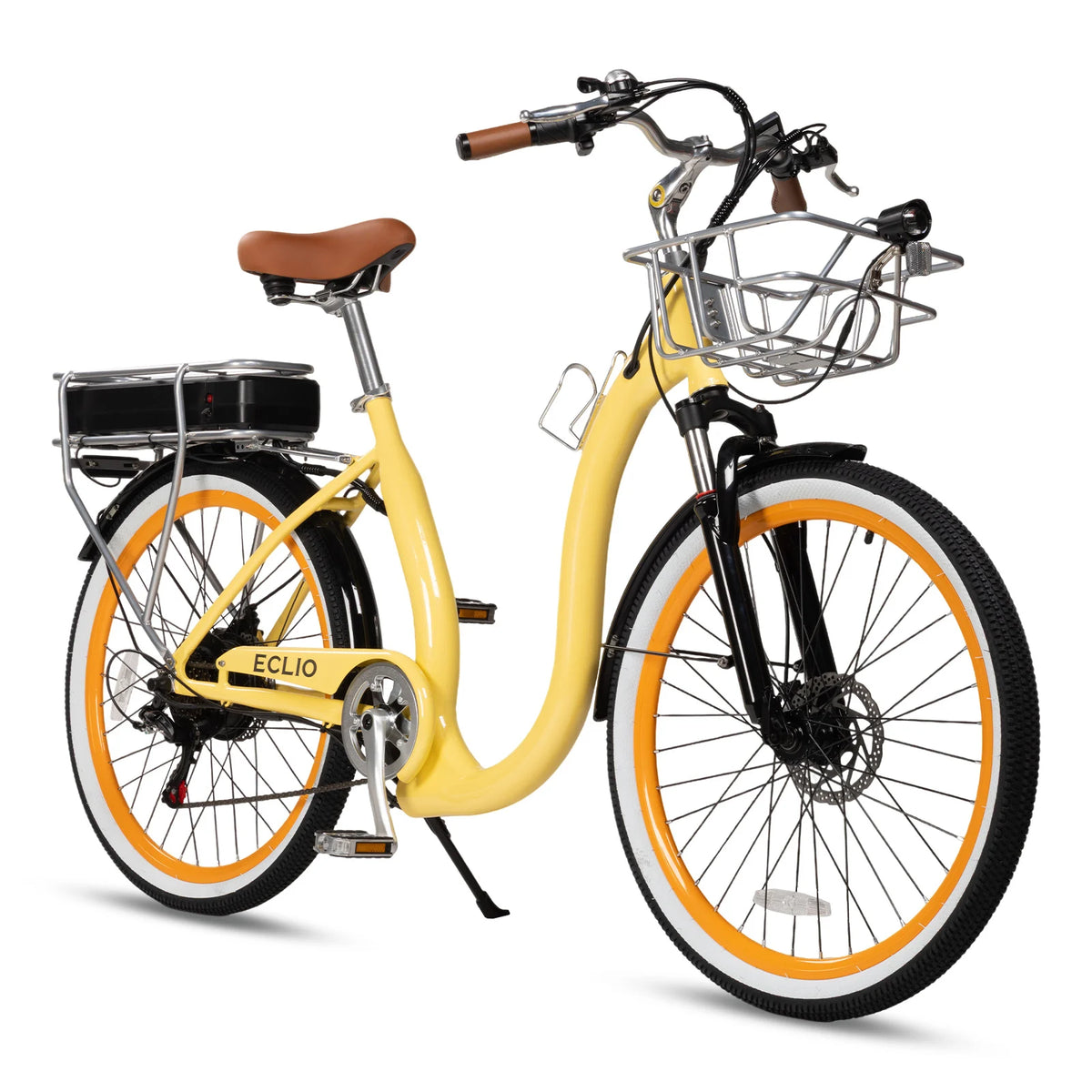

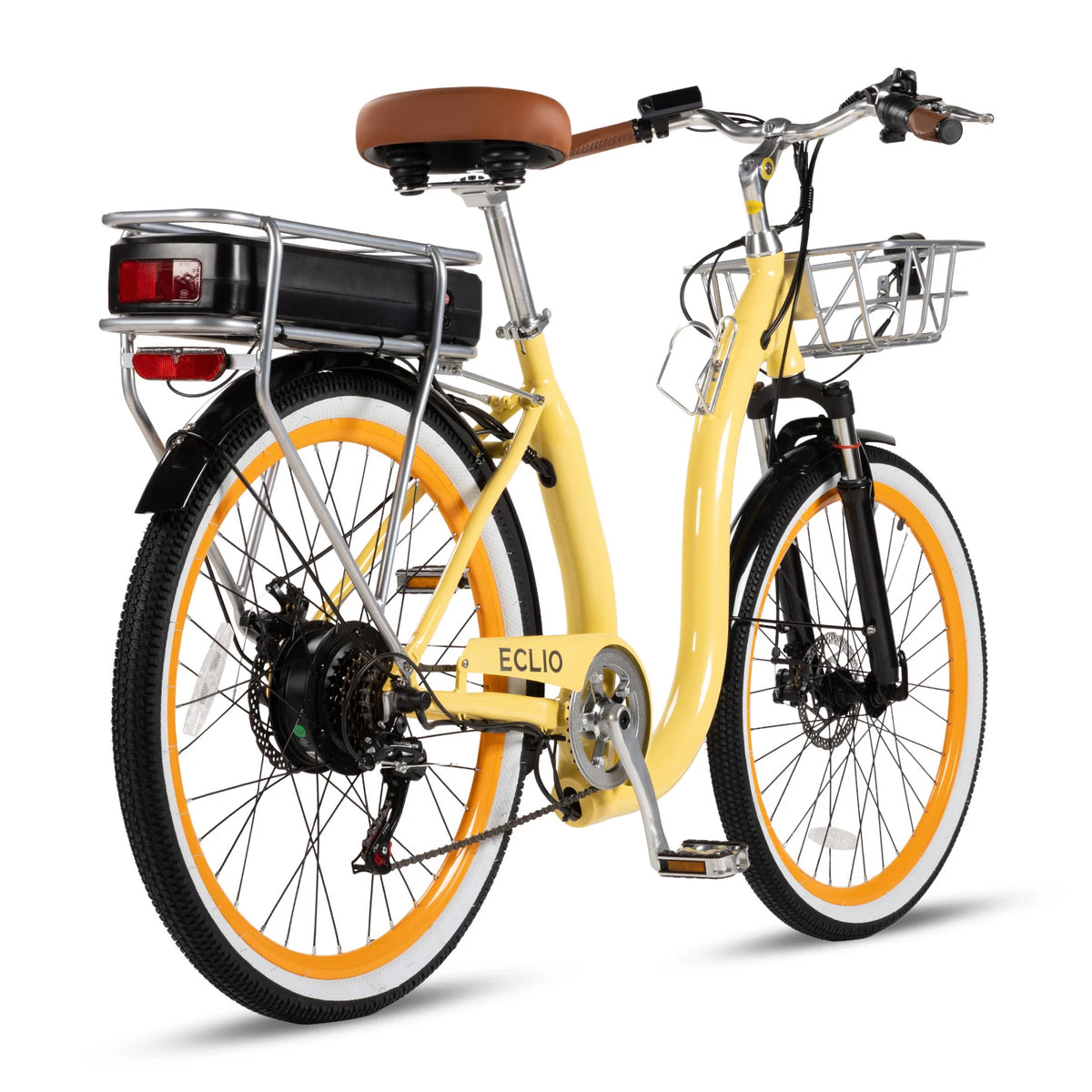

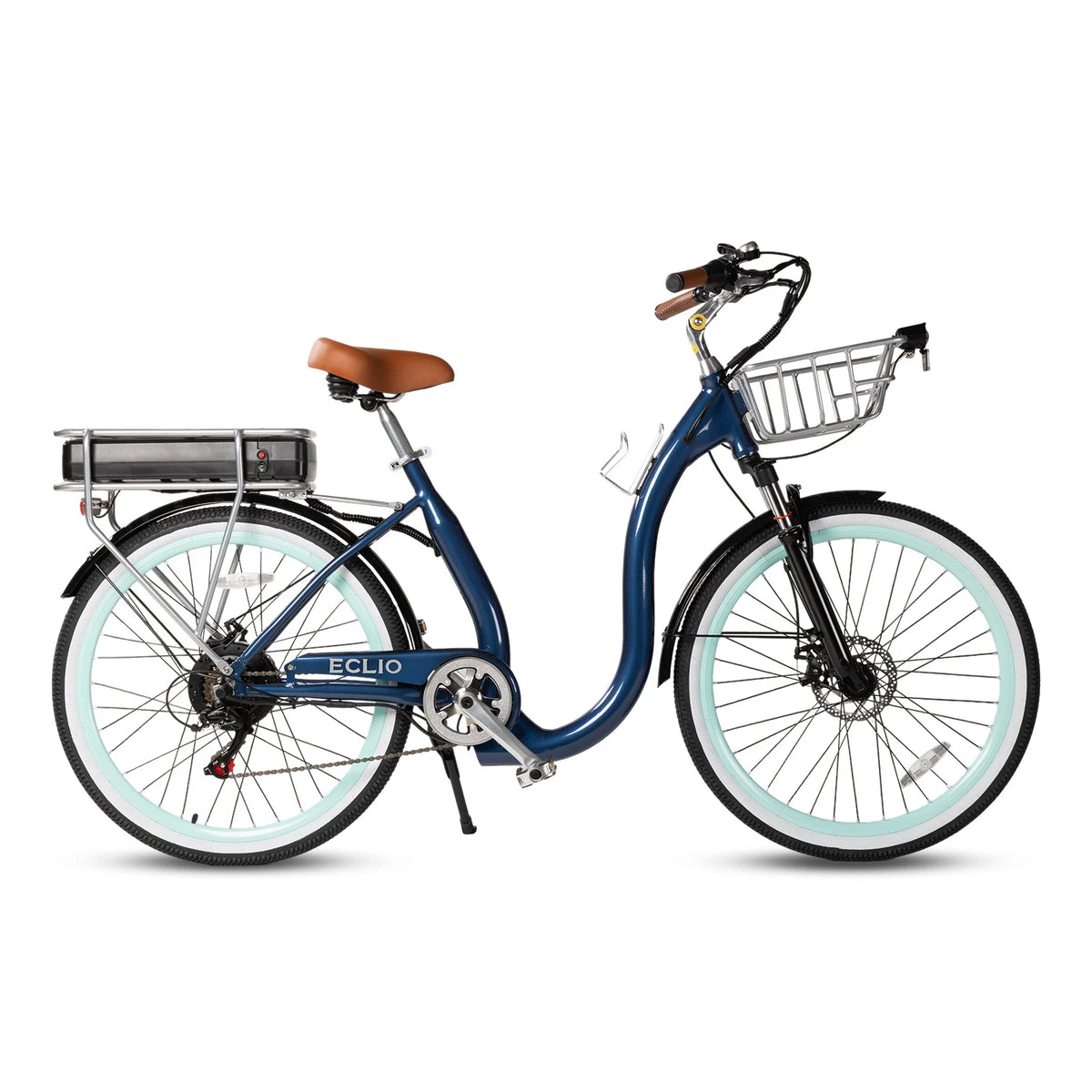

ECLIO C02 Lightweight City Cruiser Electric Bike
| 800W Motor | 28 MPH Top Speed | Up to 60 Miles | NFC Smart Unlock
Made for Every Rider. Ride Easy. Ride Confident
Built with stability, strength, and thoughtful geometry, this e-bike is made for riders of all ages and body types.
Made for Every Rider. Ride Easy. Ride Confident
Built with stability, strength, and thoughtful geometry, this e-bike is made for riders of all ages and body types.
Clean. Seamless. Refined.
Crafted with a smooth, weld-free appearance, the frame delivers a sleek look while maintaining exceptional structural integrity.
Clean. Seamless. Refined.
Crafted with a smooth, weld-free appearance, the frame delivers a sleek look while maintaining exceptional structural integrity.
Every Detail, Engineered for Excellence
How-to Video
The Eclio C02 arrives mostly pre-assembled for quick and easy setup. Make a few adjustments, charge the battery, and you’re ready to ride. For help, refer to the installation video or contact Eclio support.
ELECTRONICS
Motor
800W Peak Rear Hub Motor (65 Nm Torque)
Sensor
Cadence Sensor

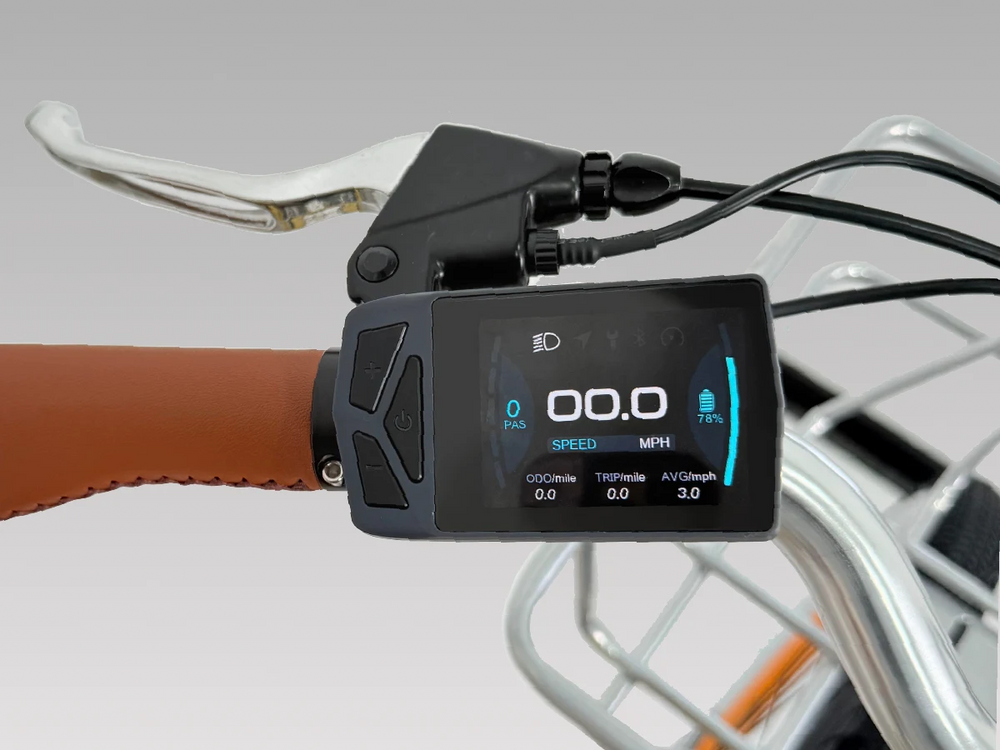

Display
2.4' TFT, LCD Display
Battery
48V 16Ah, 768Wh, IPX5 Lithium-ion Battery.
Controller
48V Controller with 9 MOSFETs

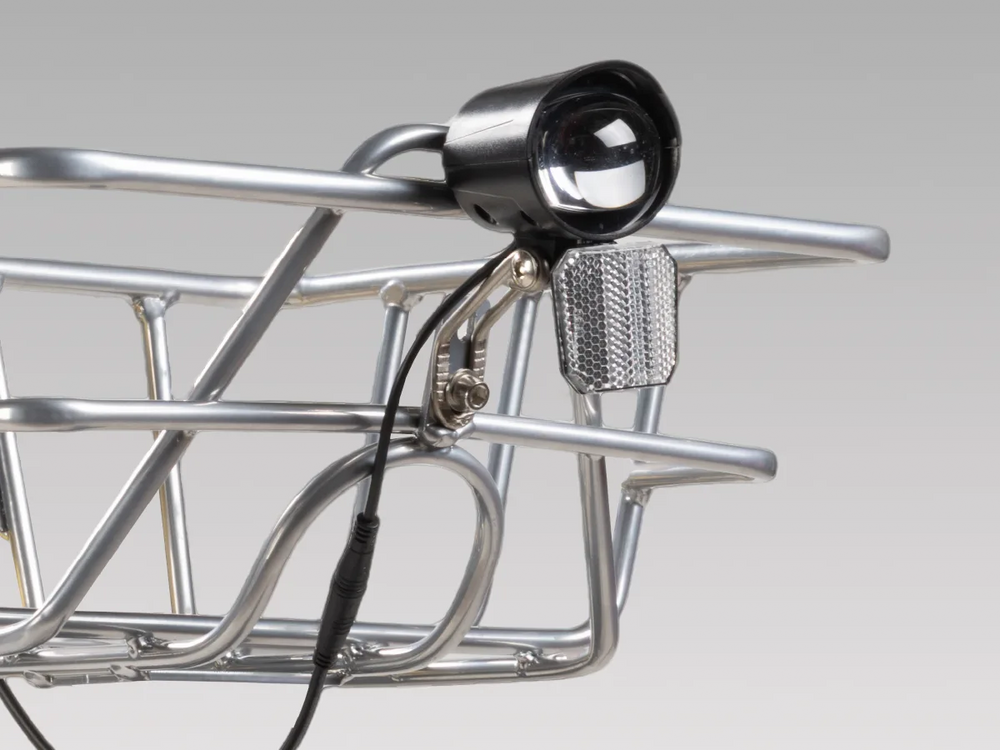

Lights
55 Lux LED Head Light
PERFORMANCE
Default Max Speed
20 mph*The motor will stop giving assist at the stated top speed. This limit is set in accordance with local regulations.
Adjustable Max Speed
28mph
Throttle Range
38 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Pedal Assist Range
Up to 60 miles* Actual performance will vary depending on temperature, road conditions, rider's weight,etc.
Climbing Ability
14°. The actual performance would depend on therider's physical strength.
COMPONENTS
Frame
The full aluminum alloy frame reduces overall weight while maintaining strength, making every ride smoother and more efficient.

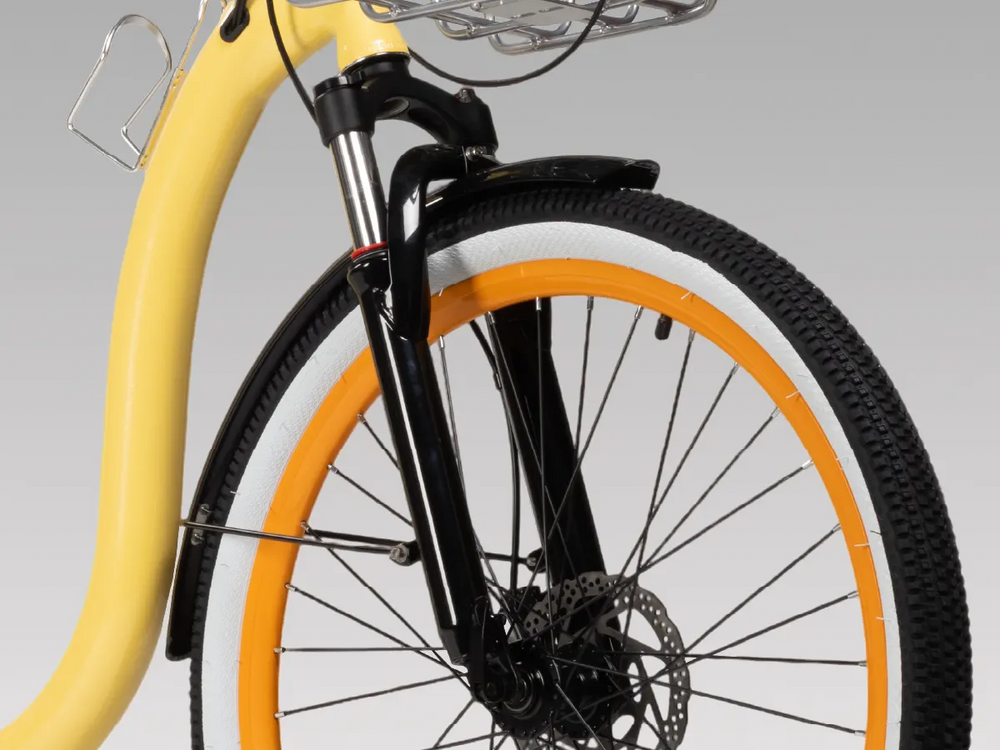

Front Fork
The front fork is also made from aluminum alloy for added strength and durability.
Drivetrain
Shimano TZ500 7-speed drivetrain
Tire
26*2.125

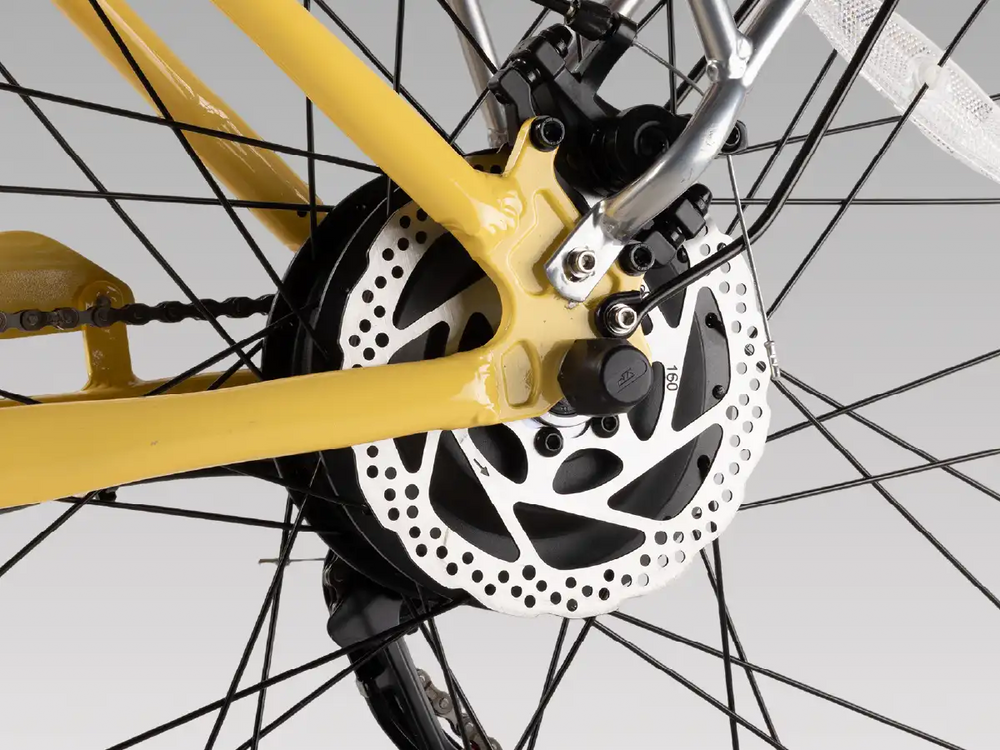

Brake
Disc Brake System
Wheels
26" aluminum alloy wheels.

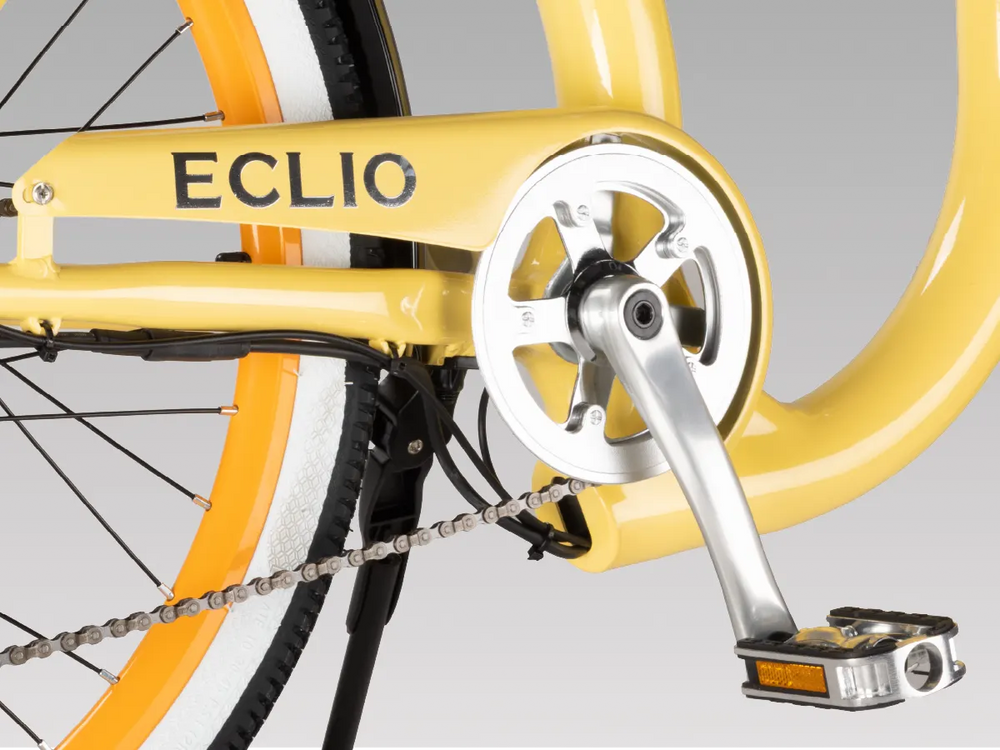

Crankset
38T Crankset
Basket
Silver Steel Front Basket. 33 lbs/ 15kg Capacity
Rear Rack
77 lbs/ 35kg Capacity
Weight
Net weight: 64 lbs/ 29 kg (including battery)
Geometry
SYMBOL
Regular (mm)
A
B
C
D
E
F
G
SYMBOL
Regular (mm)
Handlebar Width
A
620
Reach
B
540
Headtube Height
C
1030
Standover
D
330
Wheelbase
E
1165
Seat Tube
F
460
Seat Height
G
840
