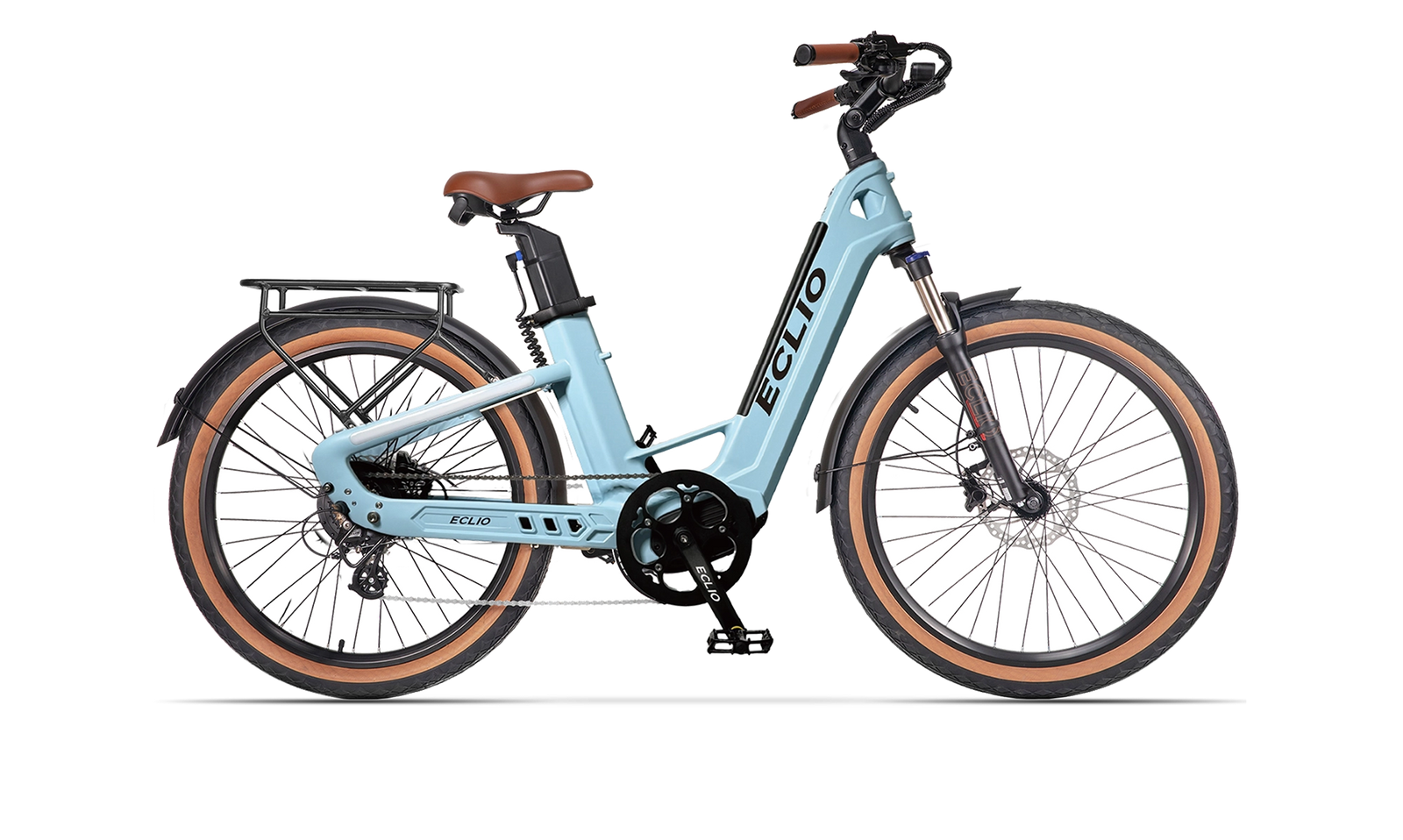

ECLIO Lumeo 2 Carbon Fiber Electric Bike
1000W Peak Motor | 28 MPH Top Speed | Up to 120 Miles | 921WH 48V 19.2Ah Dual Batteries | NFC Smart Unlock
- Lumeo 2 EBike *1
- Product Manual *1
- Charger *1
- Assembly Tools *1
- Bike Pedal Set *1
Note: Please keep the box for at least 30 days in case of return or after-sales service.
All orders will be shipped within 24 hours after purchase. Orders placed during weekends or holidays will be shipped on the next business day. Most customers receive their packages within 3–7 business days. Shipping Policy
In addition, we offer a 30-day worry-free return policy to ensure a more confident and hassle-free shopping experience.
We provide a 2-year warranty service for our products to ensure long-term support and peace of mind after your purchase.
In addition, we highly recommend purchasing shipping insurance and extended product protection coverage. This will give you extra protection during delivery and daily use, making your shopping experience even more worry-free.
We also offer offline test ride services. You can check our store/dealer locations to find a nearby test ride experience.
#LUMEO 2 Carbon Fiber eBike
Why Choose ECLIO
Comfort,versatility & performance all-in-one.
921Wh Dual Battery Long Range
921 Wh dual battery offers extended range for long-range e-bike commuting, delivering reliable power and longer rides for urban riders.
Ride Lighter, Go Further
Ultra-Light Carbon Fiber.
Crafted from ultra-light carbon fiber, this e-bike delivers unmatched agility and acceleration.
The bicycle weighs approximately 50 lbs (about 22.7 kg), excluding the battery.
Smooth, Efficient Power
1000W High-Power Motor
65 Nm torque powers smooth city rides, effortlessly climbing slopes up to 14° for a responsive, comfortable commute.
Feel Every Pedal
Torque Sensor
Delivering smooth, natural e-bike assistance for effortless city commutes and comfortable hill climbs.
Be Seen Anytime
How-to Video
The Eclio Lumeo 2 arrives mostly pre-assembled for quick and easy setup. Make a few adjustments, charge the battery, and you’re ready to ride. For help, refer to the installation video or contact Eclio support.
ELECTRONICS
Motor
1000W Peak Rear Hub Motor (65 Nm Torque)
Sensor
Torque Sensor
Display
2.4' TFT, LCD Display
Battery
Features Dual Battery System, 48V 10Ah *2, 921Wh, IPX5 Lithium-ion Battery.
Controller
48V Controller with 9 MOSFETs
Lights
60 Lux LED Head Light
PERFORMANCE
Default Max Speed
20 mph*The motor will stop giving assist at the stated top speed. This limit is set in accordance with local regulations.
Adjustable Max Speed
28mph
Throttle Range
50 miles* Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Pedal Assist Range
Up to 120 miles* Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability
14°. The actual performance would depend on the rider's physical strength.
COMPONENTS
Frame
Built with a high-performance carbon fiber frame, this e-bike delivers exceptional strength while remaining ultra-lightweight.
Front Fork
The front fork is also made from aluminum alloy for added strength and durability.
Drivetrain
Shimano M310 7-speed drivetrain
Tire
26*2.5
Brake
Hydraulic Disc Brake System
Wheels
26" aluminum alloy wheels.
Crankset
52T Crankset
Rear Rack
77 lbs/ 35kg Capacity
Weight
Net weight: 67 lbs/ 30 kg (including battery)
Geometry
SYMBOL
mm/ inch
A
B
C
D
E
F
G
SYMBOL
mm/ inch
Handlebar Width
A
640/ 25.2''
Reach
B
465/ 18.31"
Overall Height
C
1200/ 47.24"
Standover
D
560/ 22.05"
Wheelbase
E
1150/ 45.28"
Seat Tube
F
416/ 16.38"
Seat Height
G
820-1070/ 32.28"–42.13"
